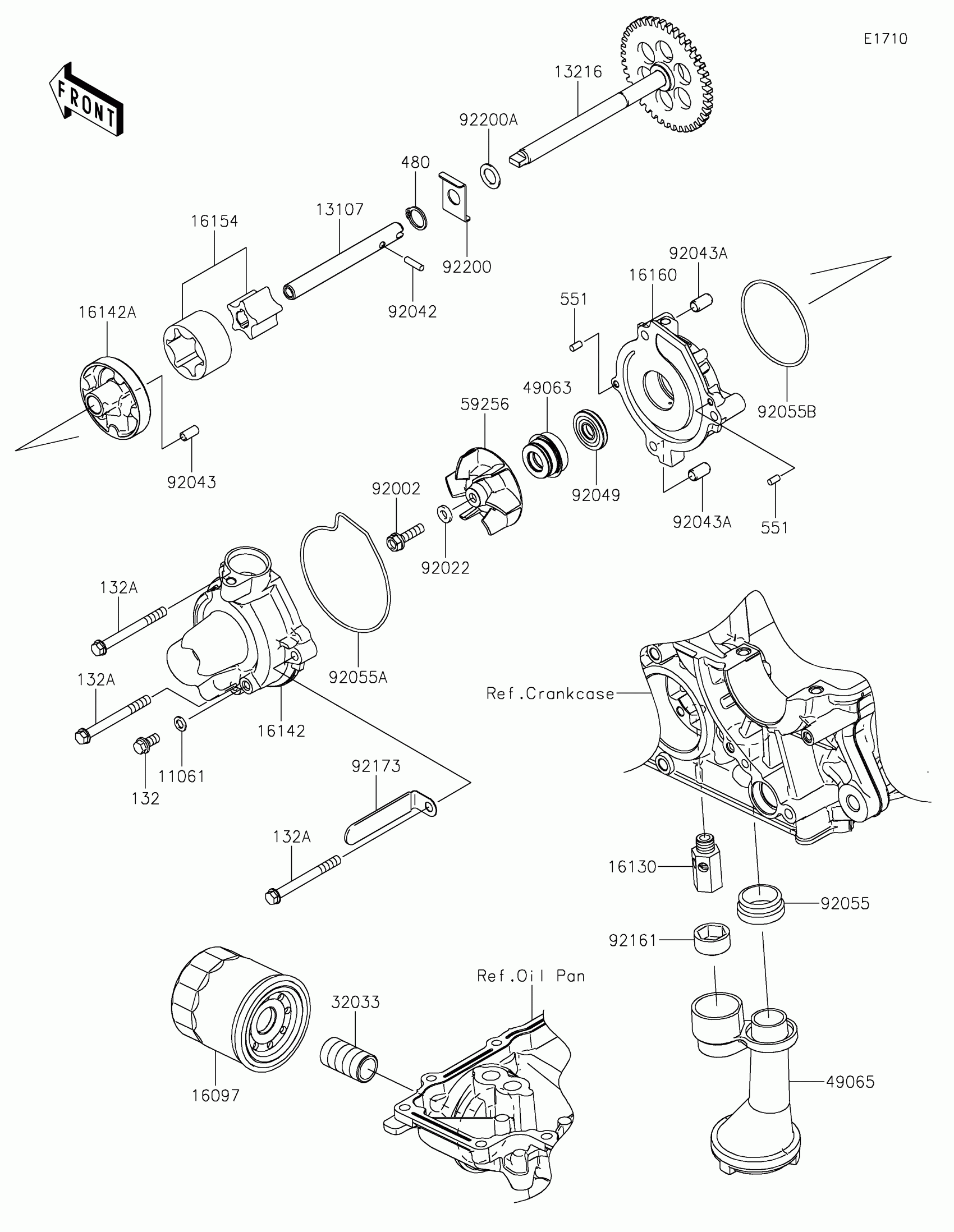

Kawasaki Z900 SE Oil Pump/Oil Filter Diagram
#
Description
Price
11061
GASKET
11061-0107
$2.58
13107
SHAFT
13107-0214
$29.63
13216
GEAR-COMP,OIL PUMP,41T
13216-0020
$119.90
16097
FILTER-ASSY-OIL
16097-0008
$14.50
16130
VALVE-ASSY-RELIEF
16130-0013
$41.98
16142
COVER-PUMP
16142-0746
$122.12
16142A
COVER-PUMP
16142-0764
$47.84
16154
ROTOR-PUMP
16154-0708
$75.55
16160
BODY
16160-0796
$122.35
32033
PIPE,OIL FILTER
32033-1535
$12.96
49063
SEAL-MECHANICAL
49063-1055
$20.06
49065
FILTER-OIL
49065-0026
$31.76
59256
IMPELLER
59256-0555
$42.34
92002
BOLT,6X22
92002-1154
$4.69
92022
WASHER OIL PUMP BANJO
92022-077
$3.99
92042
PIN,DOWEL,4X13.8
92042-030
$3.92
92043
PIN,4.2X6X12
92043-1262
$4.31
92043A
PIN,6.2X8X14
92043-1263
$0.43
92049
SEAL-OIL
92049-0798
$28.98
92055
RING-O,OIL FILTER
92055-1503
$9.51
92055A
RING-O,WATER PUMP COVER
92055-1571
$14.17
92055B
RING-O,59.6X2.4
92055-3018
$6.22
92161
DAMPER
92161-0070
$4.49
92173
CLAMP
92173-1201
$3.74
92200
WASHER
92200-0410
$2.97
92200A
WASHER
92200-1009
$5.07
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
132A
BOLT-FLANGED-SMALL,6X60
132BC0660
$2.97
480
CIRCLIP-TYPE-C,11MM
480J1100
$1.24
551
PIN-DOWEL,4X8
551A0408
$0.78
