2022 Kawasaki Z900 SE Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2022 Kawasaki Z900 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

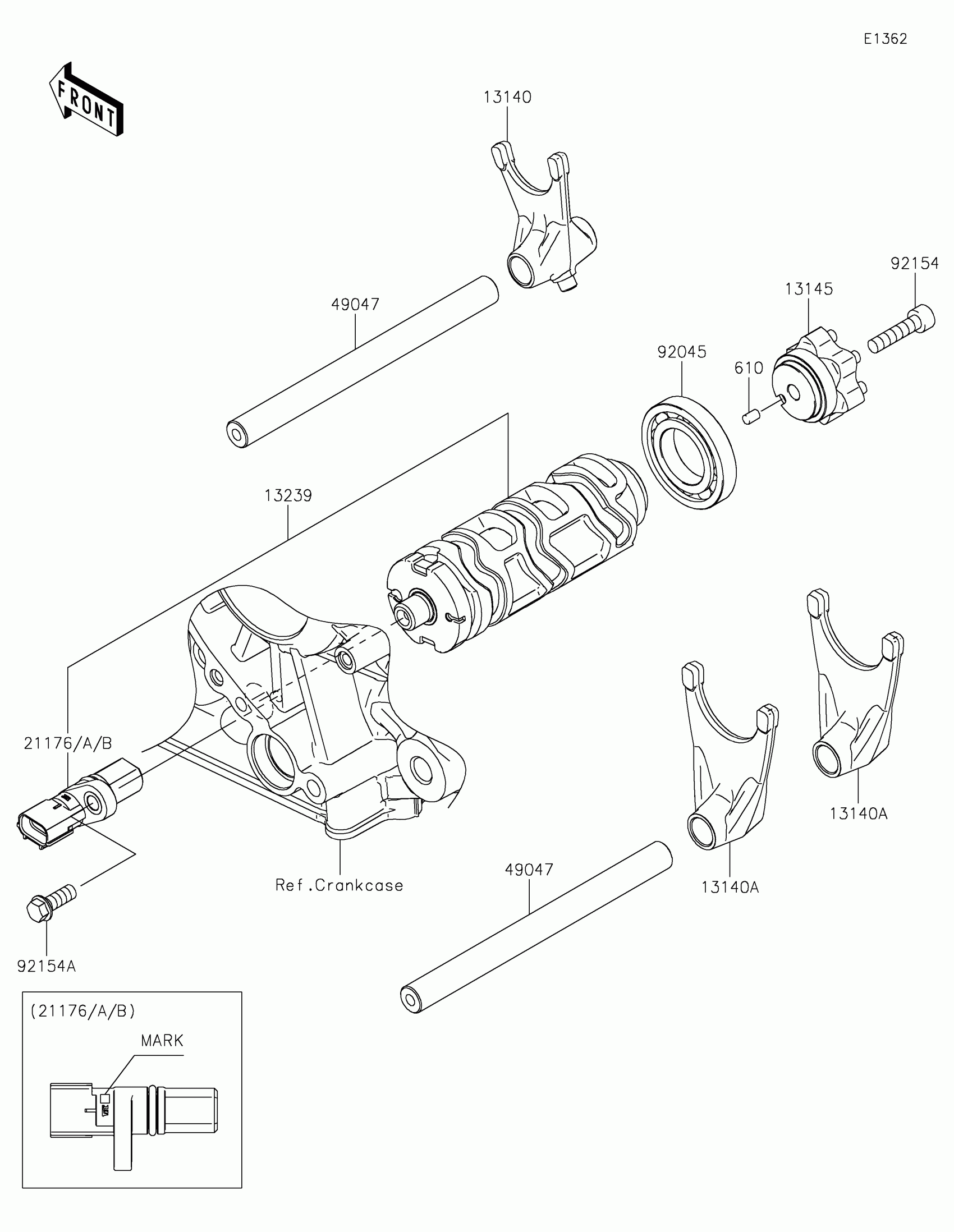

2022 Kawasaki Z900 SE Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT

13140-0061

1
Out of stock

13140A

FORK-SHIFT

13140-0062

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0568

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-0581

1
Out of stock

21176

SENSOR,GEAR POSITION,M MARK

21176-0825

1
Out of stock

21176A

SENSOR,GEAR POSITION,H MARK

21176-0845

1
Out of stock

21176B

SENSOR,GEAR POSITION,L MARK

21176-0846

1
Out of stock

49047

ROD-SHIFT

49047-0644

1
Out of stock

92045

BEARING-BALL,16005

92045-1045

1
Out of stock

92154

BOLT,SOCKET,6X25

92154-0477

1
Out of stock

92154A

BOLT,FLANGED,6X16

92154-2096

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock
