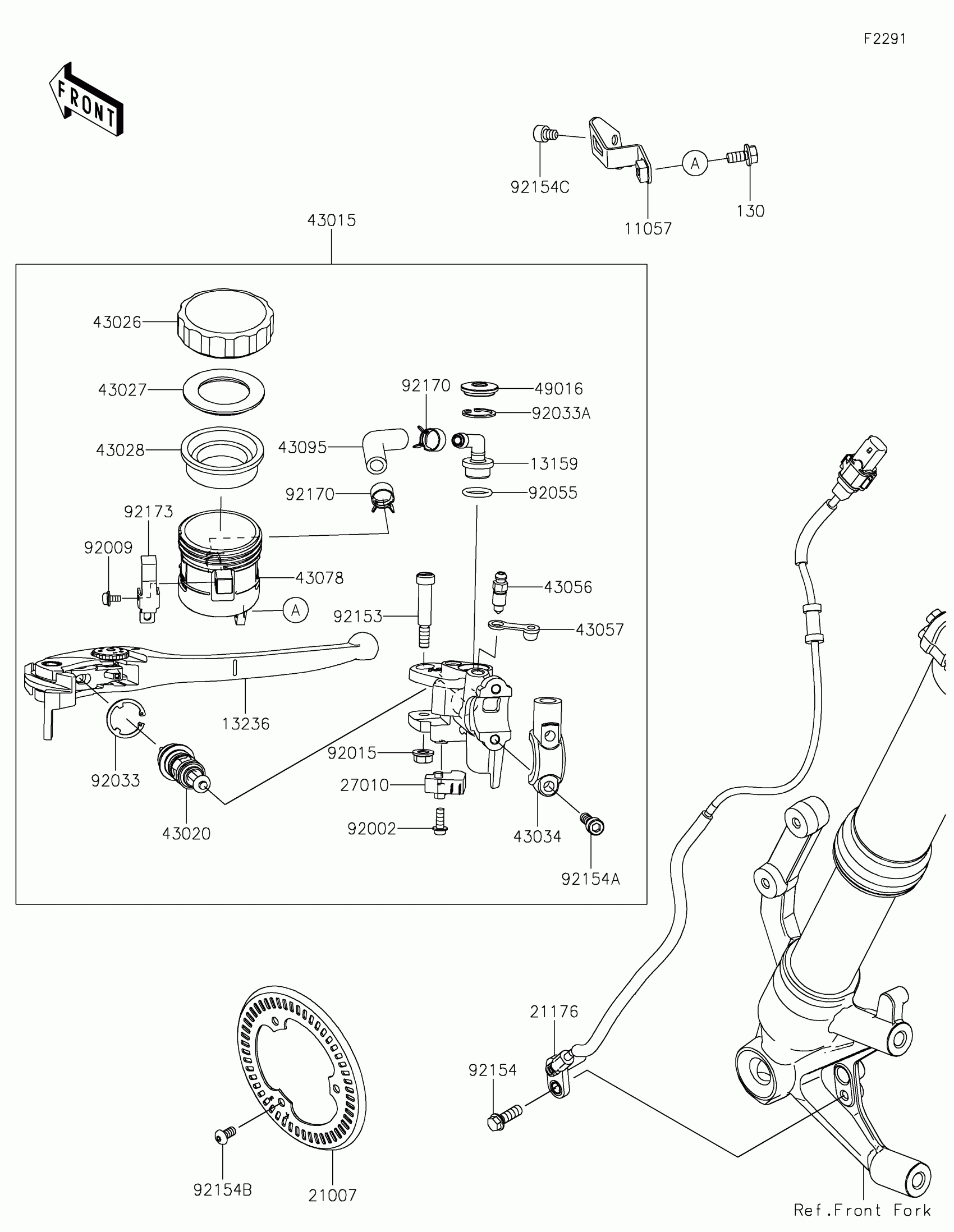

Kawasaki Z900 SE Front Master Cylinder Diagram
#
Description
Price
11057
BRACKET,MASTER CYLINDER
11057-4128
$8.19
13159
CONNECTOR
13159-1061
$12.96
13236
LEVER-COMP,FRONT BRAKE
13236-0139
$71.47
21007
ROTOR,SENSOR,FR
21007-0671
$89.81
21176
SENSOR,SPEED,FR
21176-0973
$129.35
27010
SWITCH,BRAKE
27010-0762
$35.04
43015
CYLINDER-ASSY-MASTER,FR
43015-0769
$488.89
43020
PISTON-COMP-BRAKE
43020-0028
$65.94
43026
CAP-BRAKE
43026-1051
$34.20
43027
PLATE-DIAPHRAGM
43027-1051
$5.32
43028
DIAPHRAGM,MASTER CYLINDER
43028-1057
$19.09
43034
HOLDER-BRAKE,MASTER CYLINDER
43034-0057
$23.99
43056
BREATHER-BRAKE
43056-1056
$14.30
43057
CAP-BREATHER
43057-1001
$4.91
43078
RESERVOIR
43078-0591
$30.88
43095
HOSE-BRAKE
43095-1753
$7.53
49016
COVER-SEAL
49016-1147
$6.29
92002
BOLT,SCREW,4X12
92002-1323
$3.92
92009
SCREW
92009-1570
$3.09
92015
NUT,FLANGED,6MM
92015-1528
$5.52
92033
RING-SNAP
92033-0034
$4.55
92033A
RING-SNAP,20.5MM
92033-1186
$4.96
92055
RING-O,14.8X2.4
92055-0741
$3.71
92153
BOLT,LEVER
92153-0868
$7.83
92154
BOLT,FLANGED,6X18
92154-0784
$2.67
92154A
BOLT,SOCKET,6X22
92154-1271
$3.26
92154B
BOLT,SOCKET,5X10
92154-2801
$0.90
92154C
BOLT,SOCKET,6X8
92154-2914
$2.17
92170
CLAMP,HOSE
92170-1091
$5.00
92173
CLAMP
92173-1790
$11.55
130
BOLT-FLANGED,6X12
130BA0612
$1.72
