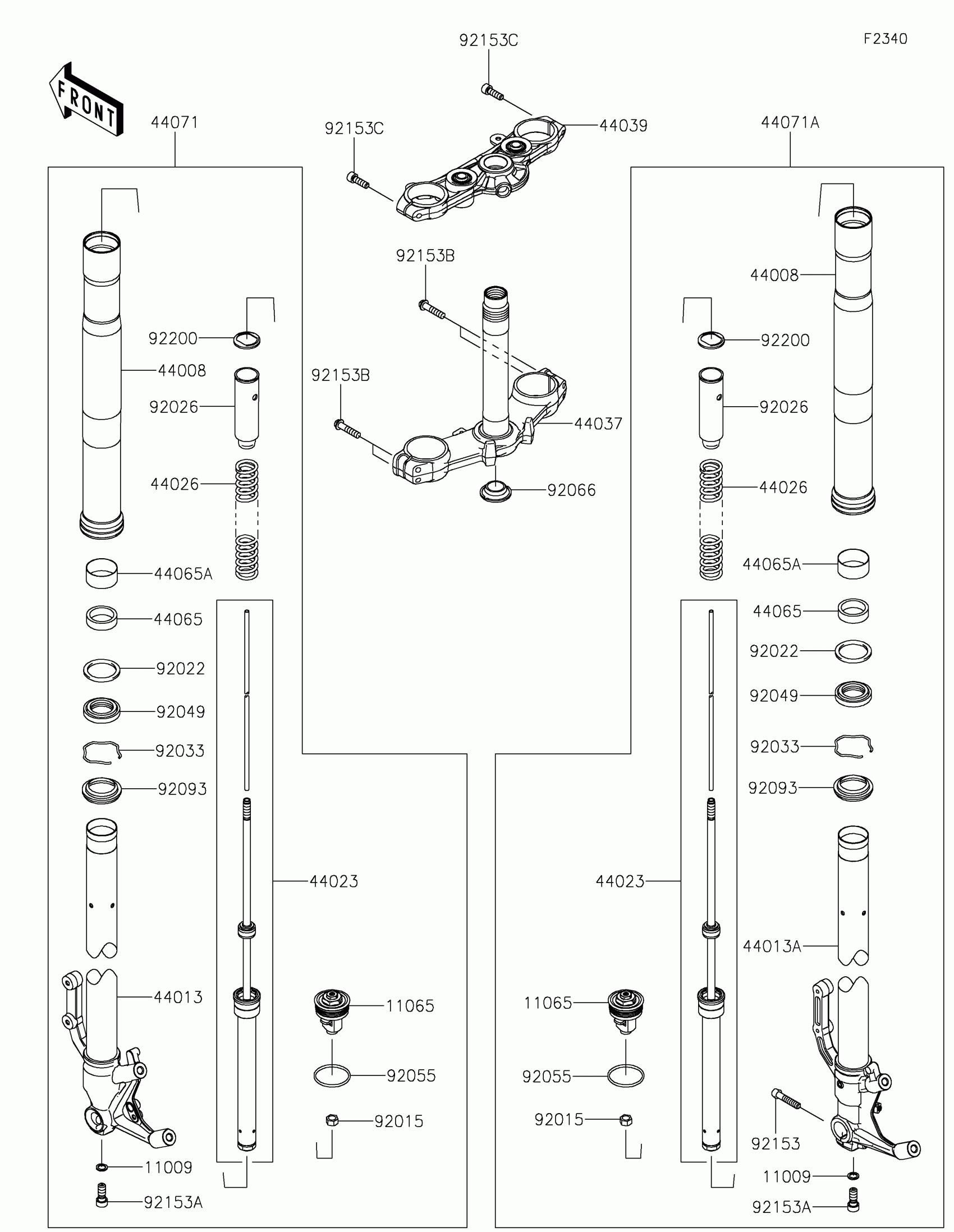

Kawasaki Z900 SE Front Fork Diagram
#
Description
Price
11009
GASKET,10.5X15X1.5
11009-1325
Unavailable
11065
CAP,FORK
11065-1390
$153.81
44008
PIPE-FORK OUTER
44008-0101
$471.45
44013
PIPE-FORK INNER,LH
44013-0356
$472.09
44013A
PIPE-FORK INNER,RH
44013-0357
$472.09
44023
CYLINDER-SET-FORK
44023-0179
$444.85
44026
SPRING-FRONT FORK
44026-0275
$91.35
44037
HOLDER-FORK UNDER,F.S.BLACK
44037-0167-18R
$571.25
44039
HOLDER-FORK UPPER,F.S.BLACK
44039-0167-18R
$321.19
44065
BUSHING-FRONT FORK
44065-0042
$21.01
44065A
BUSHING-FRONT FORK,INNER PIPE
44065-1114
$21.57
44071
DAMPER-ASSY,FORK,LH
44071-1431
$966.26
44071A
DAMPER-ASSY,FORK,RH
44071-1432
$966.26
92015
NUT
92015-1795
$5.52
92022
WASHER,FORK OUTER TUBE
92022-1298
$8.58
92026
SPACER,FORK
92026-0045
$14.02
92033
RING-SNAP
92033-1036
$6.51
92049
SEAL-OIL
92049-0073
$22.70
92055
RING-O
92055-0145
$2.55
92066
PLUG
92066-0032
$11.66
92093
SEAL,FORK OUTER TUBE
92093-1472
$23.76
92153
BOLT,SOCKET,8X40
92153-0506
$7.57
92153A
BOLT,SOCKET,10X25
92153-0548
$5.57
92153B
BOLT,FLANGED,8X35
92153-0649
$3.54
92154
BOLT,SOCKET,8X25
92154-4300
$4.65
92200
WASHER
92200-0085
$7.63
