Description

Price

13042

WEIGHT

13042-0790

$40.04

32085

STOPPER

32085-0801

$0.90

34028

STEP,RUBBER

34028-0349

$22.74

34028A

STEP,FR,LH

34028-0352

$41.53

34028B

STEP,FR,RH

34028-0353

$41.53

34028C

STEP,RR,LH

34028-0380

$79.46

34028D

STEP,RR,RH

34028-0381

$79.46

92043

PIN,12X42.5

92043-1594

$6.00

92043A

PIN,6X40

92043-1595

$2.34

92145

SPRING,STEP RETURN,LH

92145-0360

$3.87

92145A

SPRING

92145-1319

$1.81

92150

BOLT,BANK SENSOR

92150-1114

$11.39

92150A

BOLT,SOCKET,5X25

92150-1684

$3.98

92152

COLLAR

92152-2596

$2.58

92161

DAMPER,8X16X8

92161-2082

$2.70

92200

WASHER,16X26X2.3

92200-0043

$7.65

92200A

WASHER,5.3X11X1

92200-1929

$1.17

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

482A

CIRCLIP-TYPE-E

482EA5000

$1.34

600

BALL-STEEL,1/4

600A0800

$0.62

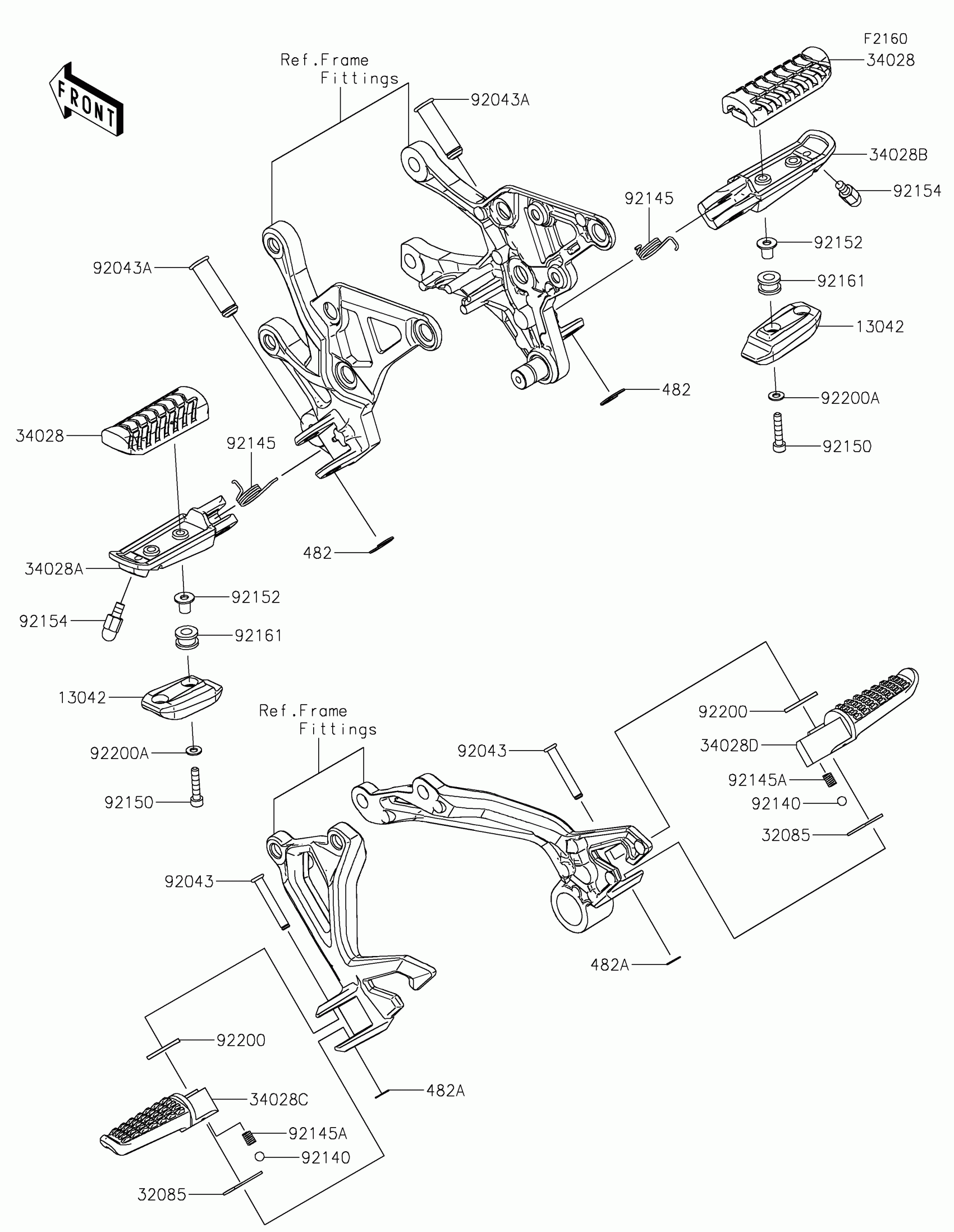

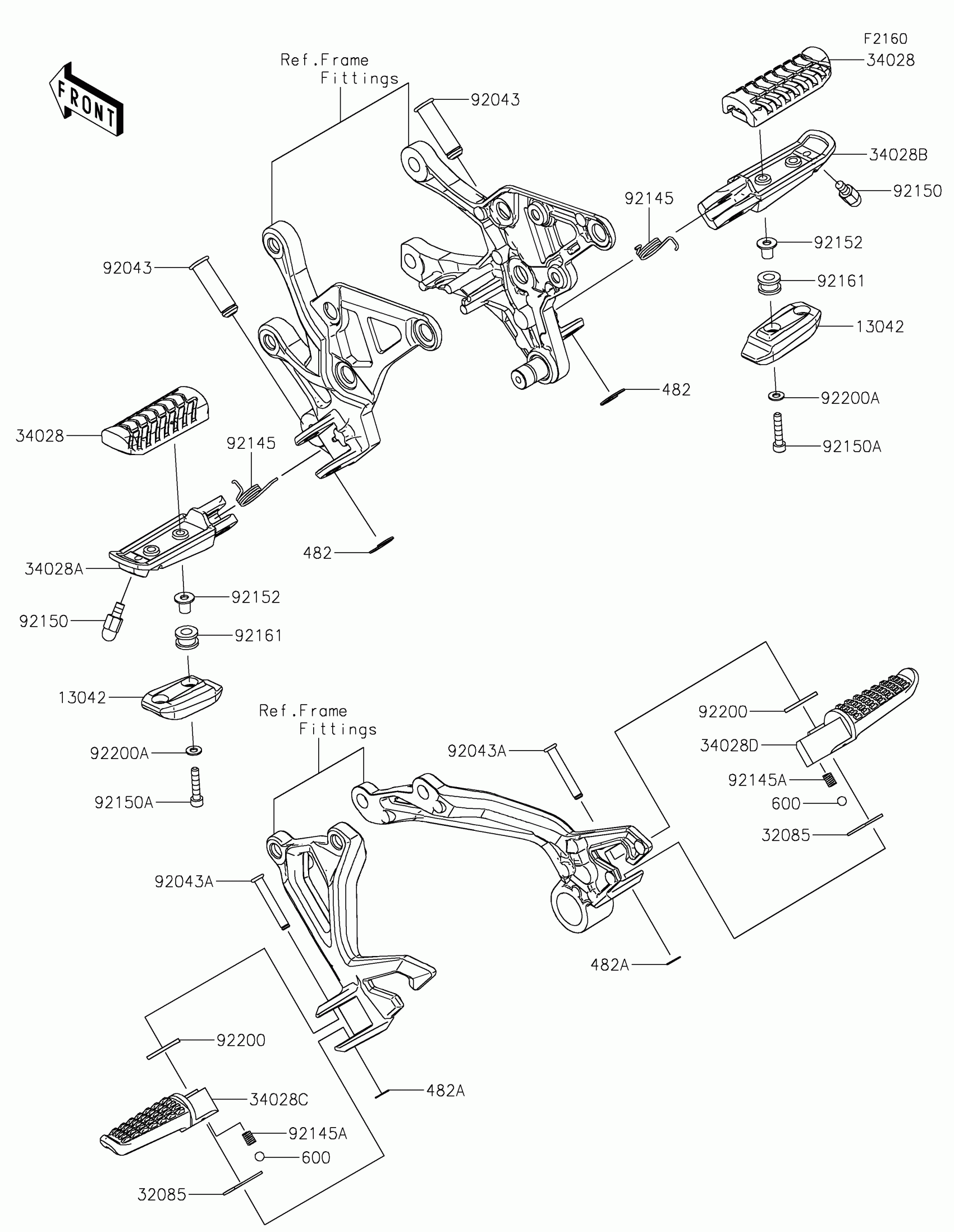

Kawasaki Z900 SE Footrests Diagram
