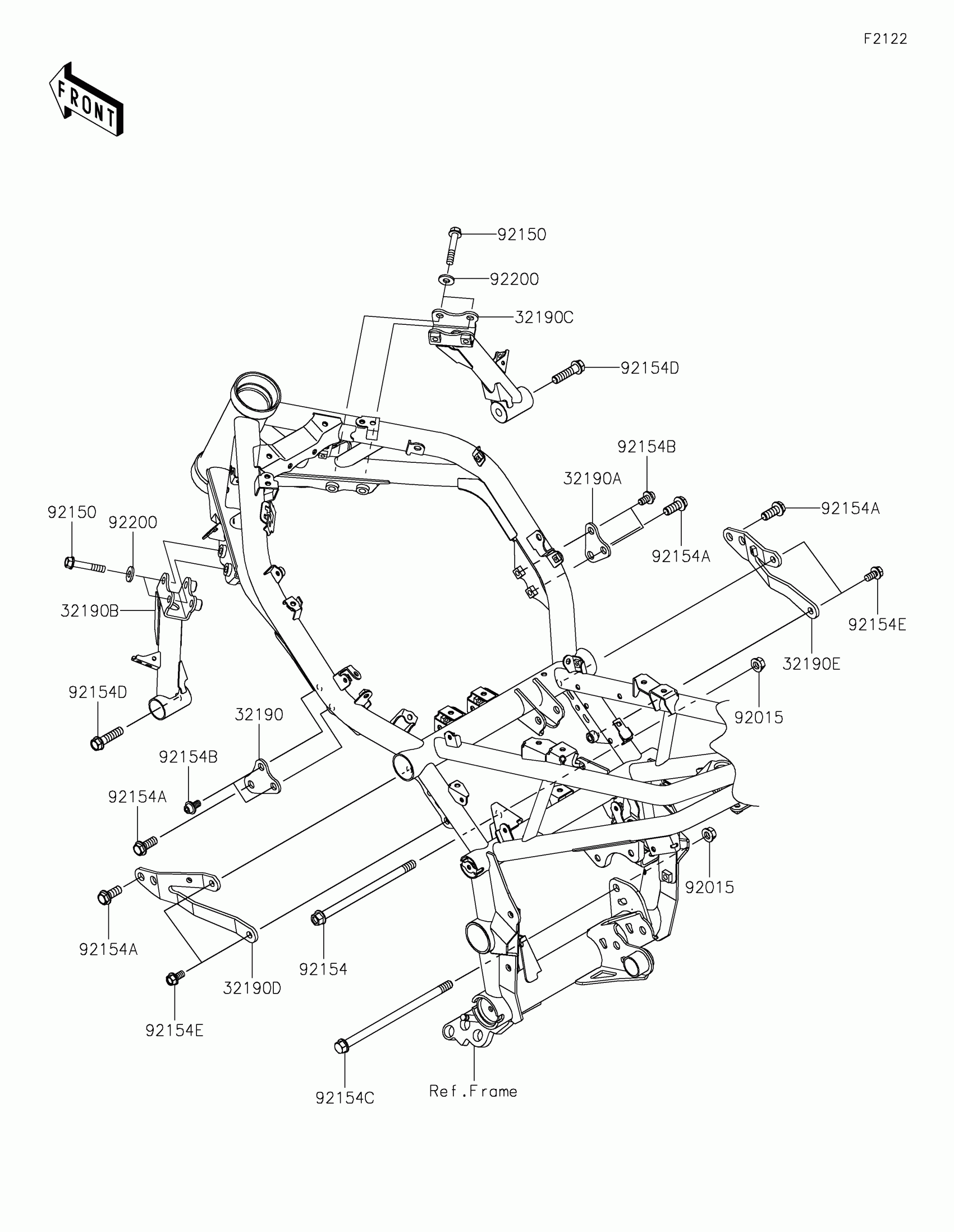

Kawasaki Z900 SE Engine Mount Diagram

Description

Price

32190

BRACKET-ENGINE,HEAD,LH,F.S.BLK

32190-0759-18R

$5.88

32190A

BRACKET-ENGINE,HEAD,RH,F.S.BLK

32190-0760-18R

$5.88

32190B

BRACKET-ENGINE,LH,F.S.BLACK

32190-0831-18R

$74.29

32190C

BRACKET-ENGINE,RH,F.S.BLACK

32190-0832-18R

$68.20

32190D

BRACKET-ENGINE,CYL.,LH

32190-0843

$27.22

32190E

BRACKET-ENGINE,CYL.,RH

32190-0844

$27.22

92015

NUT,FLANGED,10MM

92015-1180

$4.31

92150

BOLT,FLANGED,8X45

92150-1487

$6.57

92153

BOLT,FLANGED,10X170

92153-1428

$12.98

92154

BOLT,SOCKET,8X14

92154-2745

$3.21

92154A

BOLT,FLANGED,10X25

92154-2747

$6.38

92154B

BOLT,FLANGED,10X195

92154-4070

$13.60

92154C

BOLT,FLANGED,10X40

92154-4122

$5.79

92200

WASHER,8.5X18X2.3

92200-1213

$2.64

130

BOLT-FLANGED,8X16

130CA0816

$2.49
