2022 Kawasaki Z900 Se Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2022 Kawasaki Z900 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

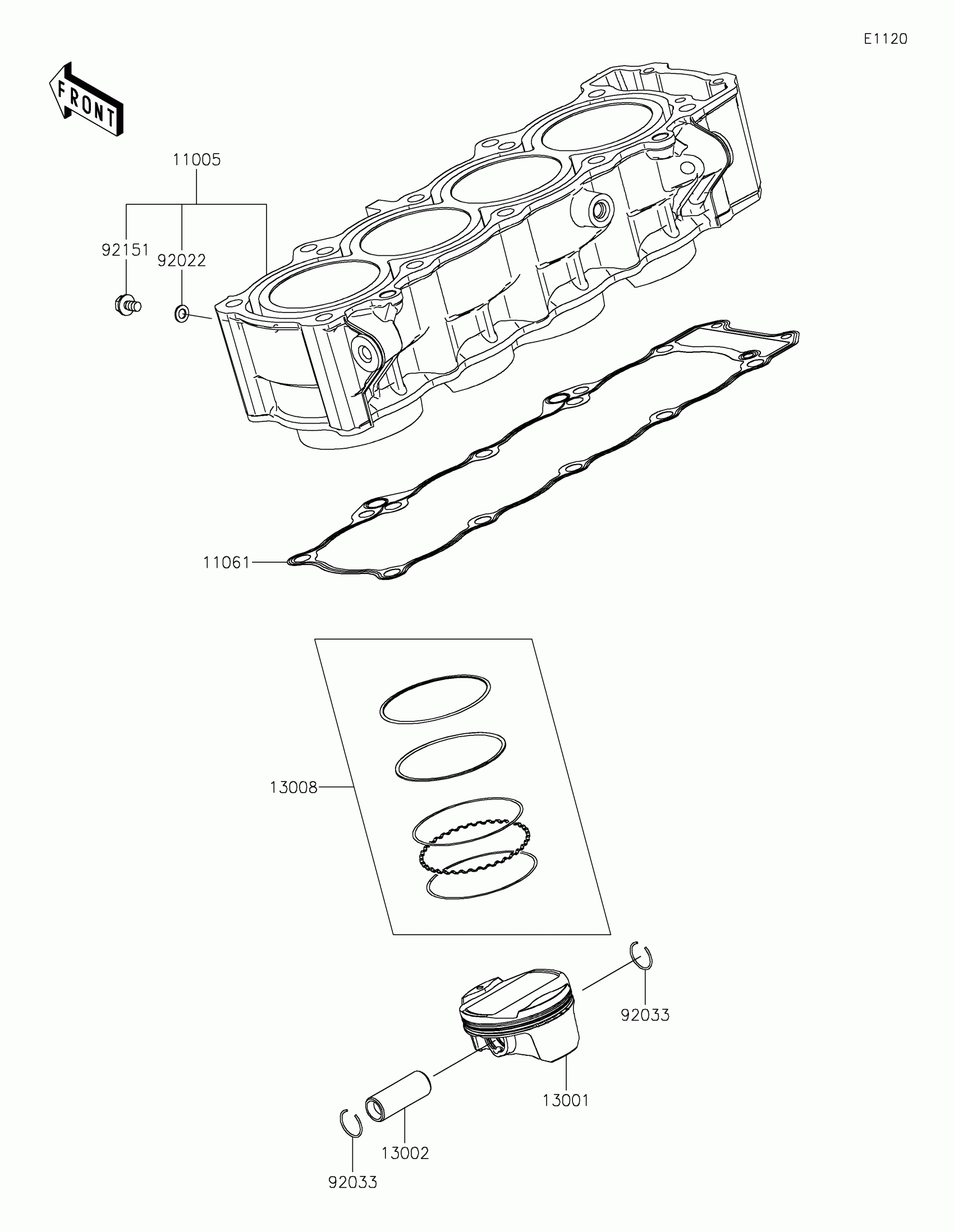

2022 Kawasaki Z900 Se Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-0672

1

$1,673.07

In stock

11061

1

$35.46

In stock

13001

PISTON-ENGINE

13001-0788

1

$106.84

In stock

13002

PIN-PISTON

13002-0004

1

$27.28

In stock

13008

RING-SET-PISTON

13008-0571

1

$66.61

In stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92033

RING-SNAP

92033-1054

1

$2.03

In stock

92151

BOLT,6X10

92151-1344

1

$2.03

In stock
