Description

Price

13272

PLATE,BREATHER,UPP

13272-0698

$9.29

13272A

PLATE,BREATHER,SIDE

13272-0699

$3.59

14001

SET-CRANKCASE

14001-0725

$1,909.18

14013

RING-POSITION

14013-1051

$3.03

14014

PLATE-POSITION

14014-0036

$5.19

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

39193

PIPE-OIL

39193-0054

$51.94

92005

FITTING,BREATHER

92005-1238

$10.85

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92043A

PIN,8.2X10X14

92043-1264

$0.51

92043B

PIN,6X16

92043-1690

$3.81

92046

BEARING-NEEDLE,HK1412FM

92046-0043

$12.99

92049

SEAL-OIL,TC32578

92049-1474

$13.91

92049A

SEAL-OIL,TC14245

92049-1520

$10.54

92055

RING-O,5.5X1.5

92055-1339

$3.85

92062

NOZZLE,OIL JET

92062-0040

$10.22

92062A

NOZZLE

92062-0046

$4.61

92066

PLUG

92066-0836

$4.32

92150

BOLT,SOCKET,5X20

92150-1019

$3.61

92154

BOLT,TORX,5X12

92154-0299

$1.73

92154A

BOLT,SOCKET,6X16

92154-0484

$1.44

92154B

BOLT,FLANGED,6X10

92154-1887

$1.98

670

O RING

670D1505

$3.29

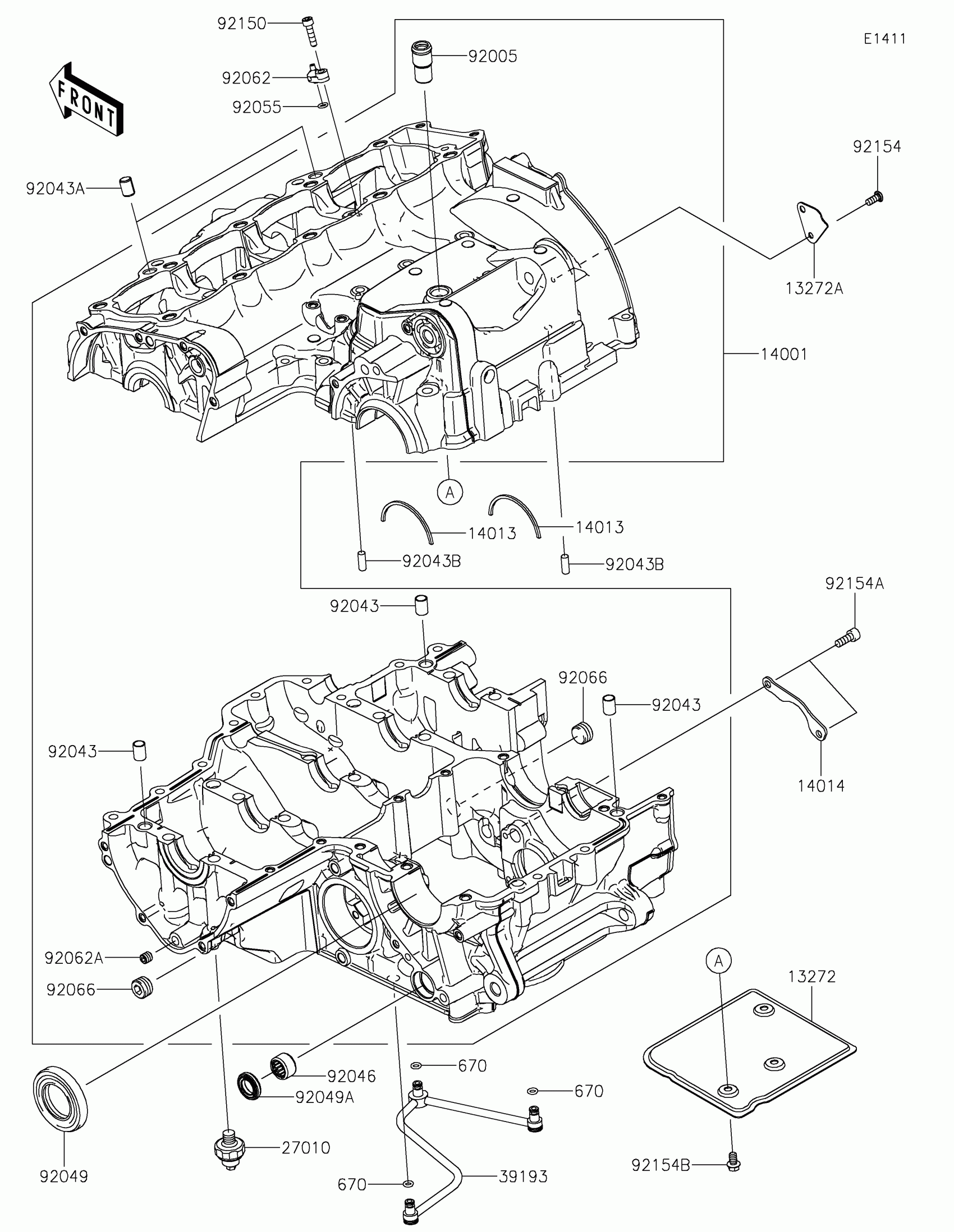

Kawasaki Z900 SE Crankcase Diagram
