Description

Price

16082

PUMP-ASSY-OIL,ABS

16082-0844

$1,227.69

23062

BRACKET-COMP,ABS UNIT

23062-1235

$5.57

23062A

BRACKET-COMP,FR FENDER

23062-1369

$11.40

43095

HOSE-BRAKE,FR M/C-ABS UNIT

43095-1736

$341.66

43095A

HOSE-BRAKE,FR,485MM

43095-1739

$168.84

43095B

HOSE-BRAKE,FR CALIPER-ABS UNIT

43095-1793

$425.53

43095C

HOSE-BRAKE,FR CALIPER-ABS UNIT

43095-1947

$425.53

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92075

DAMPER

92075-277

$2.84

92153

BOLT,OIL,L=23

92153-0627

$5.48

92154

BOLT,BANJO,10X22

92154-1138

$7.40

92154A

BOLT,FLANGED,6X25

92154-2154

$3.02

92154B

BOLT-SOCKET,6X12

92154-2688

$2.49

92154C

BOLT,BANJO,10X19

92154-4032

$45.34

92154D

BOLT,FLANGED,6X12

92154-4121

$1.94

92154E

BOLT,BANJO,10X31.5

92154-4137

$72.34

92154F

BOLT,SOCKET,6X10

92154-4298

$1.63

92171

CLAMP

92171-0818

$4.41

92173

CLAMP

92173-2106

$2.80

92173A

CLAMP

92173-2301

$1.36

130

BOLT-FLANGED,6X22

130BA0622

$1.29

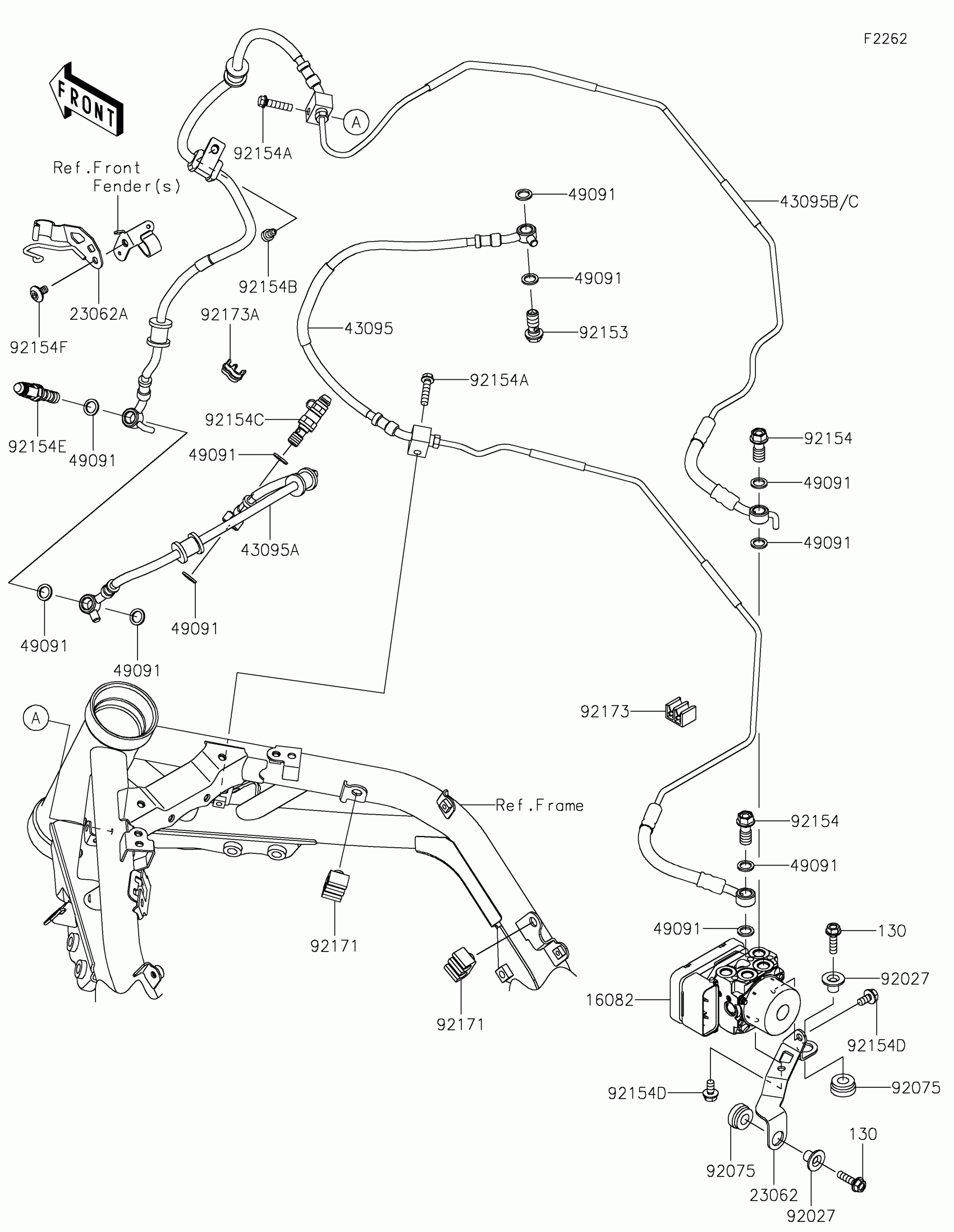

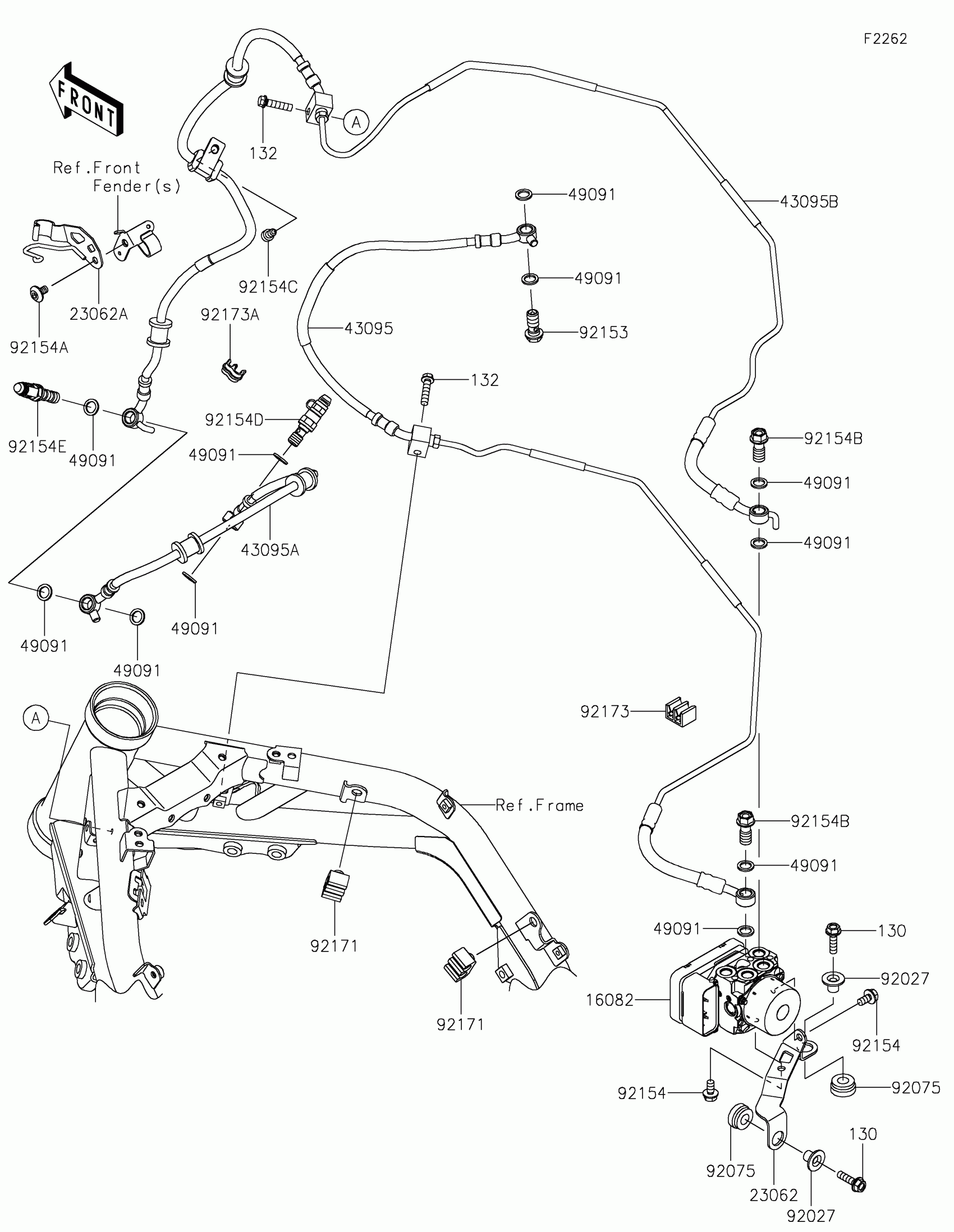

Kawasaki Z900 SE Brake Piping Diagram

PUMP-ASSY-OIL,ABS

BRACKET-COMP,ABS UNIT

BRACKET-COMP,FR FENDER

HOSE-BRAKE,FR M/C-ABS UNIT

HOSE-BRAKE,FR,485MM

HOSE-BRAKE,FR CALIPER-ABS UNIT

HOSE-BRAKE,FR CALIPER-ABS UNIT

WASHER-SEAL,10.1X14.5X1.5

COLLAR,FLANGED,L=12.1,BLACK

DAMPER

BOLT,OIL,L=23

BOLT,BANJO,10X22

BOLT,FLANGED,6X25

BOLT-SOCKET,6X12

BOLT,BANJO,10X19

BOLT,FLANGED,6X12

BOLT,BANJO,10X31.5

BOLT,SOCKET,6X10

CLAMP

CLAMP

CLAMP

BOLT-FLANGED,6X22
