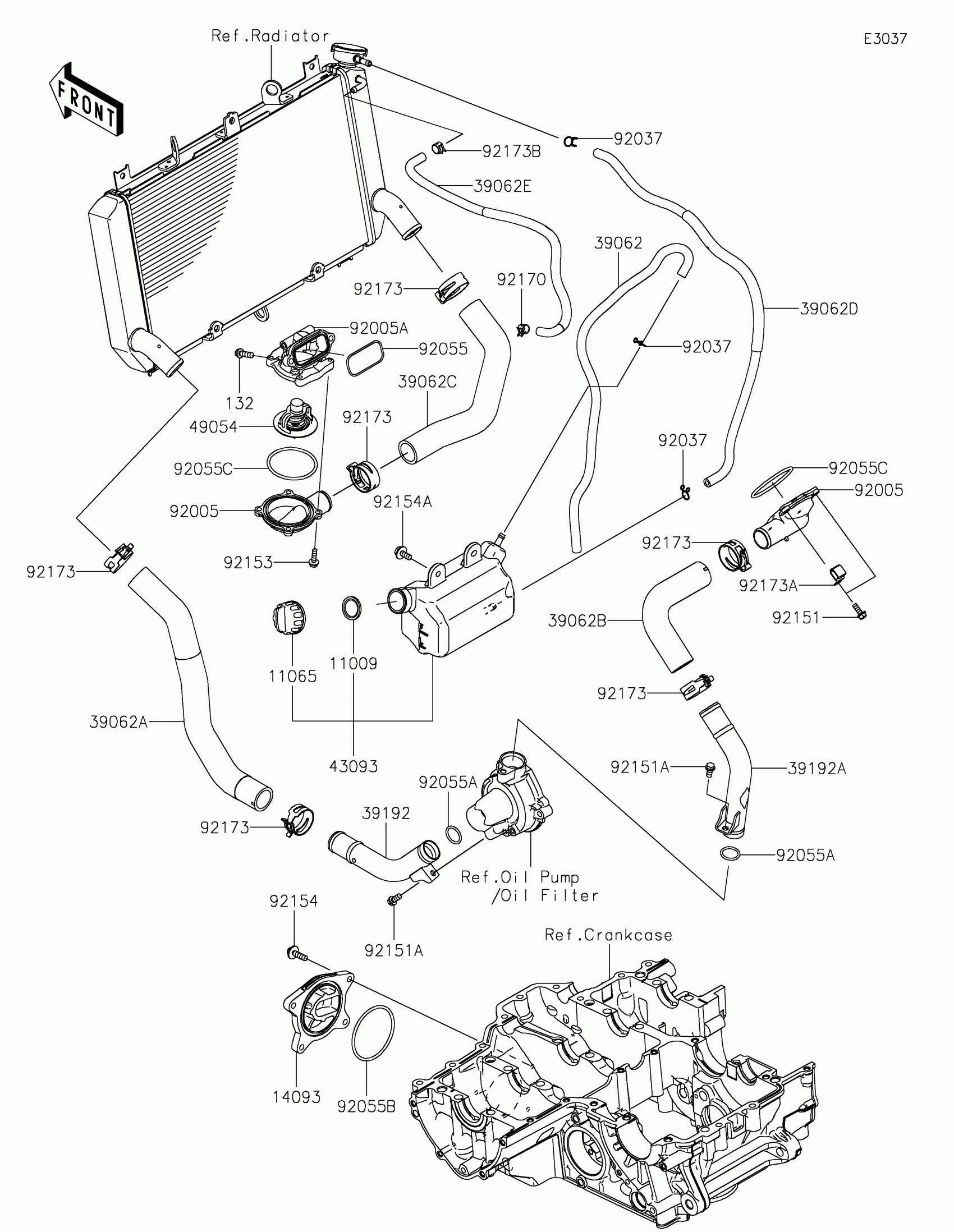

Kawasaki Z900 SE ABS Water Pipe Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11065

CAP

11065-0980

$2.78

14093

COVER

14093-0144

$40.56

39062

HOSE-COOLING,OVERFLOW

39062-0618

$10.39

39062A

HOSE-COOLING,RADIATOR-W/PIPE

39062-0758

$49.50

39062B

HOSE-COOLING,W/PIPE-CYLINDER

39062-0785

$16.53

39062C

HOSE-COOLING,CYLINDER-RADIATOR

39062-0786

$28.82

39062D

HOSE-COOLING,RETURN

39062-1979

$19.78

39062E

HOSE-COOLING,AIR BLEED

39062-1990

$17.10

39192

PIPE-WATER,RADIATOR-WATER PUMP

39192-0631

$43.96

39192A

PIPE-WATER,WATER PUMP-CYLINDER

39192-0644

$30.11

43093

RESERVOIR-ASSY-TANK

43093-0006

$47.89

49054

THERMOSTAT

49054-0004

$51.97

92005

FITTING,THERMO CAP

92005-0842

$81.17

92005A

FITTING,THERMO CASE

92005-0846

$29.93

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O,YP 27.6 57.6 1.9

92055-0021

$2.84

92055A

RING-O,20.8X2.4

92055-0114

$2.98

92055B

RING-O,63.3MM

92055-0739

$3.13

92055C

RING-O,53.5X2.6

92055-0831

$5.99

92151

BOLT,5X14

92151-1764

$2.00

92151A

BOLT,6X12

92151-1997

$1.36

92153

BOLT,FLANGED,5X18

92153-1588

$1.20

92154

BOLT,FLANGED,6X22

92154-0403

$2.68

92154A

BOLT,UPSET-WP,6X16

92154-1850

$1.53

92170

CLAMP

92170-1493

$3.81

92173

CLAMP,34MM

92173-1360

$3.03

92173A

CLAMP

92173-1663

$5.56

92173B

CLAMP,TUBE

92173-2456

$4.24

132

BOLT-FLANGED-SMALL,6X20

132BC0620

$0.90
