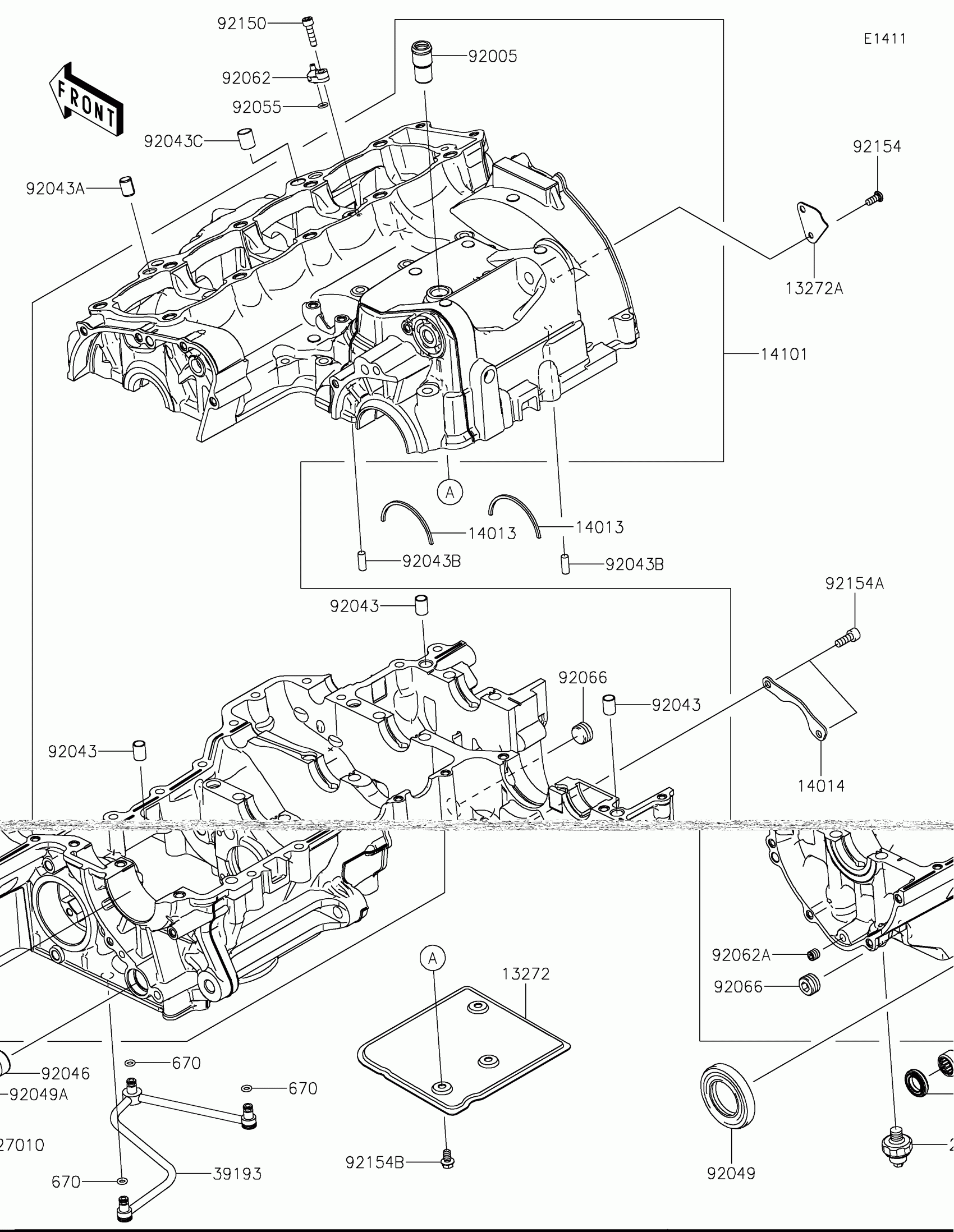

Find the part on the Crankcase diagram for your 2025 Kawasaki Z900 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Z900 Se ABS Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE,BREATHER,UPP

13272-0698

1

$9.29

In stock

13272A

PLATE,BREATHER,SIDE

13272-0699

1

$3.59

In stock

14013

RING-POSITION

14013-1051

1
Out of stock

14014

PLATE-POSITION

14014-0036

1
Out of stock

14101

SET-CRANKCASE

14101-0061

1

$1,830.84

In stock

27010

SWITCH,OIL PRESSURE

27010-1313

1

$36.57

In stock

39193

PIPE-OIL

39193-0054

1

$51.94

In stock

92005

FITTING,BREATHER

92005-1238

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

92043A

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92043B

PIN,6X16

92043-1690

1

$3.97

In stock

92043C

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92046

1

$13.53

In stock

92049

SEAL-OIL,TC32578

92049-1474

1
Out of stock

92049A

SEAL-OIL,TC14245

92049-1520

1
Out of stock

92055

RING-O,5.5X1.5

92055-1339

1

$3.85

In stock

92062

NOZZLE,OIL JET

92062-0040

1

$10.22

In stock

92062A

NOZZLE

92062-0046

1

$4.61

In stock

92066

PLUG

92066-0836

1

$4.32

In stock

92150

BOLT,SOCKET,5X20

92150-1019

1

$3.61

In stock

92154

BOLT,TORX,5X12

92154-0299

1

$1.73

In stock

92154A

BOLT,SOCKET,6X16

92154-0484

1

$1.44

In stock

92154B

BOLT,FLANGED,6X10

92154-1887

1

$2.29

In stock

670

O RING

670D1505

1

$3.43

In stock
