2025 Kawasaki Z900 Se ABS Shroud Diagram

← All diagrams

Find the part on the Shroud diagram for your 2025 Kawasaki Z900 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

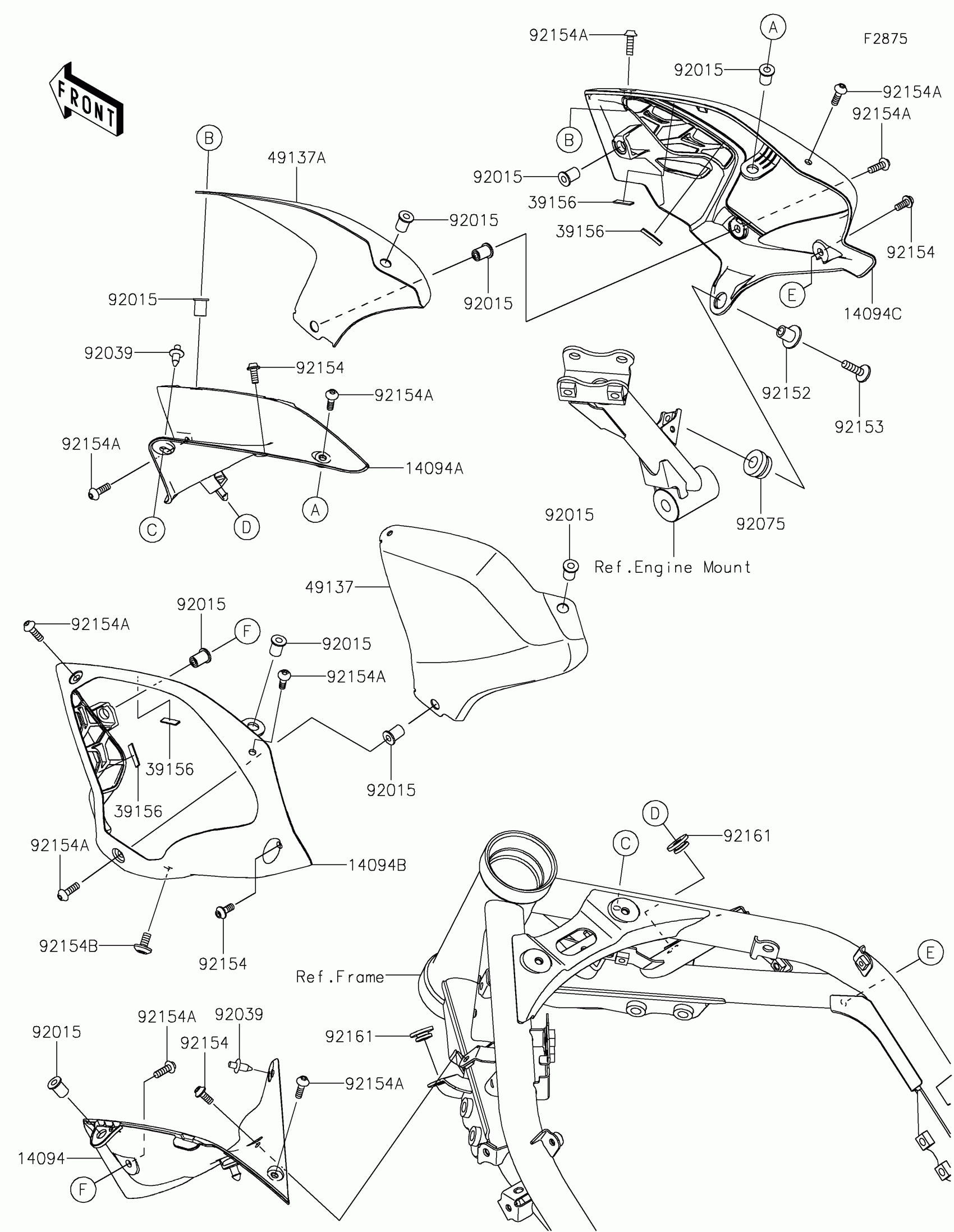

2025 Kawasaki Z900 Se ABS Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14094

COVER,RADIATOR,LH

14094-0120

1

$30.58

In stock

14094A

COVER,RADIATOR,RH

14094-0121

1

$30.58

In stock

14094B

COVER,SHROUD,LH

14094-0423

1

$36.14

In stock

14094C

COVER,SHROUD,RH

14094-0424

1
Out of stock

39156

PAD,20X5X1

39156-2958

1

$0.46

In stock

49137

SHROUD,LH

49137-0001

1

$278.28

In stock

49137A

SHROUD,RH

49137-0002

1

$278.28

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92039

RIVET

92039-0068

1

$2.42

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92152

COLLAR

92152-0667

1

$5.87

In stock

92153

BOLT,SOCKET,6X22

92153-0574

1
Out of stock

92154

BOLT,SOCKET,5X12

92154-0917

1

$3.74

In stock

92154A

BOLT,SOCKET,5X16

92154-1701

1

$1.10

In stock

92154B

BOLT,SOCKET,6X12

92154-4310

1

$1.36

In stock

92161

DAMPER

92161-1810

1

$1.10

In stock
