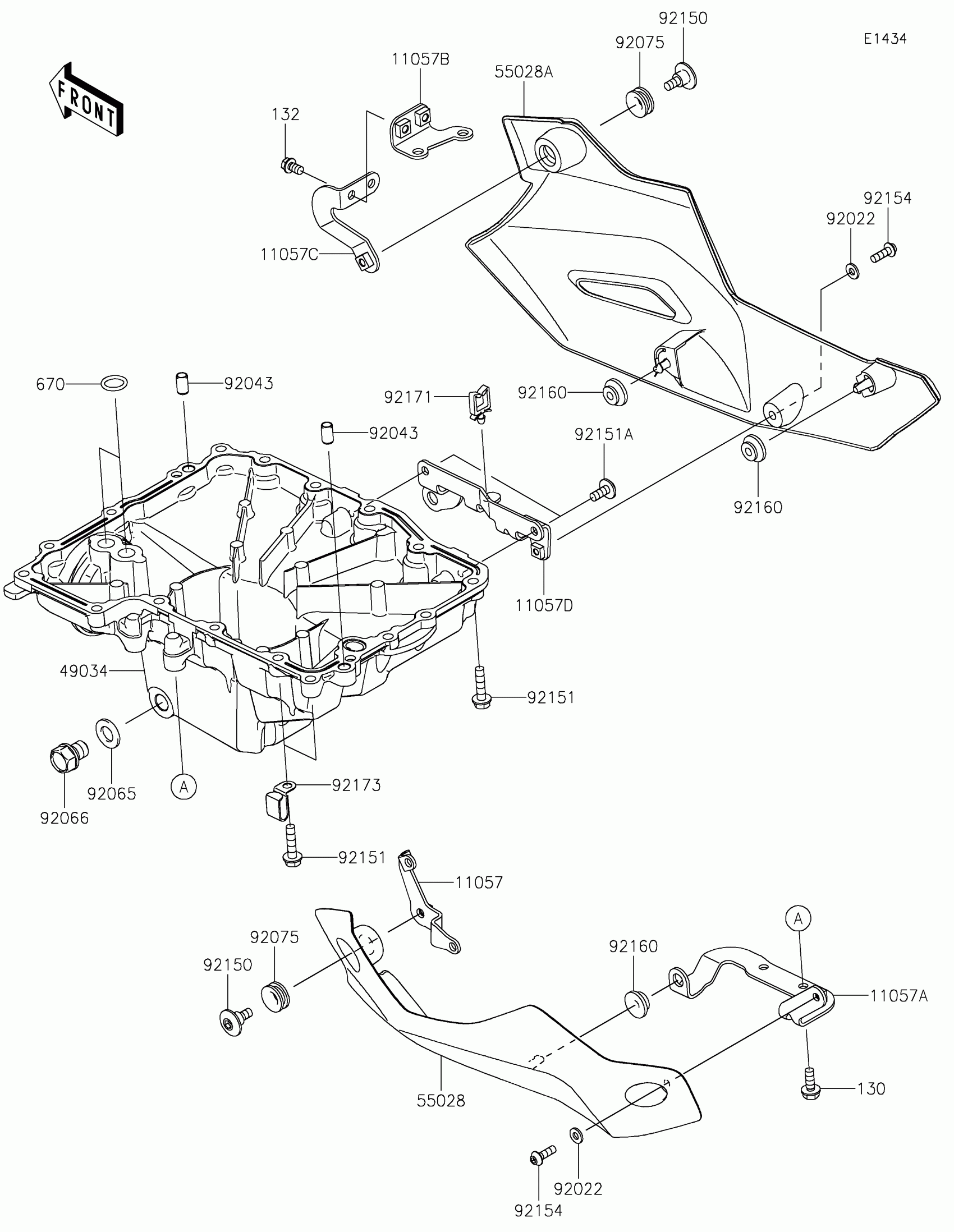

Kawasaki Z900 SE ABS Oil Pan Diagram

#

Description
Price

11057

BRACKET,FR,LH

11057-2705

$4.31

11057A

BRACKET,OIL PAN,LH

11057-2706

$7.41

11057B

BRACKET,CRANKCASE

11057-2707

$4.90

11057C

BRACKET,FR,RH

11057-2708

$4.90

11057D

BRACKET,OIL PAN,RH

11057-2709

$8.76

49034

PAN-OIL

49034-0578

$215.32

55028

COWLING,LWR,LH,M.G.GRAY

55028-0708-45W

$160.49

55028A

COWLING,LWR,RH,M.G.GRAY

55028-0709-45W

$162.61

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92043

PIN,6.2X8X14

92043-1263

$0.46

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,12X15

92066-0079

$4.55

92075

DAMPER

92075-1634

$3.57

92150

BOLT,SOCKET,6MM

92150-1154

$5.99

92151

BOLT,FLANGED,6X25

92151-1225

$1.76

92151A

BOLT,SOCKET,6X14

92151-1654

$1.24

92154

BOLT,SOCKET,5X16

92154-0287

$1.73

92160

DAMPER

92160-1613

$2.84

92171

CLAMP

92171-0290

$3.29

92173

CLAMP

92173-0082

$5.42

130

BOLT-FLANGED,6X16

130CC0616

$1.43

132

BOLT-FLANGED-SMALL

132BC0610

$1.68

670

O RING,14MM

670D2014

$4.18
