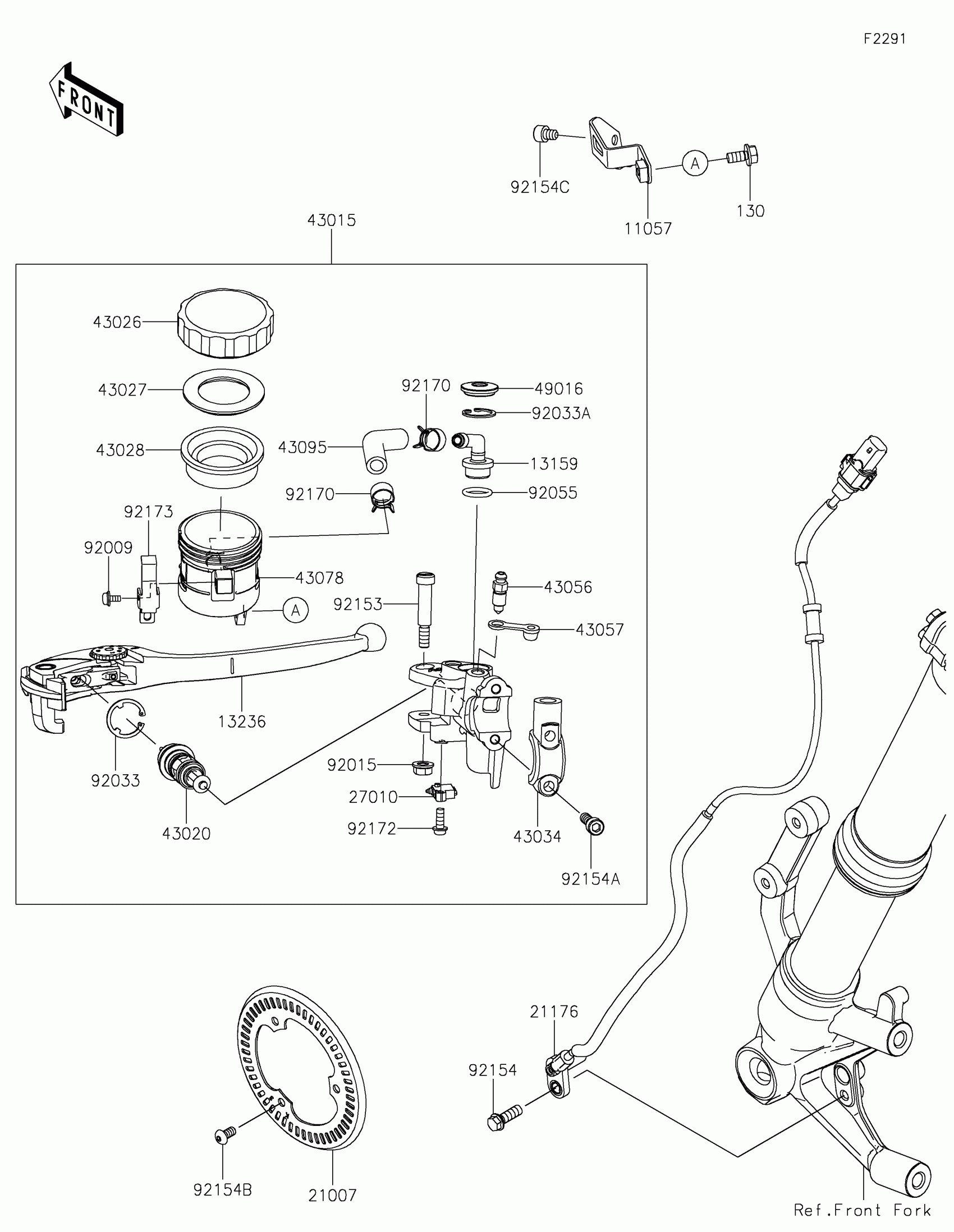

Kawasaki Z900 SE ABS Front Master Cylinder Diagram

#

Description
Price

11057

BRACKET,MASTER CYLINDER

11057-4128

$8.19

13159

CONNECTOR

13159-1061

$12.96

13236

LEVER-COMP,FRONT BRAKE

13236-0869

$68.87

21007

ROTOR,SENSOR,FR

21007-0671

$89.81

21176

SENSOR,SPEED,FR

21176-1254

$126.67

27010

SWITCH,CRUISE CONTROL CANCEL

27010-0931

$25.85

43015

CYLINDER-ASSY-MASTER,FR

43015-0832

$421.78

43020

PISTON-COMP-BRAKE

43020-0010

$65.94

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0057

$23.99

43056

BREATHER-BRAKE

43056-1056

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

43078

RESERVOIR

43078-0591

$30.88

43095

HOSE-BRAKE

43095-1753

$7.53

49016

COVER-SEAL

49016-1147

$6.29

92009

SCREW

92009-1570

$3.09

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92033

RING-SNAP

92033-0034

$4.55

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92055

RING-O,14.8X2.4

92055-0741

$3.71

92153

BOLT,LEVER

92153-0868

$7.83

92154

BOLT,FLANGED,6X18

92154-0784

$2.67

92154A

BOLT,SOCKET,6X22

92154-1271

$3.26

92154B

BOLT,SOCKET,5X10

92154-2801

$0.90

92154C

BOLT,SOCKET,6X8

92154-2914

$2.17

92170

CLAMP,HOSE

92170-1091

$5.00

92172

SCREW

92172-1243

$0.64

92173

CLAMP

92173-1790

$11.55

130

BOLT-FLANGED,6X12

130BA0612

$1.72
