Description

Price

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

$2.94

550

PIN-COTTER,2.0X15

550AA2015

$1.12

11057

BRACKET

11057-0258

$4.85

13159

CONNECTOR

13159-0008

$11.02

43010

ROD-ASSY-BRAKE

43010-0020

$29.34

43015

CYLINDER-ASSY-MASTER,RR

43015-0650

$410.93

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43078

RESERVOIR

43078-0060

$32.45

43095

HOSE-BRAKE,RR,468MM

43095-0988

$75.06

43095A

HOSE-BRAKE,RR M/CYL.

43095-1432

$9.74

49016

COVER-SEAL,BRAKE PISTON

49016-1103

$13.37

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN

92043-0904

$3.90

92055

RING-O,14.8X2.4

92055-0741

$3.71

92150

BOLT,SOCKET,8X25

92150-1837

$5.00

92153

BOLT,OIL,L=23

92153-0627

$5.48

92154

BOLT,FLANGED,6X16

92154-1055

$2.32

92154A

BOLT,FLANGED,6X16

92154-2685

$3.71

92170

CLAMP,HOSE

92170-1091

$5.00

92173

CLAMP,HOSE&SENSOR LINE

92173-1614

$1.42

92173A

CLAMP,SWA,FR

92173-1722

$3.86

92173B

CLAMP,SWA,RR

92173-1768

$10.08

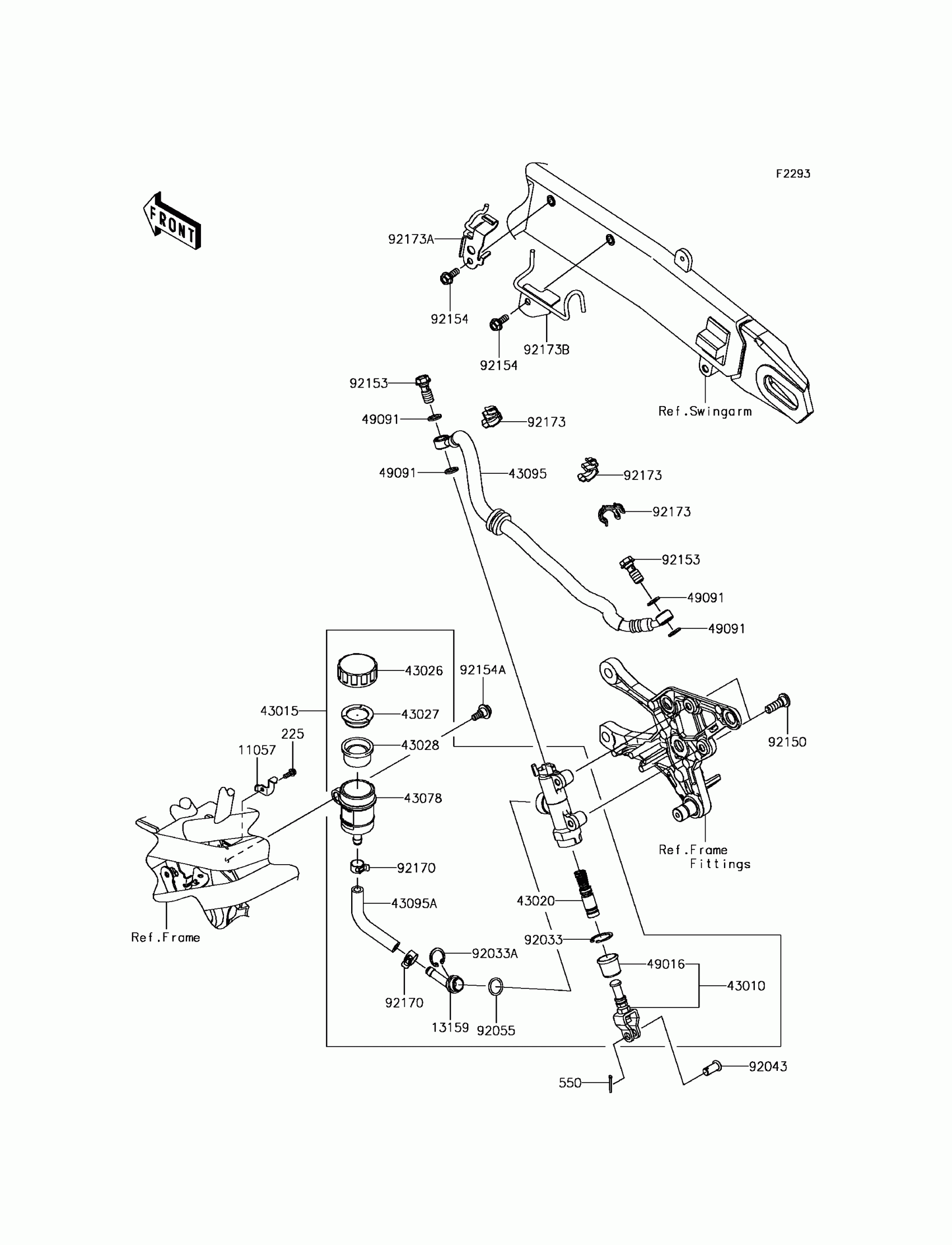

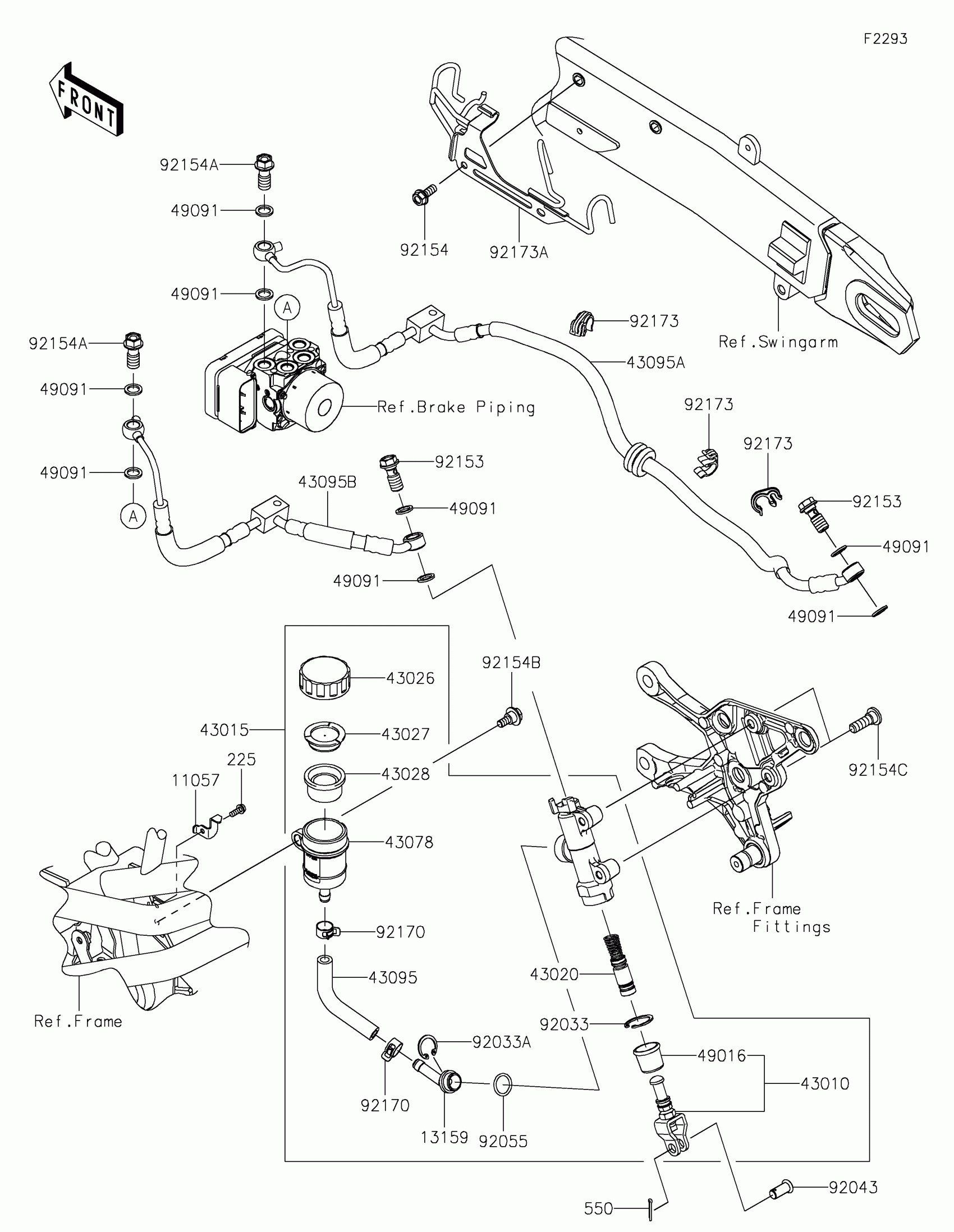

Kawasaki Z900 Rear Master Cylinder Diagram

SCREW-PAN-WSP-CROS,4X12

PIN-COTTER,2.0X15

BRACKET

CONNECTOR

ROD-ASSY-BRAKE

CYLINDER-ASSY-MASTER,RR

PISTON-COMP-BRAKE

CAP-BRAKE

PLATE-DIAPHRAGM

DIAPHRAGM

RESERVOIR

HOSE-BRAKE,RR,468MM

HOSE-BRAKE,RR M/CYL.

COVER-SEAL,BRAKE PISTON

WASHER-SEAL,10.1X14.5X1.5

RING-SNAP,20.9X24.6X1.2

RING-SNAP,20.5MM

PIN

RING-O,14.8X2.4

BOLT,SOCKET,8X25

BOLT,OIL,L=23

BOLT,FLANGED,6X16

BOLT,FLANGED,6X16

CLAMP,HOSE

CLAMP,HOSE&SENSOR LINE

CLAMP,SWA,FR

CLAMP,SWA,RR
