2017 Kawasaki Z900 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2017 Kawasaki Z900, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

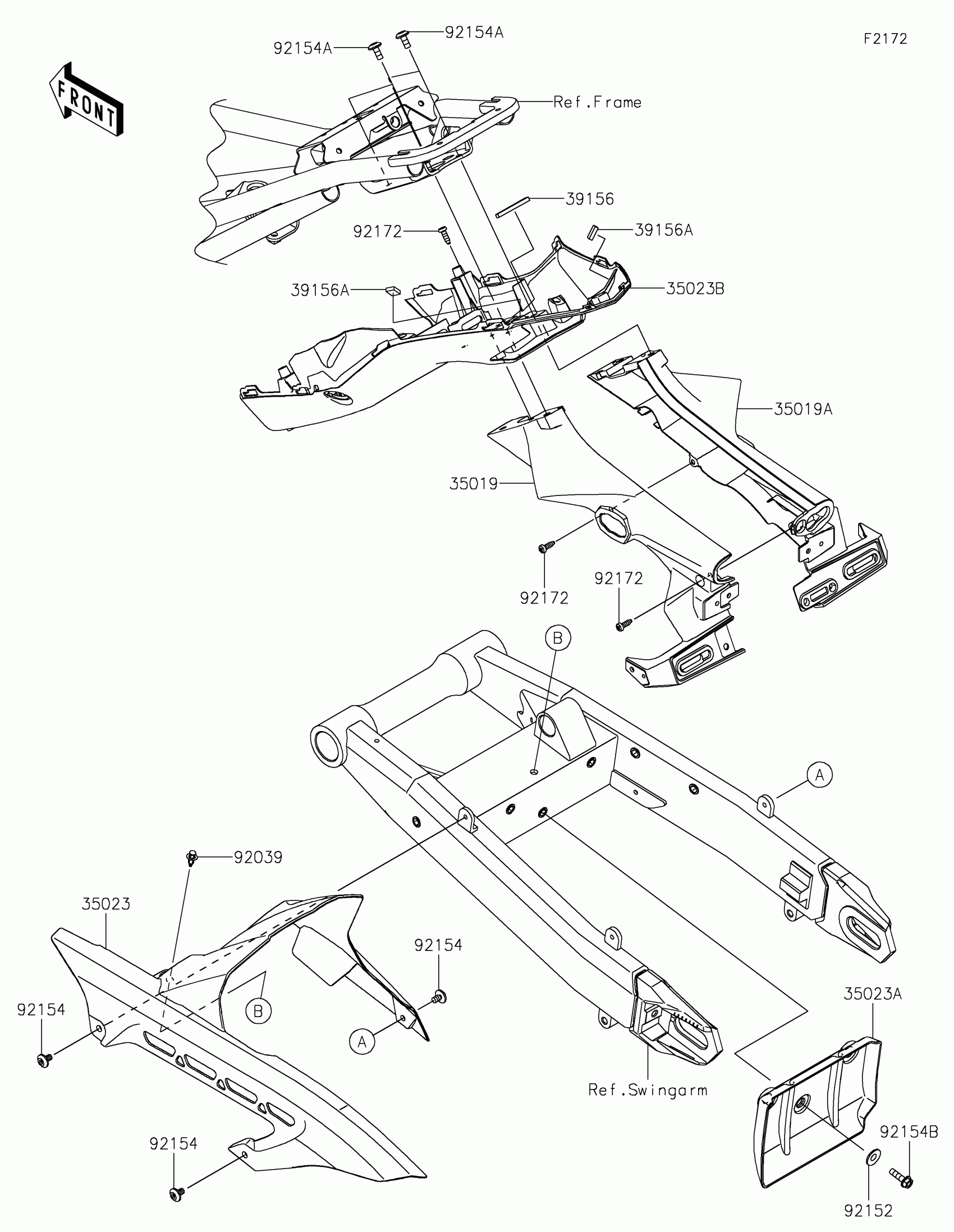

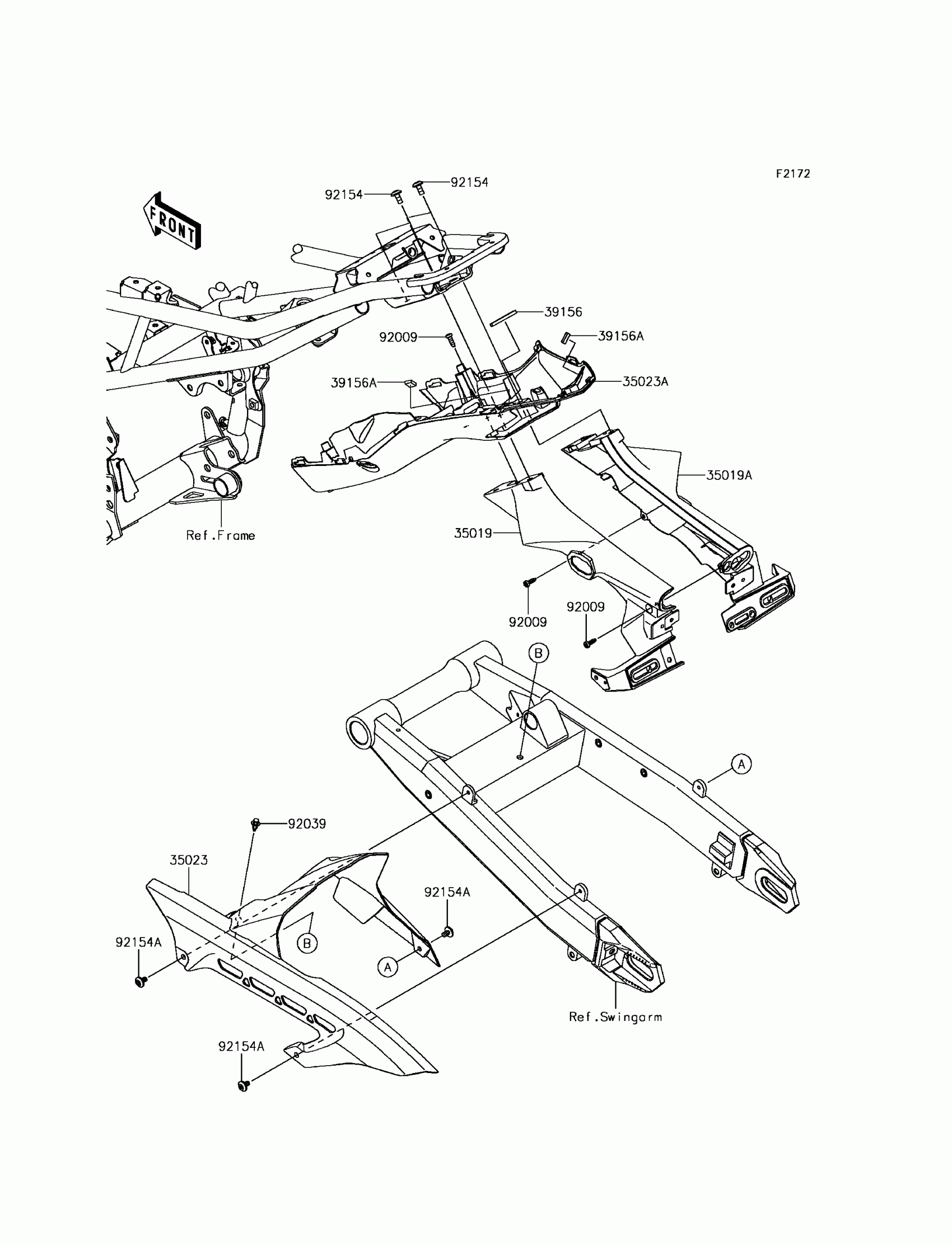

2017 Kawasaki Z900 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35019

FLAP,RR,LH

35019-0624

1
Out of stock

35019A

FLAP,RR,RH

35019-0625

1
Out of stock

35023

FENDER-REAR,INNER

35023-0421

1
Out of stock

35023A

FENDER-REAR

35023-0435

1
Out of stock

39156

PAD,4X44X5

39156-2179

1

$0.69

In stock

39156A

PAD,10X15X4

39156-2180

1

$0.50

In stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92039

RIVET

92039-0086

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0745

1
Out of stock

92154A

BOLT,SOCKET,6X10

92154-2667

1
Out of stock
