Partiron

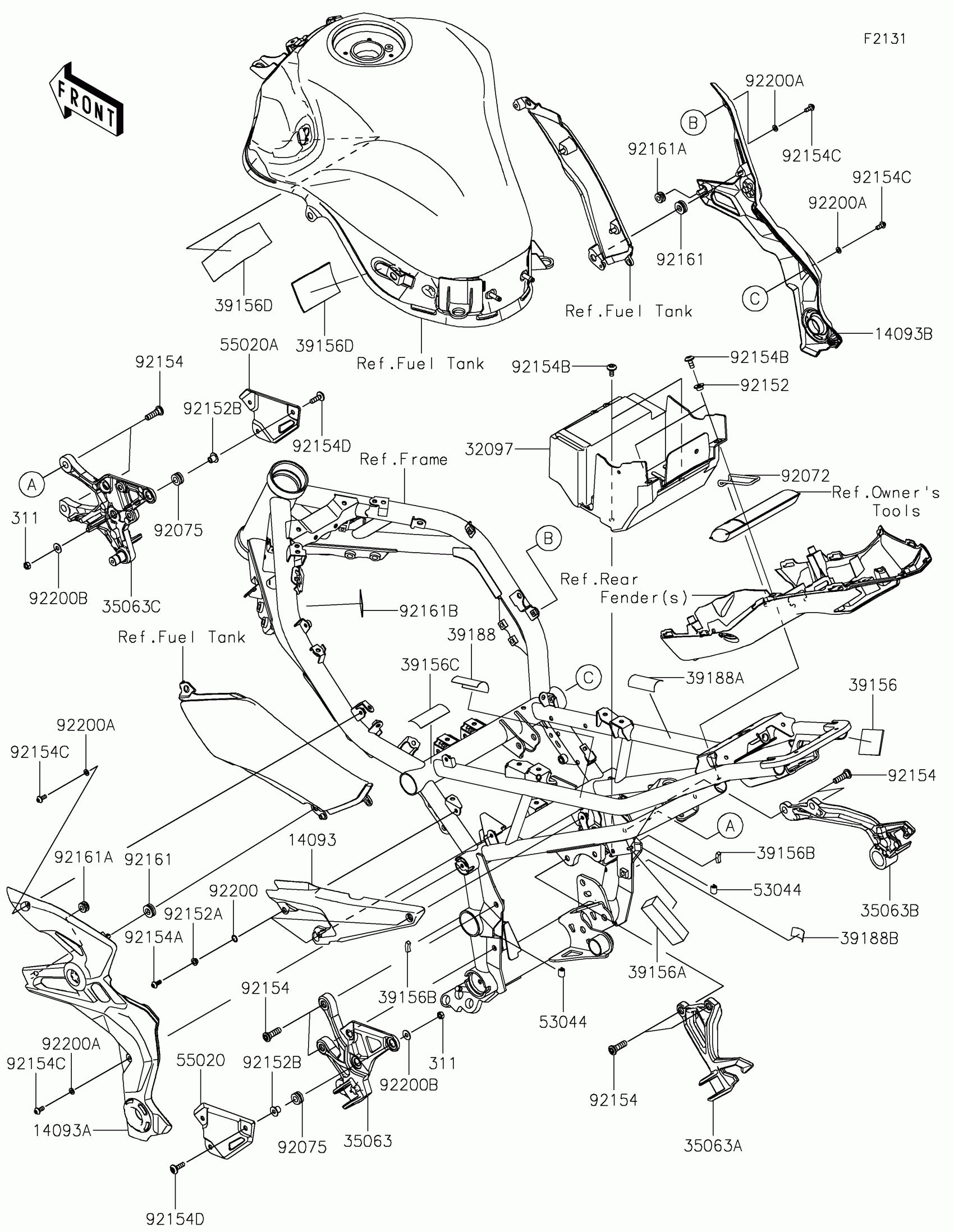

Kawasaki Z900 Frame Fittings Diagram

#

Description
Price

311

NUT-HEX,6MM

311AA0600

$0.81

14093

COVER,PIVOT,LH,B.SILVER

14093-0509-54N

$104.27

14093A

COVER,PIVOT,RH,B.SILVER

14093-0510-54N

$104.92

14093B

COVER,HARNESS,LH

14093-0511

$32.75

32097

CASE-BATTERY

32097-0045

$38.98

35063

STAY,STEP,RR,LH,F.S.BLACK

35063-1362-18R

$143.21

35063A

STAY,STEP,RR,RH,F.S.BLACK

35063-1363-18R

$158.48

35063B

STAY,STEP,FR,LH,F.S.BLACK

35063-1399-18R

$159.36

35063C

STAY,STEP,FR,RH,F.S.BLACK

35063-1400-18R

$180.37

39156

PAD,8X20X5

39156-2176

$0.69

39156A

PAD,40X60X2

39156-2177

$1.54

39156B

PAD,25X80X20

39156-2217

$4.41

39188

TAPE,30X30

39188-0566

$0.69

55020

GUARD,HEEL,LH

55020-1962

$47.70

55020A

GUARD,HEEL,RH

55020-1963

$47.70

92022

WASHER,6.5X16X1.0

92022-1093

$1.49

92055

RING-O,62.6X3.5

92055-0873

$3.89

92075

DAMPER

92075-1067

$3.57

92075A

DAMPER

92075-1409

$5.61

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92152

COLLAR,6.3X9.5X9.2

92152-2280

$1.58

92152A

COLLAR,6.5X10X6.4

92152-2287

$2.20

92152B

COLLAR,5.7X8.5X4.5

92152-2354

$4.08

92154

BOLT,SOCKET,6X20

92154-0918

$4.71

92154A

BOLT,SOCKET,5X12

92154-1421

$0.81

92154B

BOLT,SOCKET,8X28

92154-2334

$2.72

92154C

BOLT,SOCKET,5X12,MEC

92154-2678

$3.15

92160

DAMPER

92160-1613

$2.84

92161

DAMPER

92161-0864

$2.69

92161A

DAMPER,25X40,T1.0

92161-1432

$1.10

92200

WASHER,5.2X10X0.5

92200-1730

$0.60

92200A

WASHER,8.8X11.5X0.5

92200-1888

$0.69
