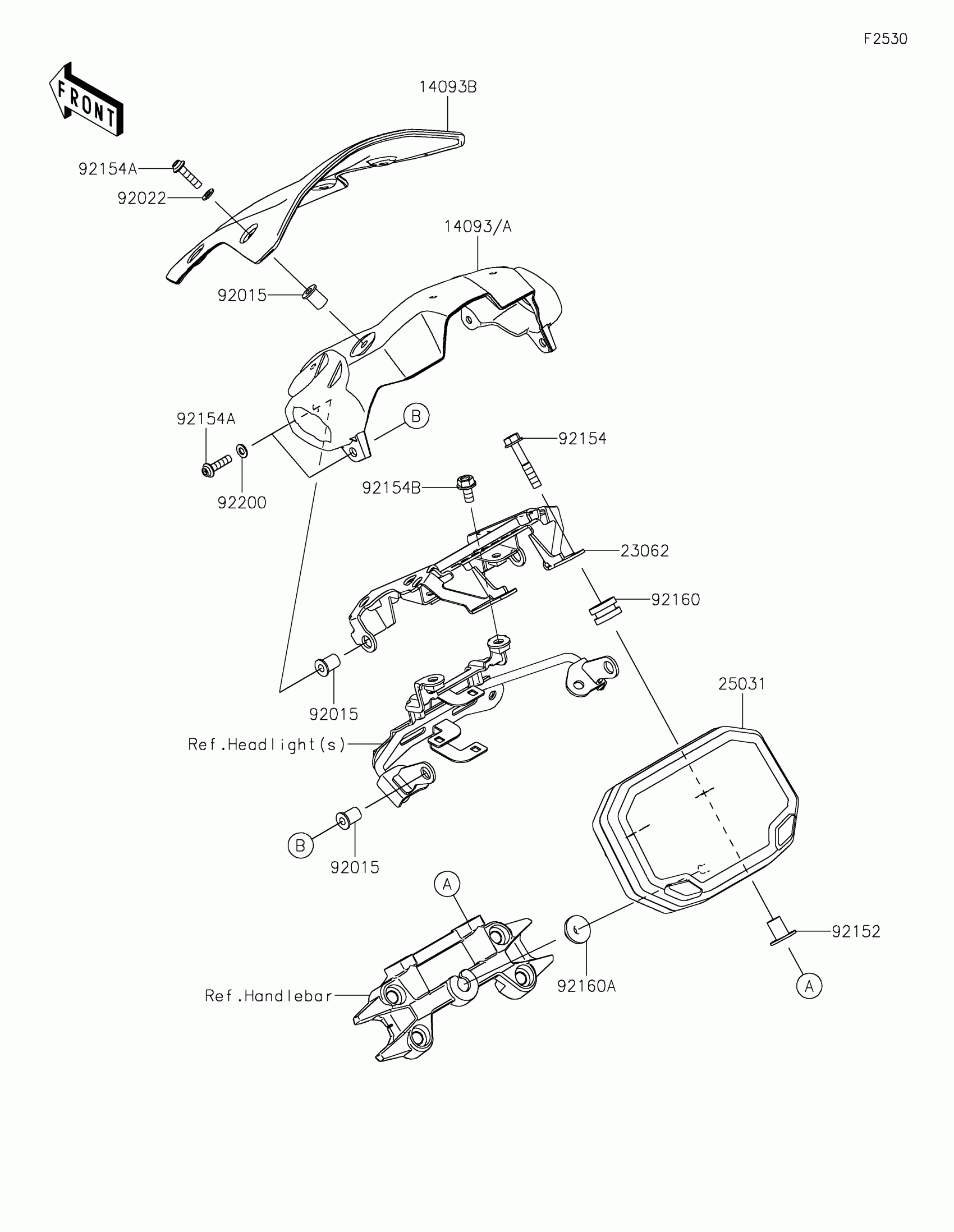

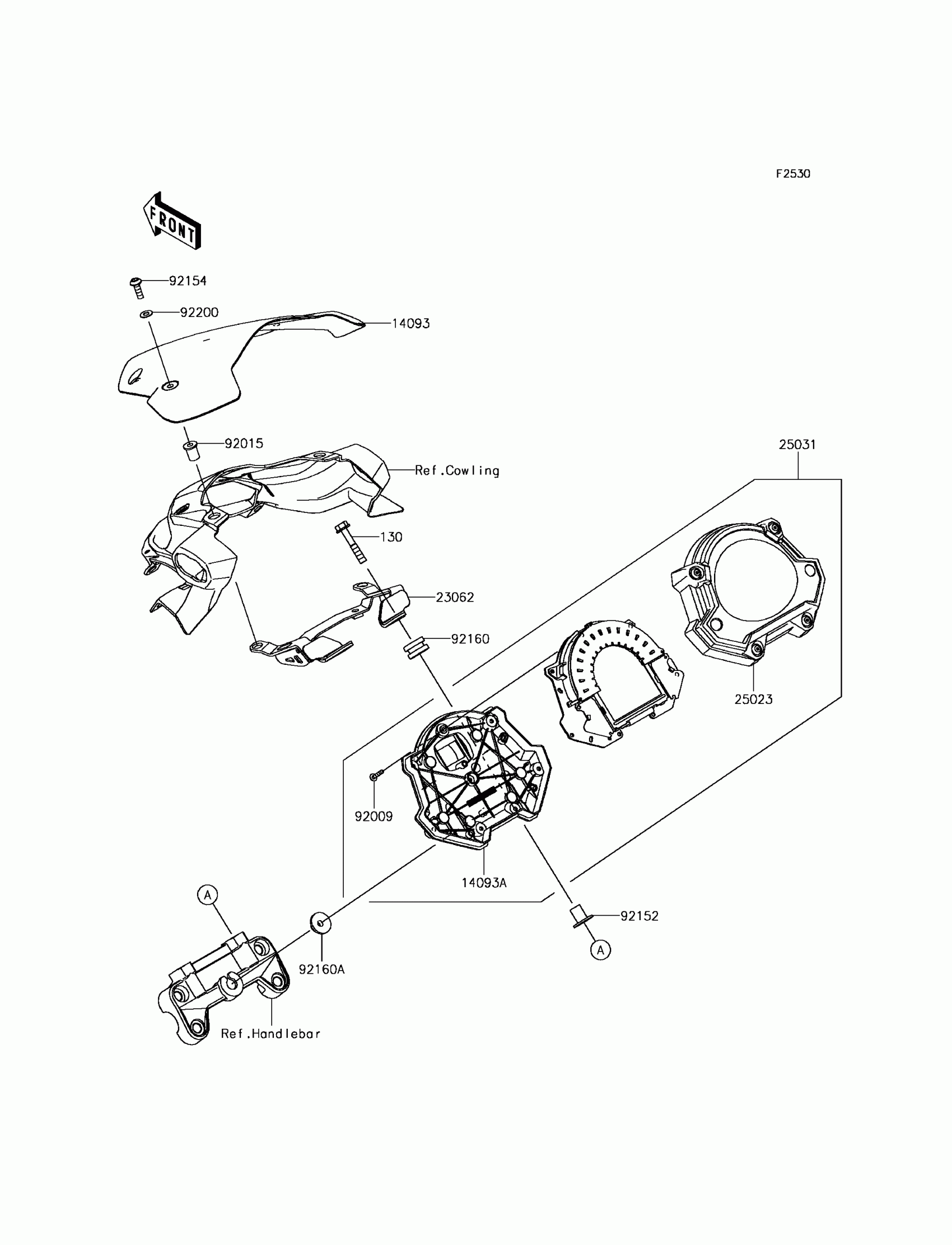

Kawasaki Z900 Meter(s) Diagram

Description

Price

130

BOLT-FLANGED,6X35

130BB0635

$4.76

14093

COVER,METER

14093-0512

$56.61

14093A

COVER,LWR CASE

14093-0526

$120.31

23062

BRACKET-COMP

23062-0928

$28.94

25023

COVER-METER CASE

25023-0128

$217.70

25031

METER-ASSY,COMBINATION

25031-0733

$911.92

92009

SCREW,TAPPING,3X16

92009-1391

$3.65

92015

NUT,WELL,5MM

92015-1757

$7.29

92152

COLLAR

92152-0604

$8.68

92154

BOLT,SOCKET,5X16

92154-0026

$2.55

92160

DAMPER,10X20X12

92160-1167

$4.69

92160A

DAMPER

92160-1613

$3.74

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59
