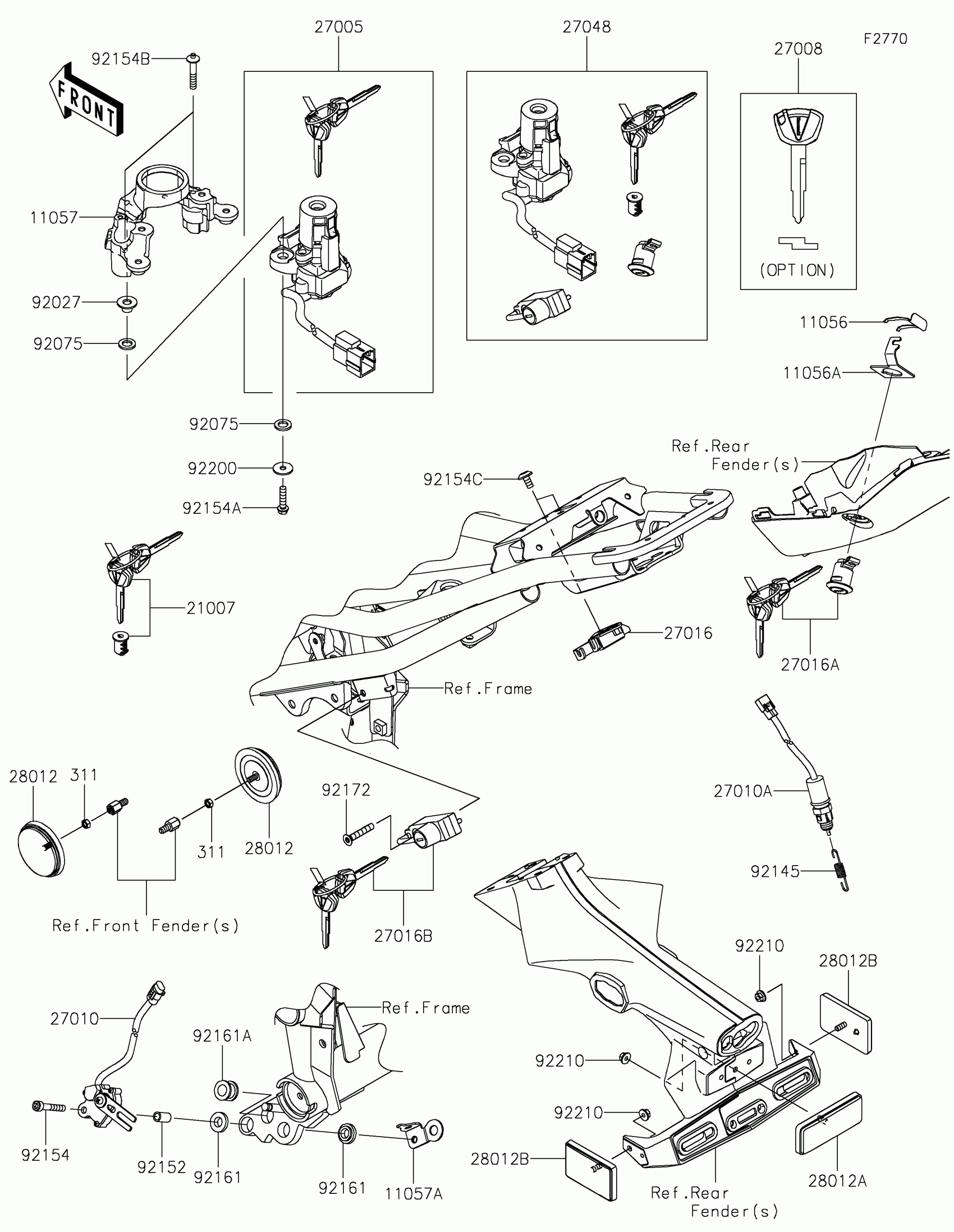

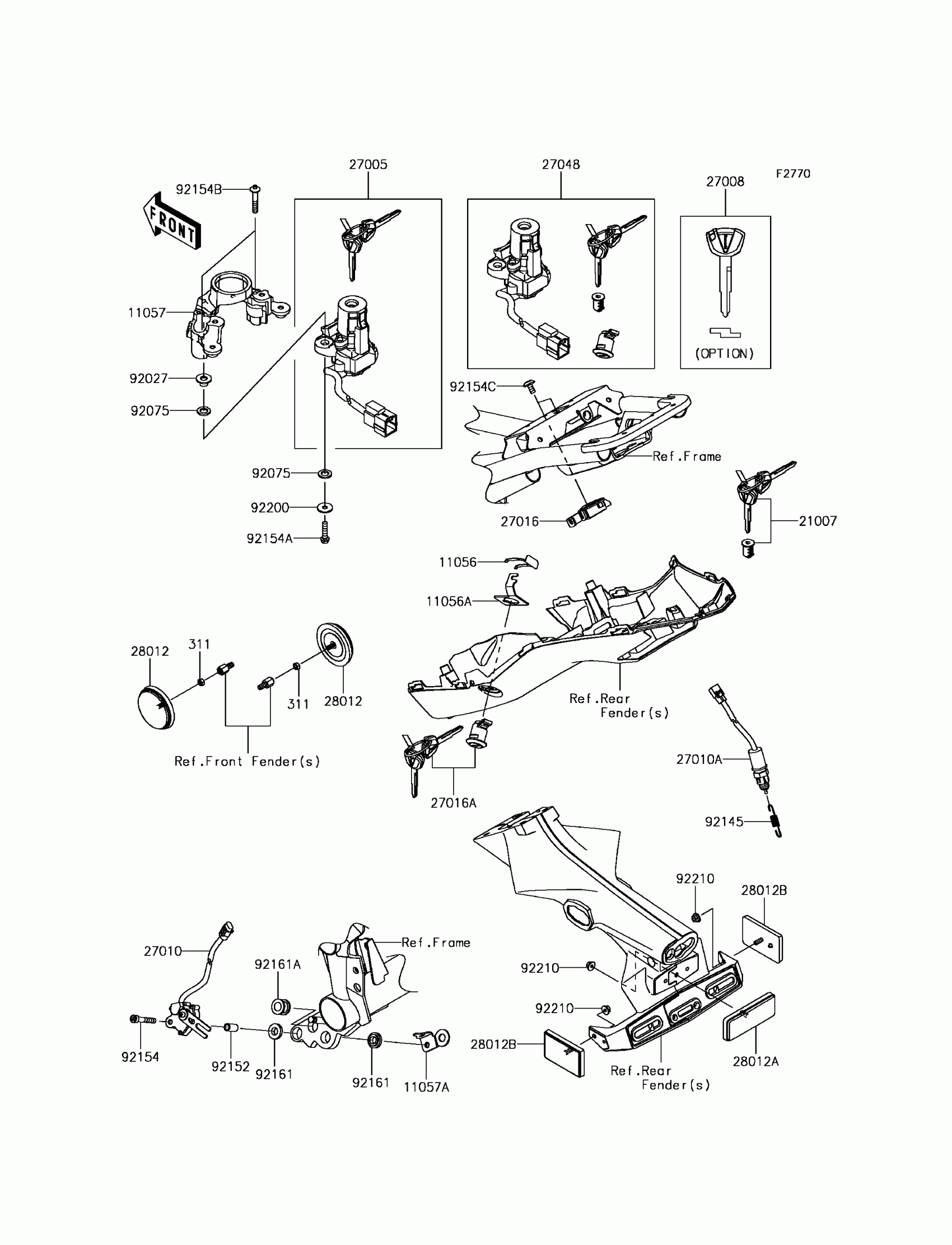

Kawasaki Z900 Ignition Switch/Locks/Reflectors Diagram
#
Description
Price
11056
BRACKET,CLASP
11056-0238
$6.00
11056A
BRACKET,SEAT LOCK
11056-2119
$4.41
11057
BRACKET,IG. SWITCH
11057-0251
$69.76
11057A
BRACKET
11057-0319
$1.42
21007
ROTOR,LOCK,TANK CAP
21007-5083
$123.53
27005
SWITCH-ASSY-IGNITION
27005-0673
$248.94
27008
KEY-LOCK,BLANK
27008-0596
$21.89
27010
SWITCH,SIDE STAND
27010-0722
$115.66
27010A
SWITCH,REAR BRAKE
27010-0937
$33.01
27016
LOCK-ASSY,SEAT STRIKER
27016-0008
$14.90
27016A
LOCK-ASSY,SEAT
27016-5386
$90.37
27016B
LOCK-ASSY,HELMET
27016-5397
$65.04
27048
SWITCH-ASSY
27048-5223
$604.45
28012
REFLECTOR-REFLEX,FR,SIDE
28012-0001
$24.14
28012A
REFLECTOR-REFLEX
28012-1077
$23.25
28012B
REFLECTOR-REFLEX
28012-1088
$22.46
92027
COLLAR
92027-1045
$5.52
92075
DAMPER
92075-1564
$5.48
92145
SPRING,REAR BRAKE
92145-2219
$2.18
92152
COLLAR,6.5X9.5X17
92152-2274
$2.44
92154
BOLT,SOCKET,6X40
92154-0505
$1.63
92154A
BOLT,FLANGED,6X25
92154-2154
$3.02
92154B
BOLT,E TYPE TORX,6X35
92154-2207
$3.57
92154C
BOLT,SOCKET,6X12
92154-2355
$1.94
92161
DAMPER
92161-0117
$2.90
92161A
DAMPER
92161-0118
$2.90
92172
SCREW,HEXLOBE,6X35
92172-0835
$3.02
92200
WASHER,6X20X1.6
92200-0780
$1.19
92210
NUT,FLANGED,5MM
92210-0007
$2.70
311
NUT-HEX,5MM
311AB0500
$0.43
