Description

Price

14069

BREATHER,TANK

14069-0008

$6.89

14093

COVER,KNEE GRIP,LH

14093-0667

$23.92

14093A

COVER,KNEE GRIP,RH

14093-0668

$23.92

36001

COVER-SIDE,SEAT,LH,M.S.BLACK

36001-0685-660

$22.46

36001A

COVER-SIDE,SEAT,RH,M.S.BLACK

36001-0686-660

$22.46

39156

PAD,KNEE GRIP COVER,LH

39156-2147

$7.56

39156A

PAD,KNEE GRIP COVER,RH

39156-2148

$7.56

39156B

PAD,20X50X5

39156-2191

$1.27

39156C

PAD,10X76X5

39156-2192

$1.52

39156D

PAD,20X20X5

39156-2194

$1.27

39156E

PAD,25X50X5

39156-2195

$2.92

39156F

PAD,15X66X10

39156-2215

$2.10

49016

COVER-SEAL

49016-0683

$21.72

51001

TANK-COMP-FUEL,M.S.BLACK

51001-0895-660

$1,162.17

51026

COVER TANK,CNT

51026-0013

$18.15

51026A

COVER TANK,LH,M.F.S.BLACK

51026-5179-739

Unavailable

51026B

COVER TANK,RH,M.F.S.BLACK

51026-5180-739

Unavailable

51026C

COVER TANK,LH,M.M.T.BLUE

51026-5181-68M

$314.17

51026D

COVER TANK,RH,M.M.T.BLUE

51026-5182-68M

$321.46

51026E

COVER TANK,LH,P.R.WHITE

51026-5197-68N

$370.57

51026F

COVER TANK,RH,P.R.WHITE

51026-5198-68N

$371.86

51049

CAP-TANK

51049-0735

$136.31

56054

MARK,IG. SWITCH

56054-2963

$16.77

92015

NUT,WELL,5MM

92015-1757

$7.29

92027

COLLAR,6.5X10X14.1

92027-1183

$5.52

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92152

COLLAR,6.3X12X22.6

92152-2252

$3.44

92152A

COLLAR,5.6X8X11.2

92152-2342

$2.70

92154

BOLT,SOCKET,5X12

92154-4289

$0.95

92154A

BOLT-FLANGED,6X35

92154-4290

$0.95

92154B

BOLT-SOCKET,5X12

92154-4291

$1.57

92154C

BOLT,SOCKET,5X20

92154-4301

$2.12

92160

DAMPER,10X20X12

92160-1167

$4.69

92161

DAMPER

92161-0365

$5.33

92161A

DAMPER

92161-0588

$3.94

92161B

DAMPER,8X16X8.6

92161-0685

$6.61

92161C

DAMPER,12X28X21

92161-1468

$4.41

92171

CLAMP,EDGE CLIP

92171-1722

$8.05

92172

SCREW,5X10

92172-0864

$1.34

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-0861

$3.02

92173B

CLAMP,TUBE

92173-2442

$0.51

92173B

CLAMP,TUBE

92173-2442

$0.51

92192

TUBE,6X9X670/30

92192-1688

$13.22

92192A

TUBE,6X9X670/30,BLUE

92192-2619

$13.23

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

92200A

WASHER,5.2X10X1

92200-2286

$0.39

702

TUBE-RUBBER,6X9X300

702A06300

$5.25

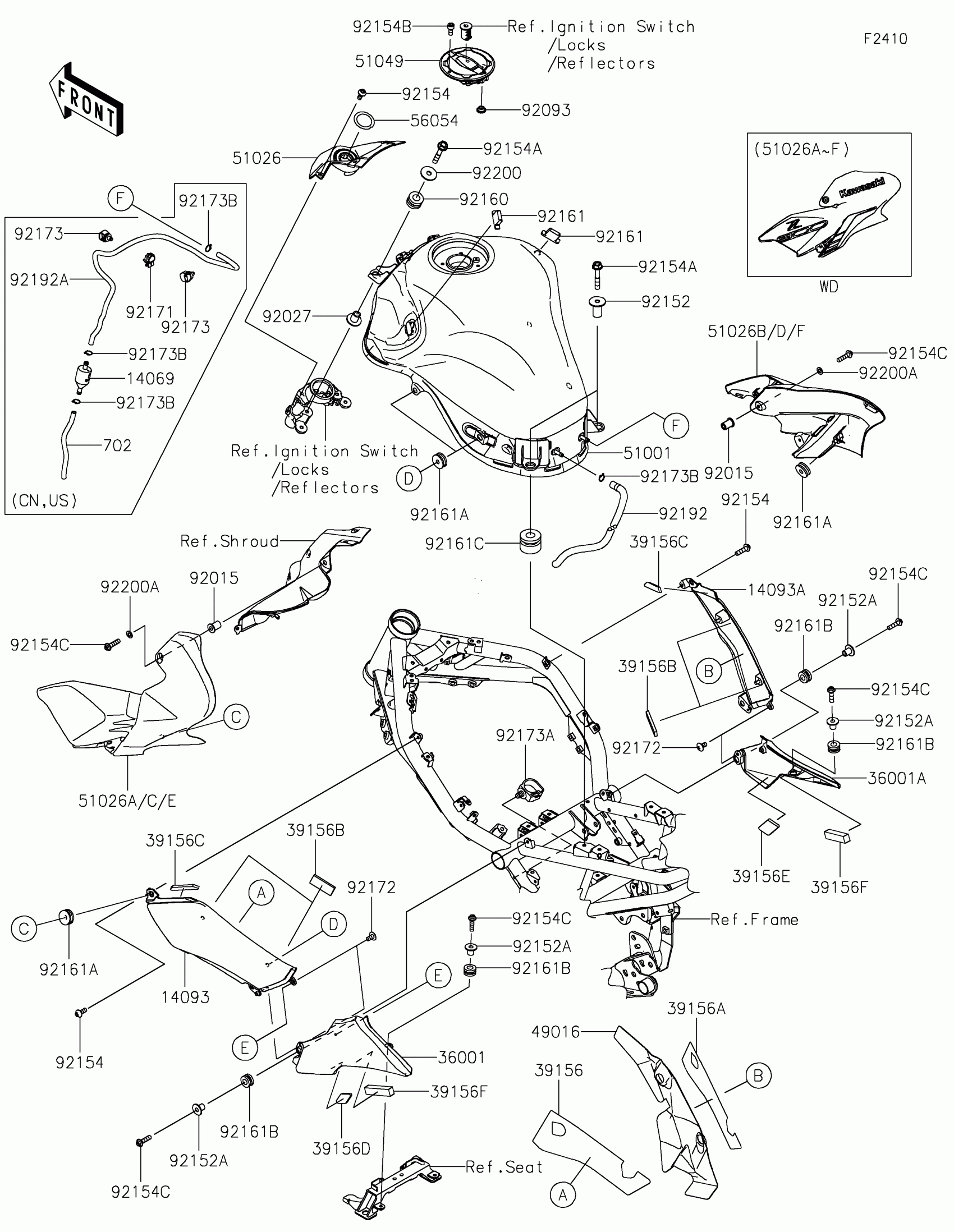

Kawasaki Z900 Fuel Tank(FNSNN/FNSNL) Diagram

BREATHER,TANK

COVER,KNEE GRIP,LH

COVER,KNEE GRIP,RH

COVER-SIDE,SEAT,LH,M.S.BLACK

COVER-SIDE,SEAT,RH,M.S.BLACK

PAD,KNEE GRIP COVER,LH

PAD,KNEE GRIP COVER,RH

PAD,20X50X5

PAD,10X76X5

PAD,20X20X5

PAD,25X50X5

PAD,15X66X10

COVER-SEAL

TANK-COMP-FUEL,M.S.BLACK

COVER TANK,CNT

COVER TANK,LH,M.F.S.BLACK

COVER TANK,RH,M.F.S.BLACK

COVER TANK,LH,M.M.T.BLUE

COVER TANK,RH,M.M.T.BLUE

COVER TANK,LH,P.R.WHITE

COVER TANK,RH,P.R.WHITE

CAP-TANK

MARK,IG. SWITCH

NUT,WELL,5MM

COLLAR,6.5X10X14.1

SEAL,FUEL TANK CAP

COLLAR,6.3X12X22.6

COLLAR,5.6X8X11.2

BOLT,SOCKET,5X12

BOLT-FLANGED,6X35

BOLT-SOCKET,5X12

BOLT,SOCKET,5X20

DAMPER,10X20X12

DAMPER

DAMPER

DAMPER,8X16X8.6

DAMPER,12X28X21

CLAMP,EDGE CLIP

SCREW,5X10

CLAMP,12MM DIA.

CLAMP

CLAMP,TUBE

CLAMP,TUBE

TUBE,6X9X670/30

TUBE,6X9X670/30,BLUE

WASHER,6.5X22X1.6

WASHER,5.2X10X1

TUBE-RUBBER,6X9X300
