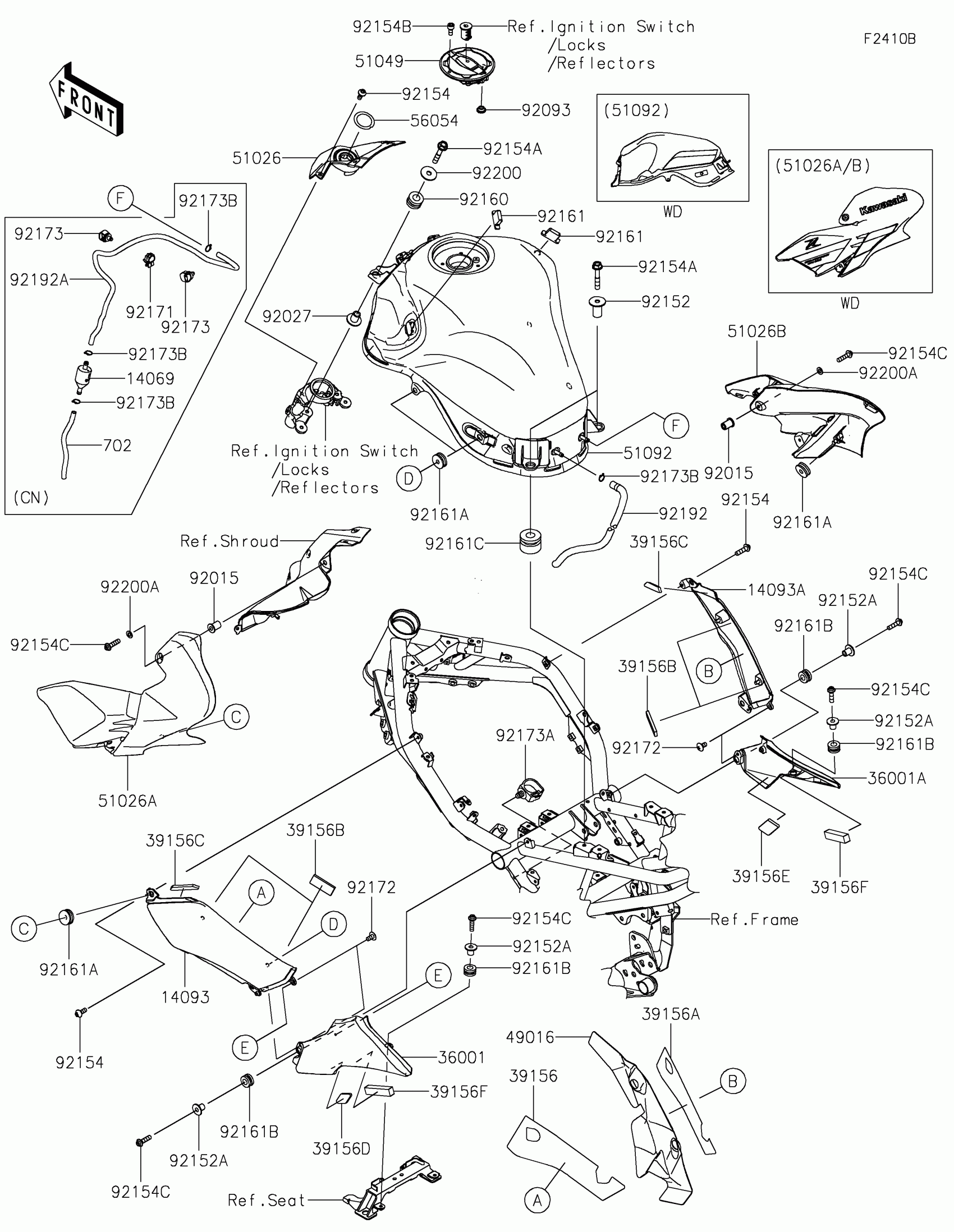

Kawasaki Z900 Fuel Tank(FNSCN/FNSCL) Diagram
#
14069
BREATHER,TANK
14069-0008
$6.89
14093
COVER,KNEE GRIP,LH
14093-0667
$23.92
14093A
COVER,KNEE GRIP,RH
14093-0668
$23.92
36001
COVER-SIDE,SEAT,LH,EBONY
36001-0685-H8
$18.96
36001A
COVER-SIDE,SEAT,RH,EBONY
36001-0686-H8
$18.96
39156
PAD,KNEE GRIP COVER,LH
39156-2147
$7.56
39156A
PAD,KNEE GRIP COVER,RH
39156-2148
$7.56
39156B
PAD,20X50X5
39156-2191
$1.27
39156C
PAD,10X76X5
39156-2192
$1.52
39156D
PAD,20X20X5
39156-2194
$1.27
39156E
PAD,25X50X5
39156-2195
$2.92
39156F
PAD,15X66X10
39156-2215
$2.10
49016
COVER-SEAL
49016-0683
$21.72
51026
COVER TANK,CNT
51026-0013
$18.15
51026A
COVER TANK,LH,F.RED
51026-5191-B1
$580.43
51026B
COVER TANK,RH,F.RED
51026-5192-B1
$580.43
51049
CAP-TANK
51049-0735
$136.31
51092
TANK-COMP-FUEL,F.RED
51092-5233-B1
$1,353.42
56054
MARK,IG. SWITCH
56054-2963
$16.77
92015
NUT,WELL,5MM
92015-1757
$7.29
92027
COLLAR,6.5X10X14.1
92027-1183
$5.52
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
92152
COLLAR,6.3X12X22.6
92152-2252
$3.44
92152A
COLLAR,5.6X8X11.2
92152-2342
$2.70
92154
BOLT,SOCKET,5X12
92154-4289
$0.95
92154A
BOLT-FLANGED,6X35
92154-4290
$0.95
92154B
BOLT-SOCKET,5X12
92154-4291
$1.57
92154C
BOLT,SOCKET,5X20
92154-4301
$2.12
92160
DAMPER,10X20X12
92160-1167
$4.69
92161
DAMPER
92161-0365
$5.33
92161A
DAMPER
92161-0588
$3.94
92161B
DAMPER,8X16X8.6
92161-0685
$6.61
92161C
DAMPER,12X28X21
92161-1468
$4.41
92171
CLAMP,EDGE CLIP
92171-1722
$8.05
92172
SCREW,5X10
92172-0864
$1.34
92173
CLAMP,12MM DIA.
92173-0736
$5.05
92173A
CLAMP
92173-0861
$3.02
92173B
CLAMP,TUBE
92173-2442
$0.51
92173B
CLAMP,TUBE
92173-2442
$0.51
92192
TUBE,6X9X670/30
92192-1688
$13.22
92192A
TUBE,6X9X670/30,BLUE
92192-2619
$13.23
92200
WASHER,6.5X22X1.6
92200-1087
$3.94
92200A
WASHER,5.2X10X1
92200-2286
$0.39
702
TUBE-RUBBER,6X9X300
702A06300
$5.25
