Description

Price

14093

COVER,KNEE GRIP,LH

14093-0667

$23.92

14093A

COVER,KNEE GRIP,RH

14093-0668

$23.92

36001

COVER-SIDE,SEAT,LH,P.M.GRAY

36001-0658-36P

$22.67

36001A

COVER-SIDE,SEAT,LH,M.S.BLACK

36001-0658-660

$22.67

36001B

COVER-SIDE,SEAT,RH,P.M.GRAY

36001-0659-36P

$22.67

36001C

COVER-SIDE,SEAT,RH,M.S.BLACK

36001-0659-660

$22.46

39156

PAD,KNEE GRIP COVER,LH

39156-2147

$7.56

39156A

PAD,KNEE GRIP COVER,RH

39156-2148

$7.56

39156B

PAD,20X50X5

39156-2191

$1.27

39156C

PAD,10X76X5

39156-2192

$1.52

39156D

PAD,20X20X5

39156-2194

$1.27

39156E

PAD,25X50X5

39156-2195

$2.92

39156F

PAD,15X66X10

39156-2215

$2.10

39188

TAPE,8X35

39188-0564

$1.41

51001

TANK-COMP-FUEL,M.S.BLACK

51001-0853-660

$1,162.17

51026

COVER TANK,CNT

51026-0013

$18.15

51026A

COVER TANK,LH,P.M.GRAY

51026-0014-36P

$122.10

51026B

COVER TANK,LH,M.F.S.BLACK

51026-0014-739

$122.10

51026C

COVER TANK,RH,P.M.GRAY

51026-0015-36P

$122.10

51026D

COVER TANK,RH,M.F.S.BLACK

51026-0015-739

$122.10

51049

CAP-TANK

51049-0735

$136.31

56054

MARK,IG. SWITCH

56054-1822

$8.89

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92152

COLLAR,6.3X9.5X14.1

92152-1847

$6.52

92152A

COLLAR,6.3X12X22.6

92152-2252

$3.44

92152B

COLLAR,5.6X8X11.2

92152-2342

$2.70

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X20

92154-0210

$2.12

92154B

BOLT,SOCKET,5X12

92154-1421

$0.95

92160

DAMPER,10X20X12

92160-1167

$4.69

92160A

DAMPER

92160-1613

$3.74

92161

DAMPER

92161-0365

$5.33

92161A

DAMPER

92161-0588

$3.94

92161B

DAMPER,8X16X8.6

92161-0685

$6.61

92161C

DAMPER,12X28X21

92161-1468

$4.41

120

BOLT-SOCKET,5X12

120CA0512

$1.57

130

BOLT-FLANGED,6X35

130BA0635

$0.94

92172

SCREW,5X10

92172-0864

$1.34

92173A

CLAMP

92173-0861

$3.02

92192

TUBE,6X9X670/30

92192-1688

$13.22

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92200A

WASHER,6.5X22X1.6

92200-1087

$3.94

14069

BREATHER,TANK

14069-0008

$6.89

92037

CLAMP,TUBE

92037-010

$3.92

92037

CLAMP,TUBE

92037-010

$3.92

702

TUBE-RUBBER,6X9X300

702A06300

$5.25

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92192A

TUBE,6X9X670/30,BLUE

92192-1734

$13.47

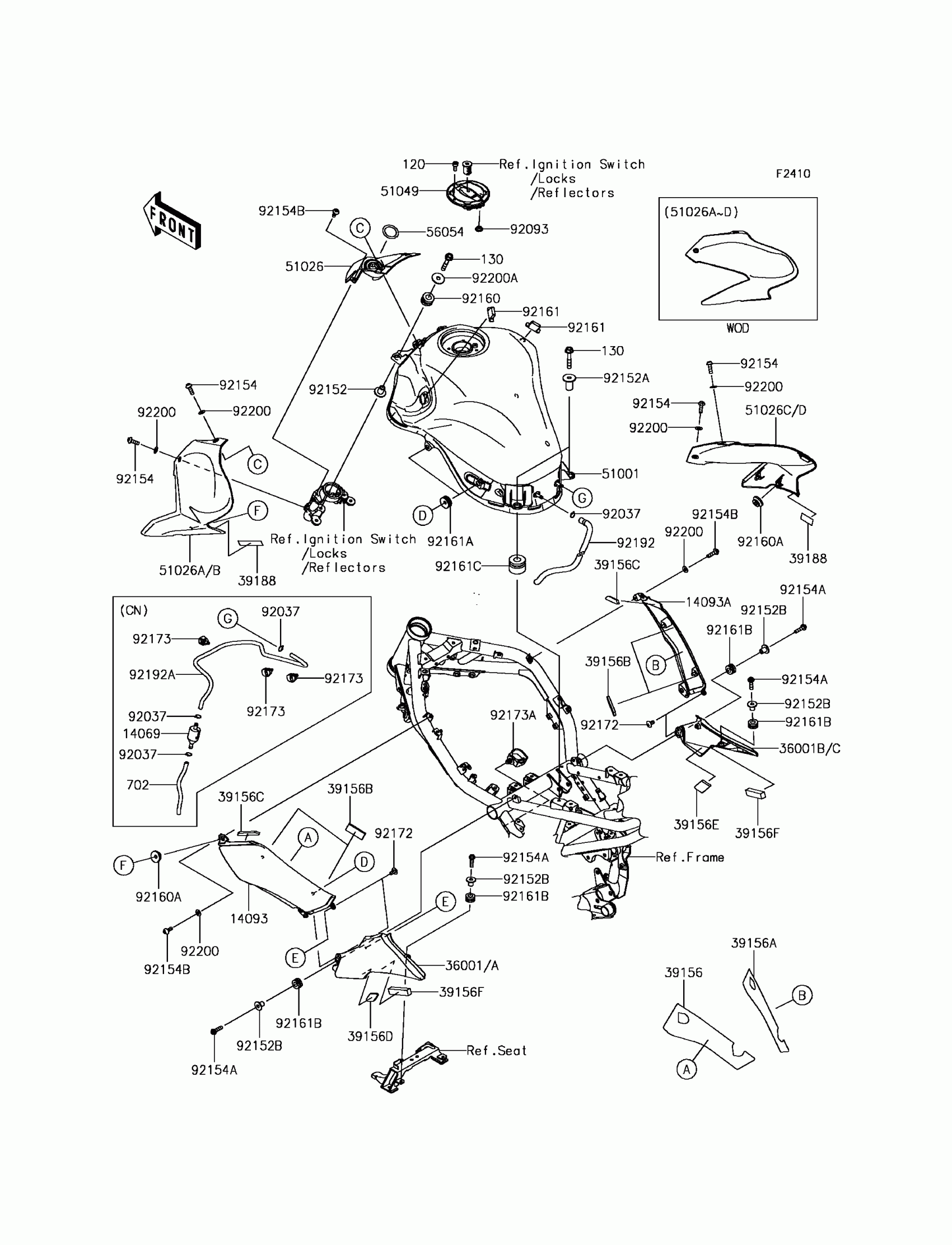

Kawasaki Z900 Fuel Tank Diagram

COVER,KNEE GRIP,LH

COVER,KNEE GRIP,RH

COVER-SIDE,SEAT,LH,P.M.GRAY

COVER-SIDE,SEAT,LH,M.S.BLACK

COVER-SIDE,SEAT,RH,P.M.GRAY

COVER-SIDE,SEAT,RH,M.S.BLACK

PAD,KNEE GRIP COVER,LH

PAD,KNEE GRIP COVER,RH

PAD,20X50X5

PAD,10X76X5

PAD,20X20X5

PAD,25X50X5

PAD,15X66X10

TAPE,8X35

TANK-COMP-FUEL,M.S.BLACK

COVER TANK,CNT

COVER TANK,LH,P.M.GRAY

COVER TANK,LH,M.F.S.BLACK

COVER TANK,RH,P.M.GRAY

COVER TANK,RH,M.F.S.BLACK

CAP-TANK

MARK,IG. SWITCH

SEAL,FUEL TANK CAP

COLLAR,6.3X9.5X14.1

COLLAR,6.3X12X22.6

COLLAR,5.6X8X11.2

BOLT,SOCKET,5X16

BOLT,SOCKET,5X20

BOLT,SOCKET,5X12

DAMPER,10X20X12

DAMPER

DAMPER

DAMPER

DAMPER,8X16X8.6

DAMPER,12X28X21

BOLT-SOCKET,5X12

BOLT-FLANGED,6X35

SCREW,5X10

CLAMP

TUBE,6X9X670/30

WASHER,NYLONE,5.3X11.5X0.5

WASHER,6.5X22X1.6

BREATHER,TANK

CLAMP,TUBE

CLAMP,TUBE

TUBE-RUBBER,6X9X300

CLAMP,12MM DIA.

TUBE,6X9X670/30,BLUE
