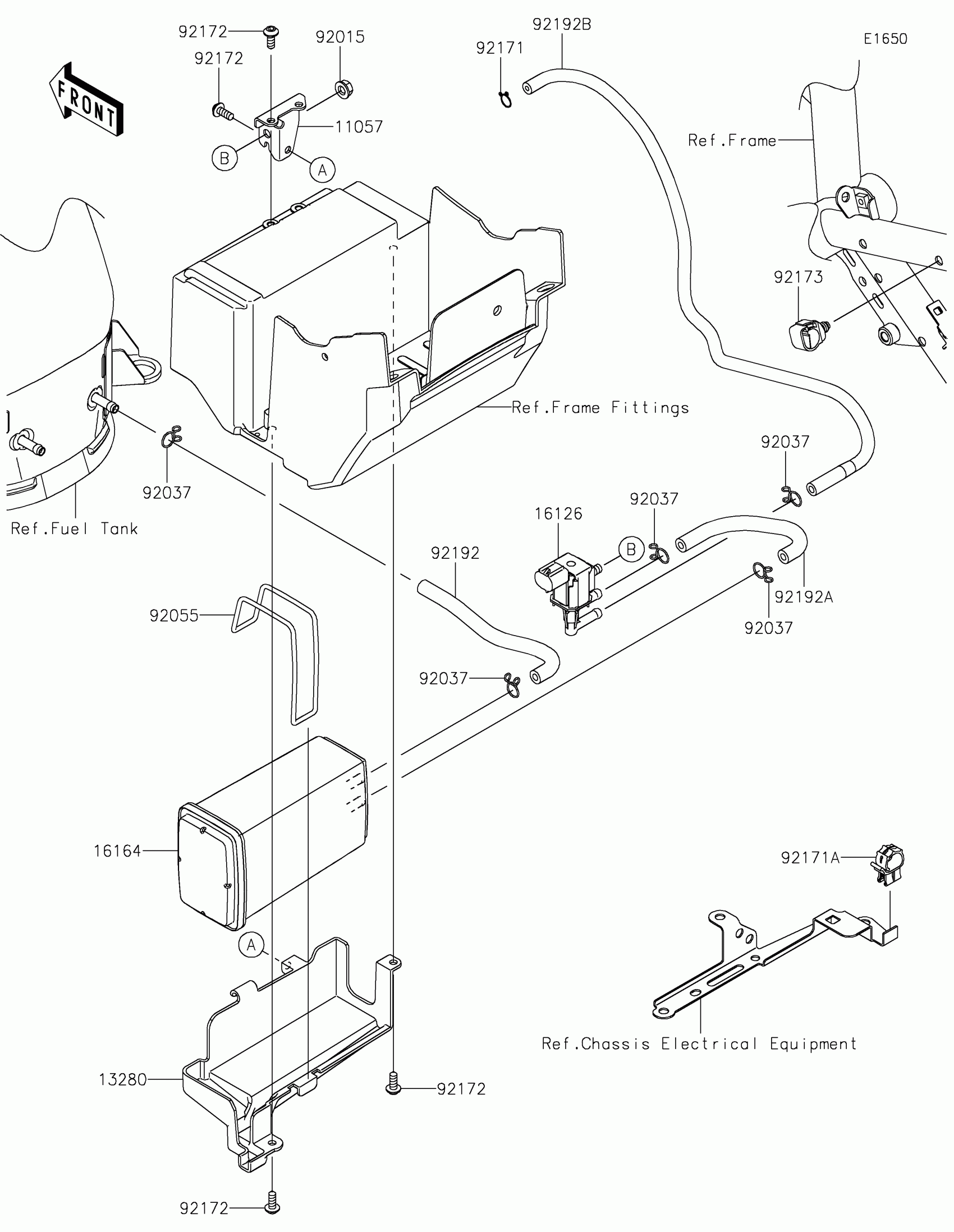

Kawasaki Z900 Fuel Evaporative System(CA) Diagram

Description

Price

11057

BRACKET,PCV

11057-0286

$3.90

13280

HOLDER,CANISTER

13280-0880

$6.57

16126

VALVE,PCV

16126-0740

$106.99

16164

CANISTER

16164-0012

$149.73

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP,TUBE

92037-147

$7.34

92055

RING-O,104.4X3.1

92055-1020

$14.23

92171

CLAMP

92171-0573

$1.34

92171A

CLAMP,EDGE CLIP

92171-1722

$8.05

92172

SCREW,SOCKET,5X14

92172-0823

$0.85

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92192

TUBE,CANISTER-TANK

92192-1690

$28.78

92192A

TUBE,PCV-CANISTER

92192-1691

$26.15

92192B

TUBE,PCV-THROTTLE BODY

92192-1779

$66.80
