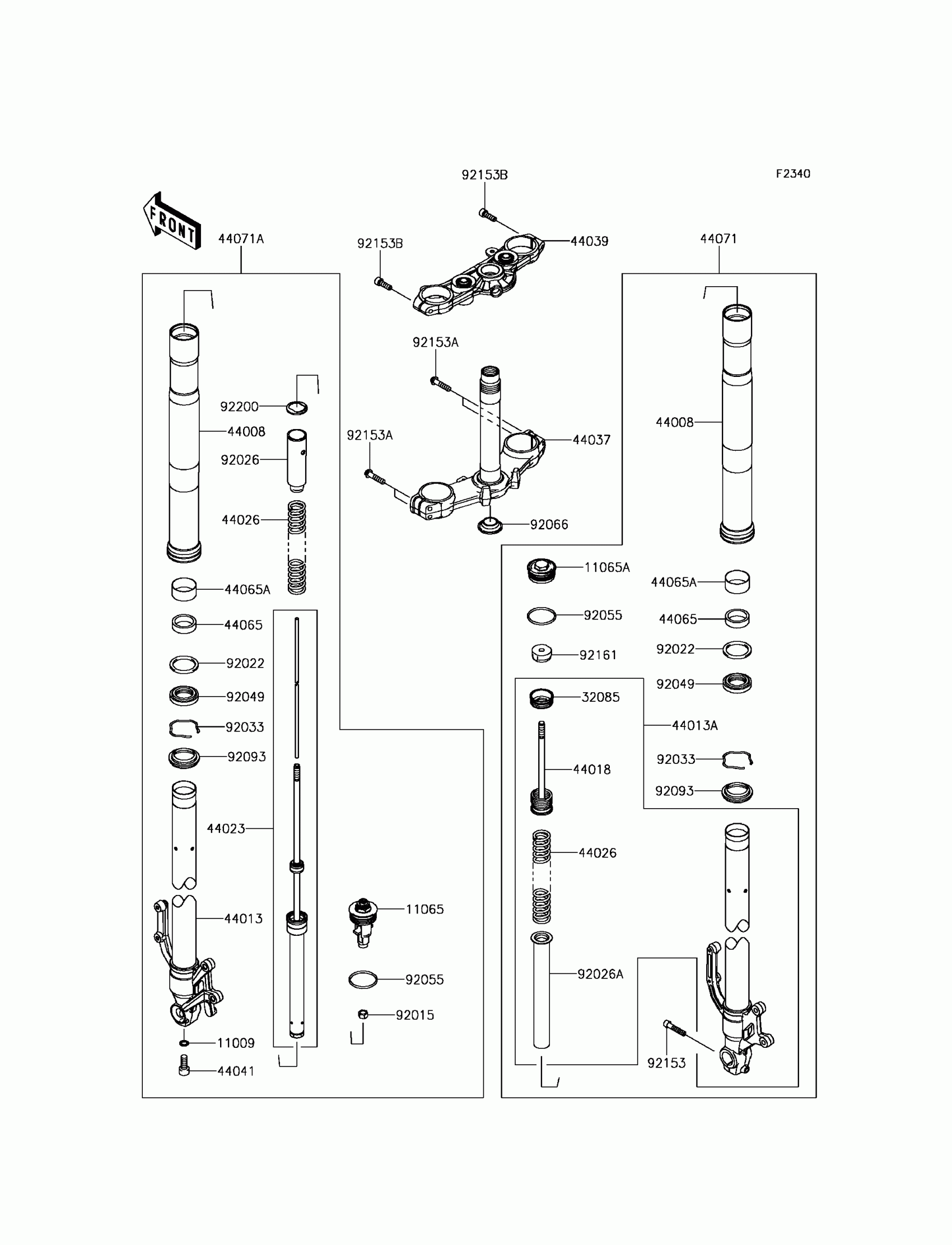

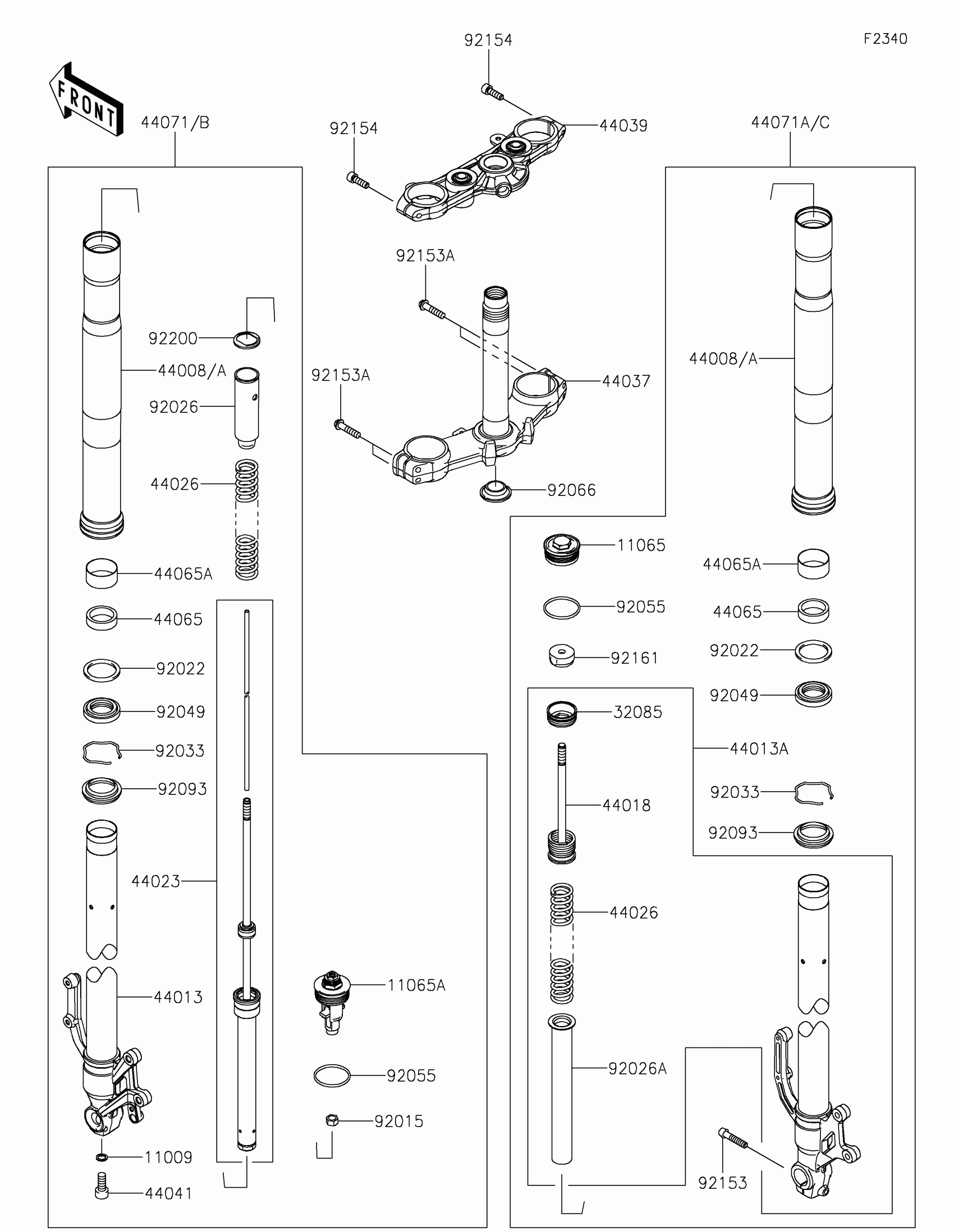

Kawasaki Z900 Front Fork Diagram
#
11009
GASKET,10.5X15X1.5
11009-1325
Unavailable
11065
CAP,COMP.,RH,GRAY
11065-0973-11G
$153.81
11065A
CAP,COMP.,LH,BLACK
11065-1366-58Z
$153.81
32085
STOPPER
32085-0742
$12.60
44008
PIPE-FORK OUTER,BLACK
44008-0100-499
$471.45
44008A
PIPE-FORK OUTER
44008-0101
$471.45
44013
PIPE-FORK INNER,LH
44013-0292
$430.64
44013A
PIPE-FORK INNER,RH
44013-0371
$430.64
44018
PISTON-FORK
44018-0003
$61.32
44023
CYLINDER-SET-FORK,LH
44023-0171
$444.85
44026
SPRING-FRONT FORK
44026-0261
$91.36
44037
HOLDER-FORK UNDER,F.S.BLACK
44037-0167-18R
$571.25
44039
HOLDER-FORK UPPER,F.S.BLACK
44039-0167-18R
$321.19
44041
BOLT,SOCKET,FORK CYLINDER
44041-040
$6.57
44065
BUSHING-FRONT FORK
44065-0042
$21.01
44065A
BUSHING-FRONT FORK,INNER PIPE
44065-1114
$21.57
44071
DAMPER-ASSY,LH,BLACK
44071-1433-58Z
$921.79
44071A
DAMPER-ASSY,RH,BLACK
44071-1434-58Z
$921.79
44071B
DAMPER-ASSY,FORK,LH
44071-1494
$856.74
44071C
DAMPER-ASSY,FORK,RH
44071-1495
$856.74
92015
NUT
92015-1795
$5.52
92022
WASHER,FORK OUTER TUBE
92022-1298
$8.58
92026
SPACER,FORK
92026-0045
$14.02
92026A
SPACER
92026-0896
$20.62
92033
RING-SNAP
92033-1036
$6.51
92049
SEAL-OIL
92049-0073
$22.70
92055
RING-O
92055-0145
$2.55
92066
PLUG
92066-0032
$11.66
92093
SEAL,FORK OUTER TUBE
92093-1472
$23.76
92153
BOLT,SOCKET,8X40
92153-0506
$7.57
92153A
BOLT,FLANGED,8X35
92153-0649
$3.54
92154
BOLT,SOCKET,8X25
92154-4300
$4.65
92161
DAMPER,RUBBER CUSHION
92161-1490
$6.63
92200
WASHER
92200-0085
$7.63
