Description

Price

32160

FRAME-COMP,BLACK

32160-1920-10

$1,851.29

32160A

FRAME-COMP,F.S.BLACK

32160-1920-18R

$1,985.07

32160B

FRAME-COMP,M.GREEN

32160-1920-54S

$1,992.14

32160C

FRAME-COMP,N.F.M.RED

32160-1920-63D

$1,992.14

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$45.69

92049

SEAL-OIL

92049-0131

$21.42

92049A

SEAL-OIL

92049-0137

$17.46

92066

PLUG

92066-0981

$1.47

92154

BOLT,26MM

92154-4351

$28.75

92200

WASHER,27X42X2.3

92200-0753

$5.33

92200A

WASHER

92200-0781

$2.32

92210

NUT,STEERING STEM,35MM

92210-0534

$13.18

92210A

NUT,STEERING STEM,35MM

92210-0535

$23.02

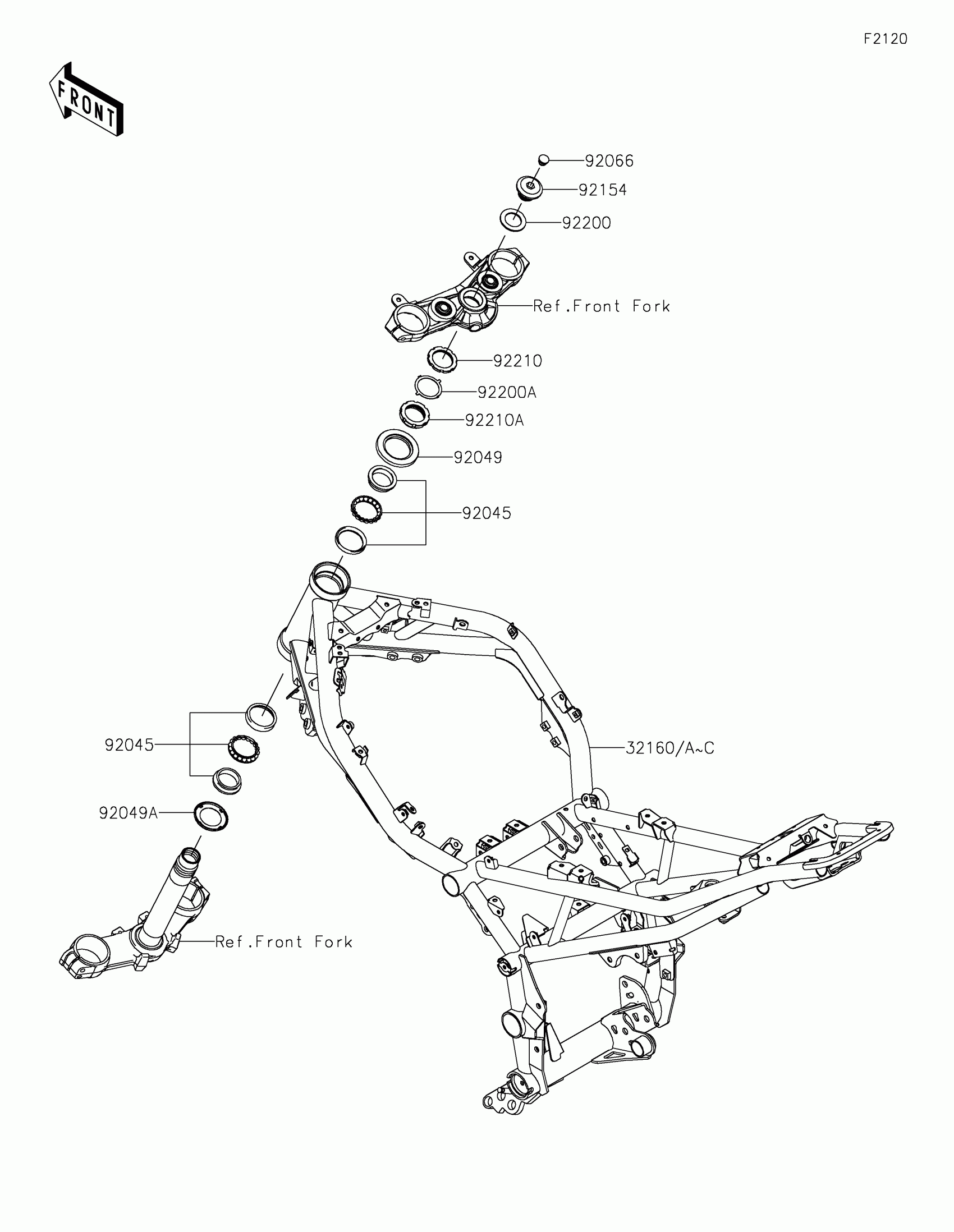

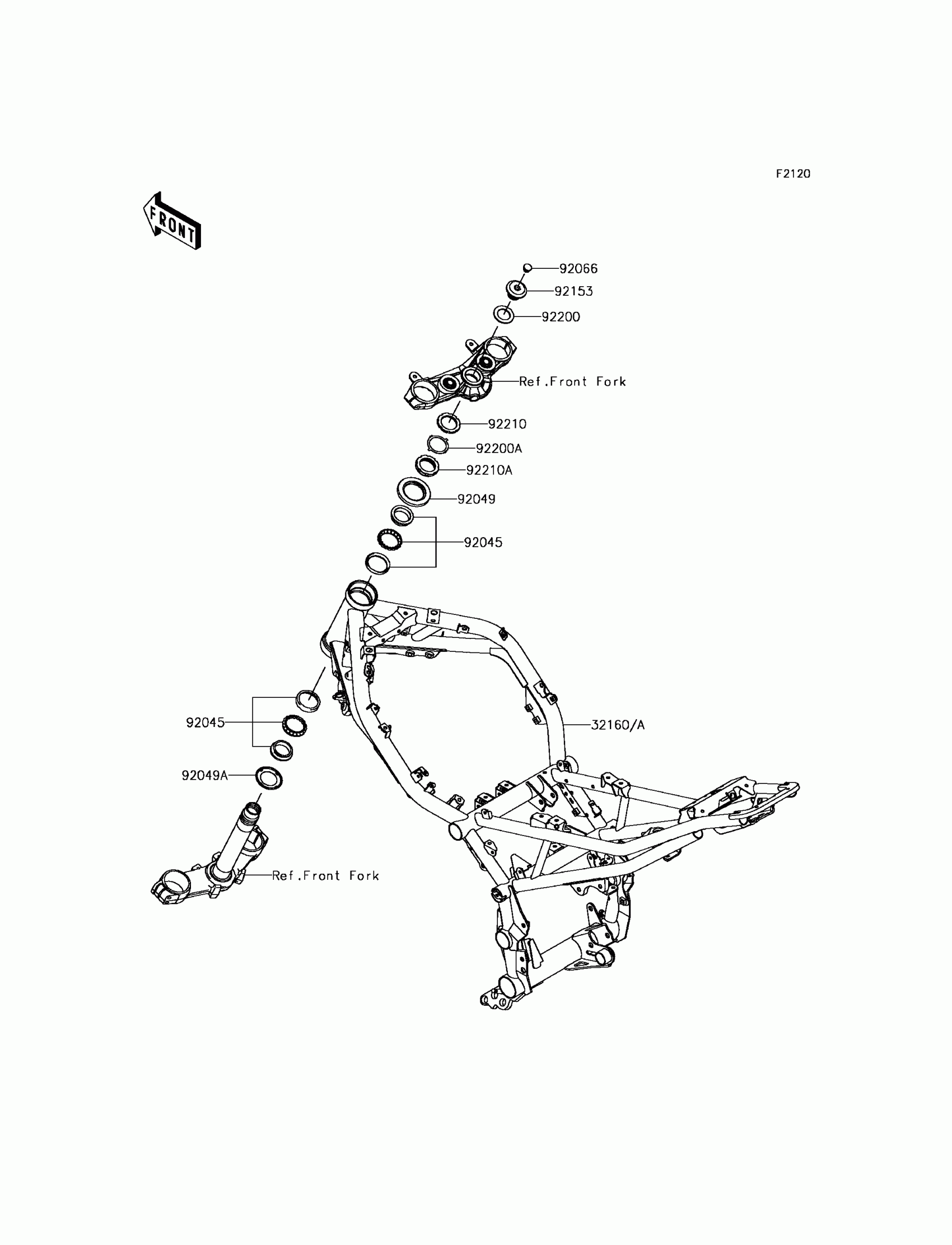

Kawasaki Z900 Frame Diagram

FRAME-COMP,BLACK

FRAME-COMP,F.S.BLACK

FRAME-COMP,M.GREEN

FRAME-COMP,N.F.M.RED

BEARING-BALL,SF07A17PX1V1

SEAL-OIL

SEAL-OIL

PLUG

BOLT,26MM

WASHER,27X42X2.3

WASHER

NUT,STEERING STEM,35MM

NUT,STEERING STEM,35MM
