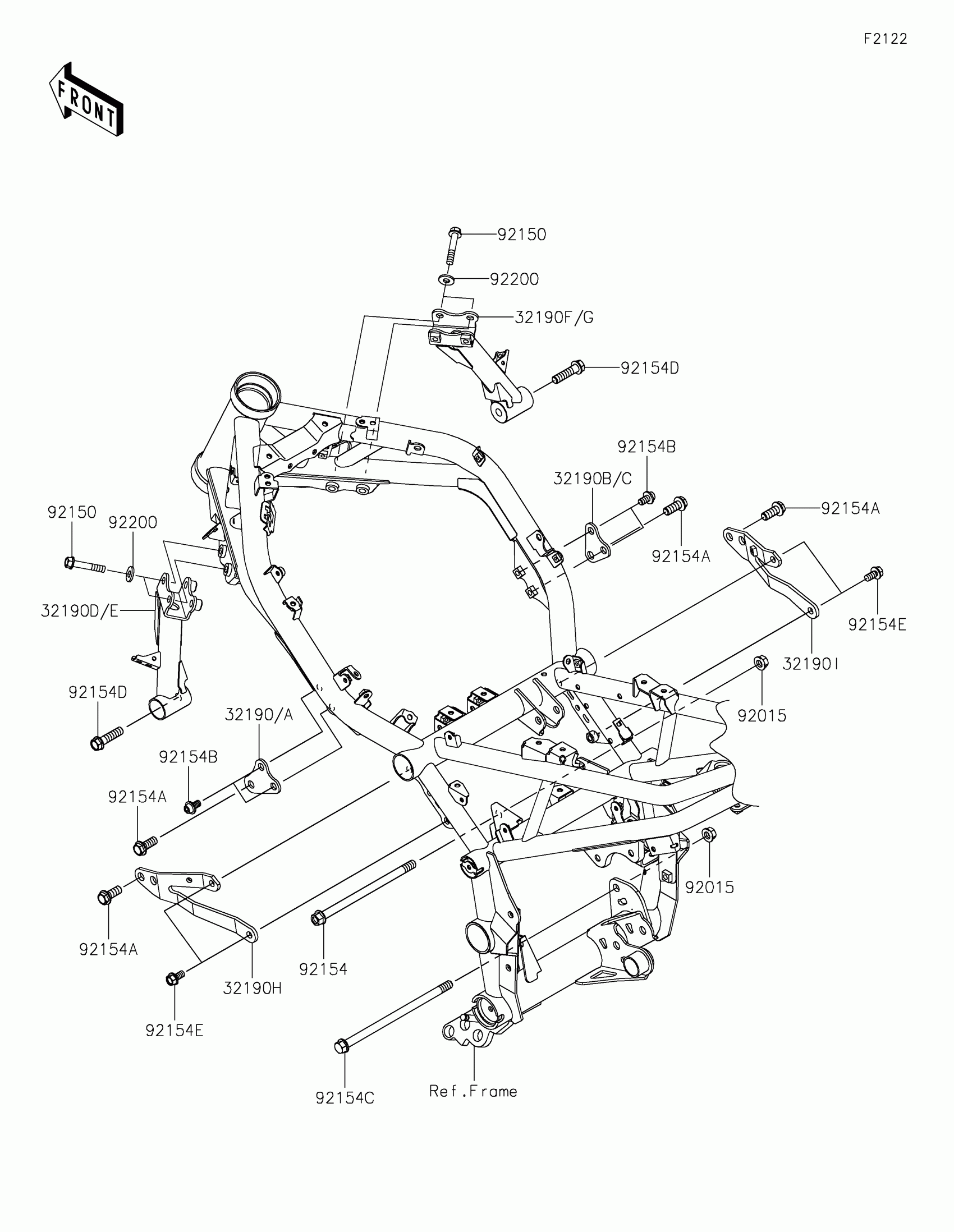

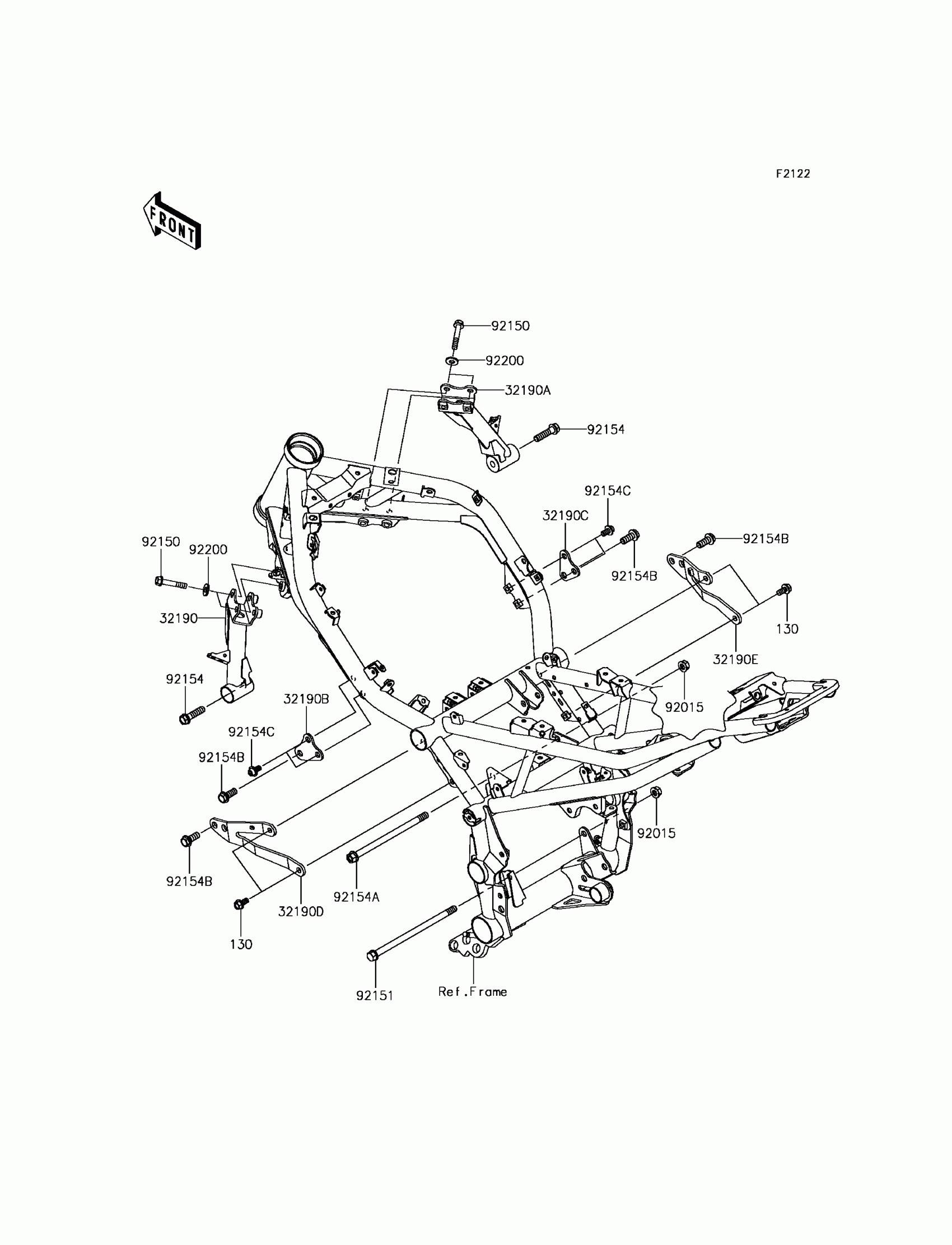

Kawasaki Z900 Engine Mount Diagram

BRACKET-ENGINE,LH,BLACK

32190-0723-10

$3.44

BRACKET-ENGINE,LH,F.S.BLACK

32190-0723-18R

$3.44

BRACKET-ENGINE,RH,BLACK

32190-0724-10

$3.44

BRACKET-ENGINE,RH,F.S.BLACK

32190-0724-18R

$3.44

BRACKET-ENGINE,LH,BLACK

32190-0831-10

$69.38

BRACKET-ENGINE,LH,F.S.BLACK

32190-0831-18R

$74.29

BRACKET-ENGINE,RH,BLACK

32190-0832-10

$63.72

BRACKET-ENGINE,RH,F.S.BLACK

32190-0832-18R

$68.20

BRACKET-ENGINE,CYL.,LH

32190-0843

$27.22

BRACKET-ENGINE,CYL.,RH

32190-0844

$27.22

NUT,FLANGED,10MM

92015-1180

$4.31

BOLT,FLANGED,8X45

92150-1487

$6.57

BOLT,FLANGED,10X170

92154-0840

$19.32

BOLT,FLANGED,10X25

92154-2251

$4.60

BOLT,SOCKET,8X14

92154-2252

$2.70

BOLT,FLANGED,10X195

92154-4070

$13.60

BOLT,FLANGED,10X40

92154-4122

$5.79

BOLT-FLANGED,8X16

92154-4297

$2.49

WASHER,8.5X18X2.3

92200-2481

$0.88
