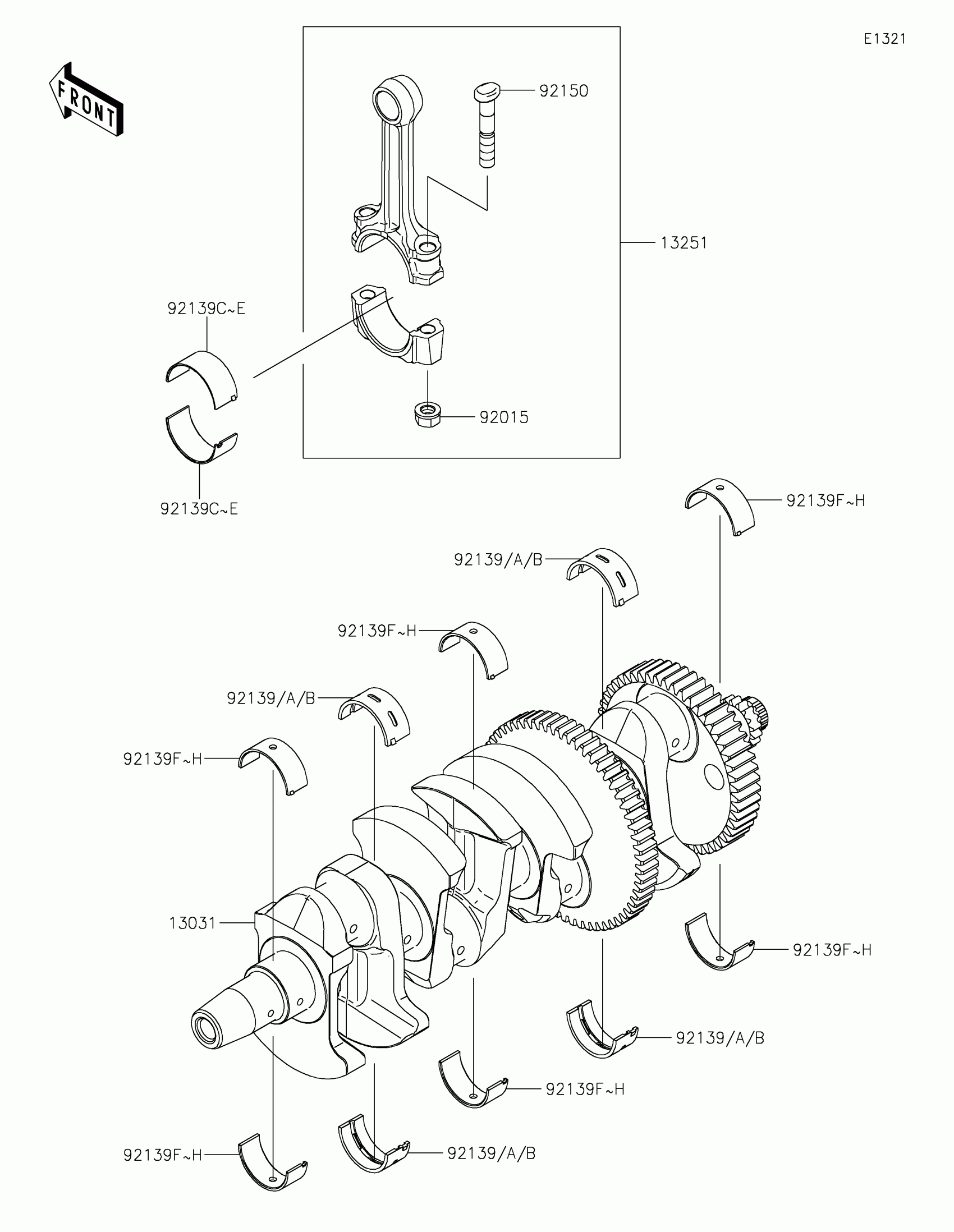

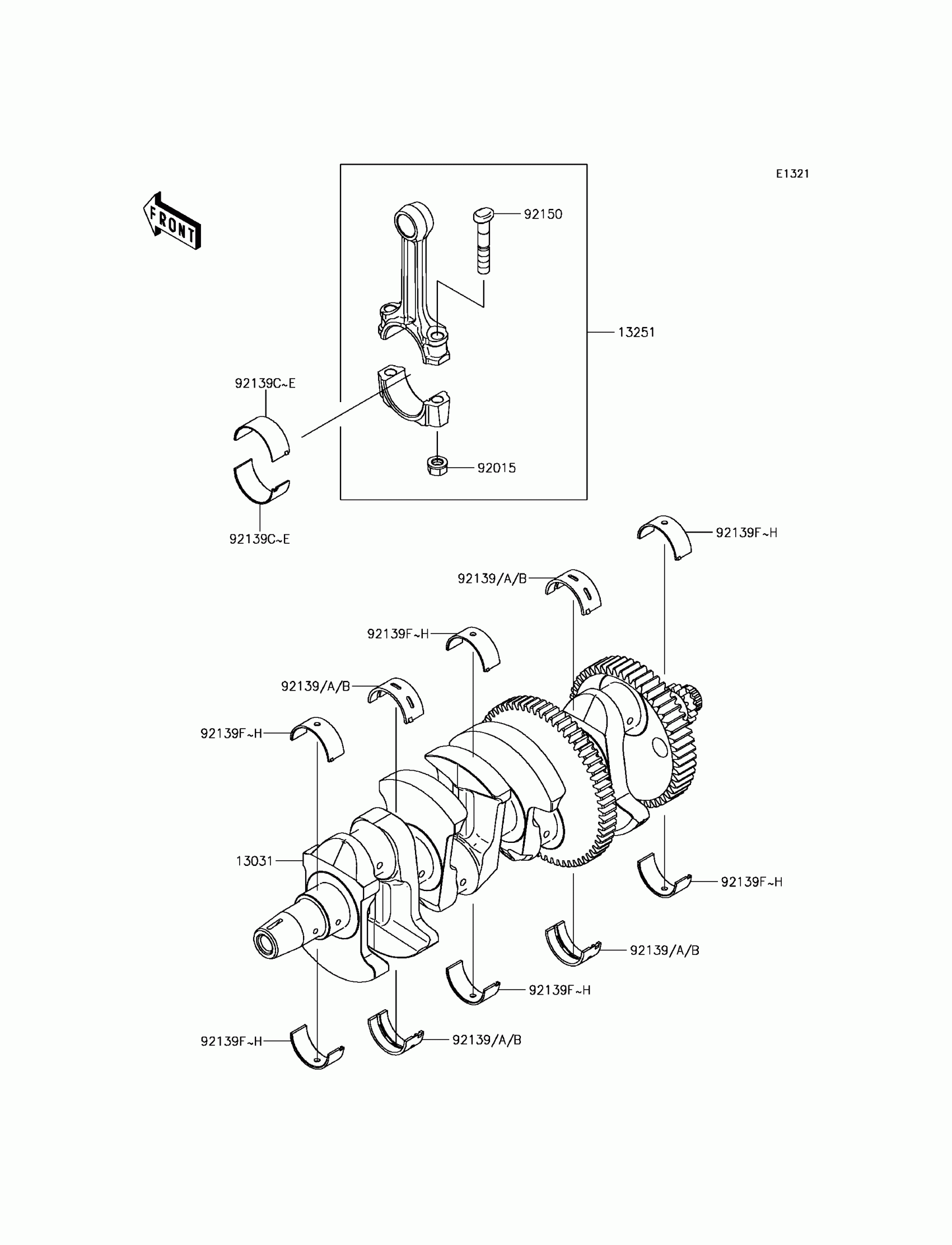

Kawasaki Z900 Crankshaft Diagram

CRANKSHAFT-COMP

13031-0945

$1,201.45

ROD-ASSY-CONNECTING,II

13251-0739-II

$212.79

NUT,FLANGED,8MM

92015-1311

$7.34

BUSHING,CRANK #2,BLUE

92139-0032

Unavailable

BUSHING,CRANK #2,BLACK

92139-0033

$19.64

BUSHING,CRANK #2,BROWN

92139-0034

Unavailable

BUSHING,CRANK PIN,BLUE

92139-0122

Unavailable

BUSHING,CRANK PIN,BLACK

92139-0123

$22.09

BUSHING,CRANK PIN,BROWN

92139-0124

Unavailable

BUSHING,CRANK,#1,BLUE

92139-0217

Unavailable

BUSHING,CRANK,#1,BLACK

92139-0218

$21.52

BUSHING,CRANK,#1,BROWN

92139-0219

Unavailable

BOLT,CONNECTING ROD,8MM

92150-1216

$17.60
