Description

Price

16082

PUMP-ASSY-OIL,ABS

16082-0810

$1,227.69

23062

BRACKET-COMP,ABS UNIT

23062-1235

$5.57

43095

HOSE-BRAKE,FR,444MM

43095-0970

$156.93

43095A

HOSE-BRAKE,FR M/C-ABS UNIT

43095-1680

$303.76

43095B

HOSE-BRAKE,FR CALIPER-ABS UNIT

43095-1682

$341.64

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92075

DAMPER

92075-277

$2.84

92153

BOLT,OIL,L=23

92153-0627

$5.48

92153A

BOLT,OIL,L=37

92153-0628

$11.83

92154

BOLT,BANJO,10X22

92154-1138

$7.40

92154A

BOLT,FLANGED,6X25

92154-2154

$3.02

92154B

BOLT,FLANGED,6X12

92154-4121

$1.94

92154C

BOLT,SOCKET,6X10

92154-4298

$1.63

92171

CLAMP

92171-0818

$4.41

92173

CLAMP,HOSE&SENSOR LINE

92173-1613

$1.42

92173A

CLAMP,FR FENDER

92173-1634

$4.60

92173B

CLAMP

92173-2106

$2.80

130

BOLT-FLANGED,6X22

130BA0622

$1.29

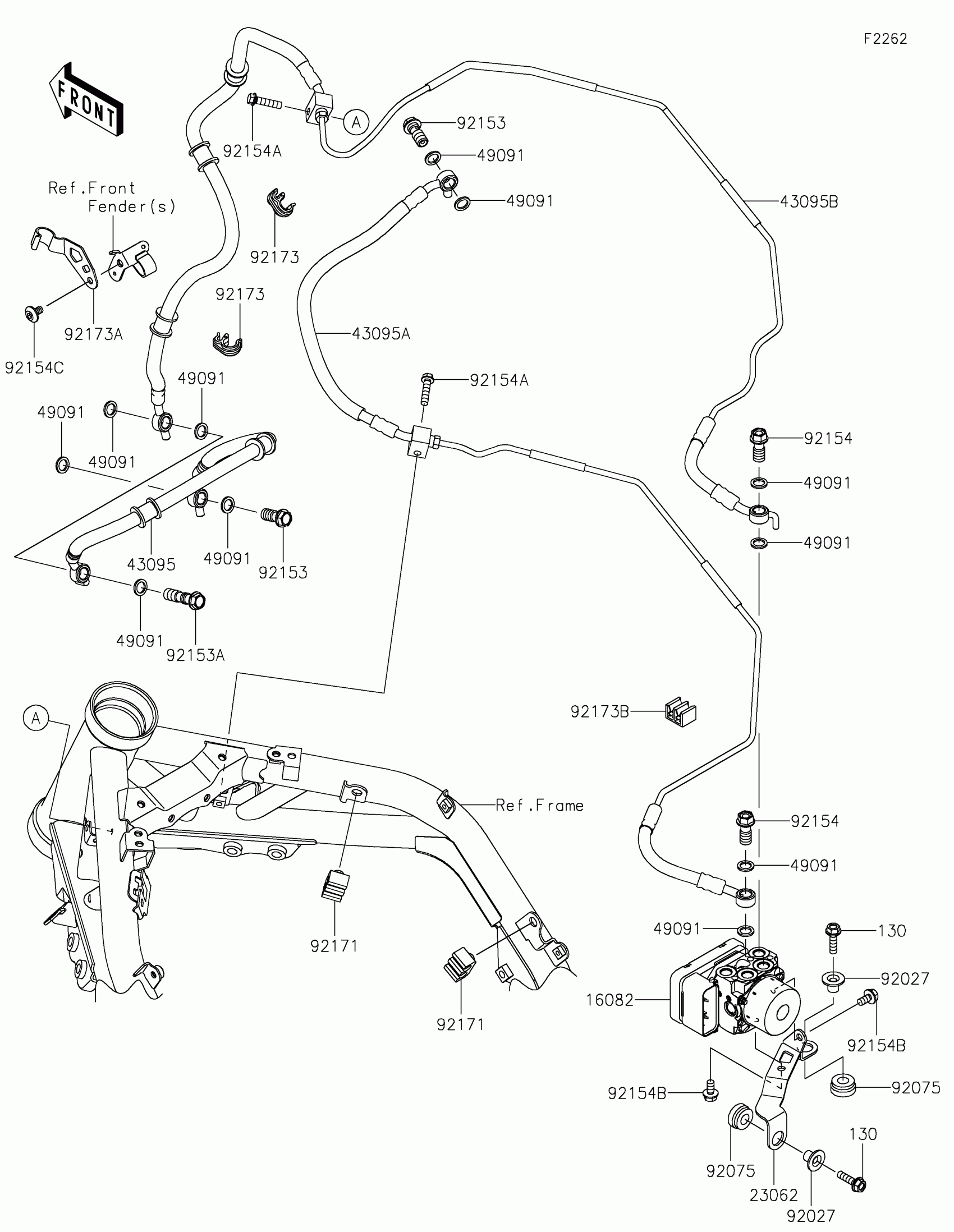

Kawasaki Z900 Brake Piping Diagram

PUMP-ASSY-OIL,ABS

BRACKET-COMP,ABS UNIT

HOSE-BRAKE,FR,444MM

HOSE-BRAKE,FR M/C-ABS UNIT

HOSE-BRAKE,FR CALIPER-ABS UNIT

WASHER-SEAL,10.1X14.5X1.5

COLLAR,FLANGED,L=12.1,BLACK

DAMPER

BOLT,OIL,L=23

BOLT,OIL,L=37

BOLT,BANJO,10X22

BOLT,FLANGED,6X25

BOLT,FLANGED,6X12

BOLT,SOCKET,6X10

CLAMP

CLAMP,HOSE&SENSOR LINE

CLAMP,FR FENDER

CLAMP

BOLT-FLANGED,6X22
