Description

Price

11010

FILTER-ASSY-AIR

11010-0949

$333.21

11013

ELEMENT-AIR FILTER

11013-0760

$58.08

11061

GASKET,CASE

11061-1215

$9.74

11061A

GASKET,ELEMENT

11061-1216

$6.89

13045

RECEIVER-OIL

13045-1057

$9.82

14073

DUCT,#1,#4

14073-0943

$26.91

14073A

DUCT,#2

14073-0944

$41.06

14073B

DUCT,#3

14073-0945

$41.06

16126

VALVE,AIR SWITCHING

16126-0745

$189.89

92037

CLAMP

92037-1712

$5.00

92152

COLLAR,6.5X10.5X13.1

92152-0547

$5.65

92160

DAMPER

92160-1162

$5.00

92170

CLAMP

92170-1060

$8.10

92172

SCREW,TAPPING,5X20

92172-0483

Unavailable

92173

CLAMP,58MM

92173-2484

$14.34

92190

TUBE,6X9X300

92190-1253

$5.54

92192

TUBE,HEAD ASV

92192-0843

$2.76

92192A

TUBE,BLOWBY

92192-1692

$26.67

92192B

TUBE,ASV-A/C

92192-1693

$7.82

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

130

BOLT-FLANGED,6X30

130BB0630

$4.43

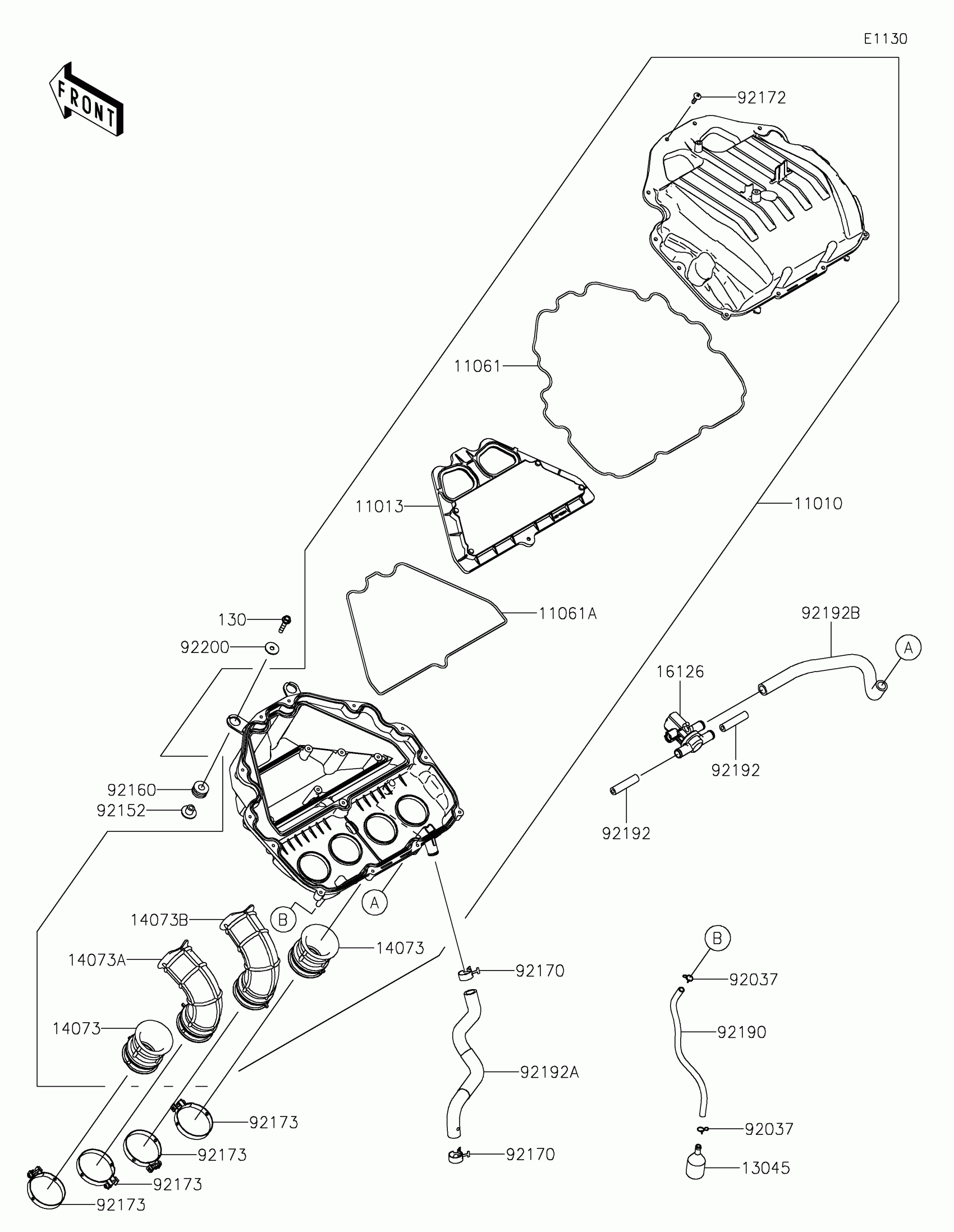

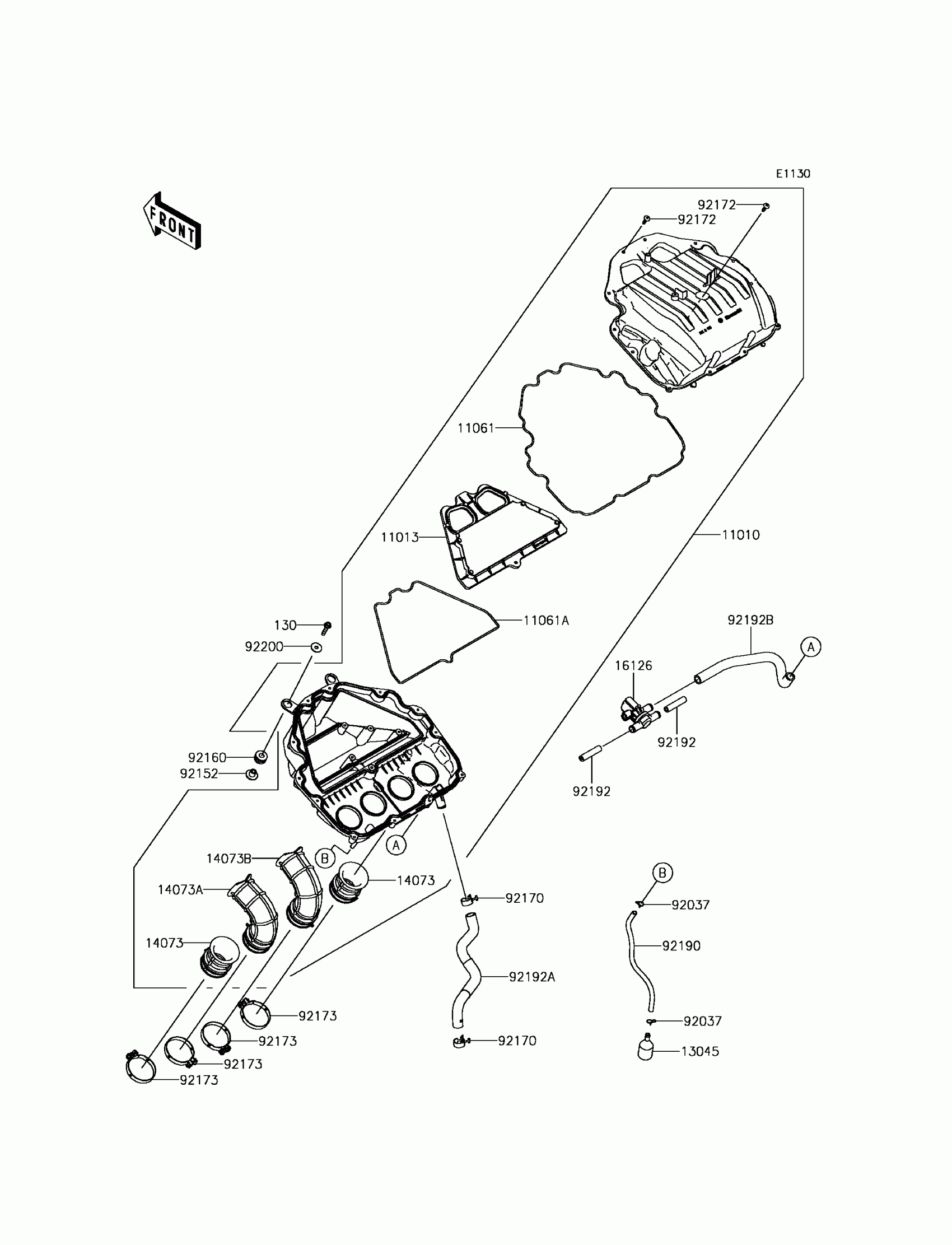

Kawasaki Z900 Air Cleaner Diagram

FILTER-ASSY-AIR

ELEMENT-AIR FILTER

GASKET,CASE

GASKET,ELEMENT

RECEIVER-OIL

DUCT,#1,#4

DUCT,#2

DUCT,#3

VALVE,AIR SWITCHING

CLAMP

COLLAR,6.5X10.5X13.1

DAMPER

CLAMP

SCREW,TAPPING,5X20

CLAMP,58MM

TUBE,6X9X300

TUBE,HEAD ASV

TUBE,BLOWBY

TUBE,ASV-A/C

WASHER,6.5X22X1.6

BOLT-FLANGED,6X30
