2025 Kawasaki Z900 ABS Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2025 Kawasaki Z900 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

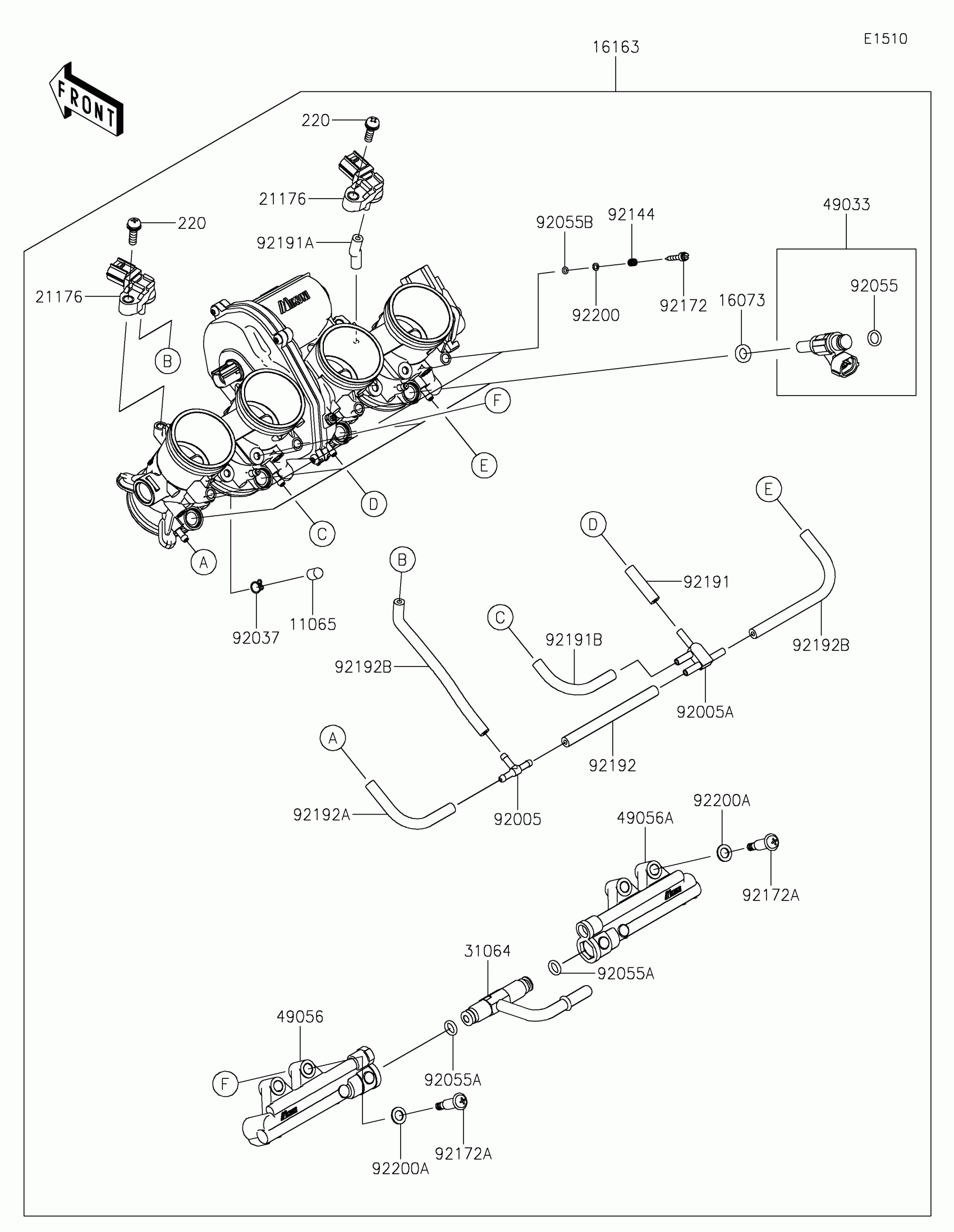

2025 Kawasaki Z900 ABS Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0072

1

$5.73

In stock

16073

INSULATOR

16073-0848

1

$11.03

In stock

16163

THROTTLE-ASSY

16163-1326

1

$1,928.51

In stock

21176

SENSOR,PRESSURE

21176-0906

1

$226.99

In stock

31064

PIPE-COMP

31064-0714

1

$87.59

In stock

49033

NOZZLE-INJECTION

49033-0563

1

$127.27

In stock

49056

PIPE-INJECTION,LH

49056-0569

1

$102.66

In stock

49056A

PIPE-INJECTION,RH

49056-0570

1

$93.85

In stock

92005

FITTING

92005-1380

1
Out of stock

92005A

FITTING

92005-1476

1

$13.73

In stock

92037

CLAMP,TUBE

92037-1124

1

$4.83

In stock

92055

1

$2.42

In stock

92055A

RING-O

92055-0761

1

$7.31

In stock

92055B

RING-O,AIR SCREW

92055-1658

1

$4.75

In stock

92144

1

$4.54

In stock

92172

SCREW

92172-0156

1

$14.39

In stock

92172A

1

$2.44

In stock

92191

TUBE,3.2X7.4X30

92191-1550

1

$1.98

In stock

92191A

TUBE,3.2X7.4X40

92191-1551

1

$2.27

In stock

92191B

TUBE,3.2X7.4X70

92191-1552

1

$3.71

In stock

92192

TUBE,3.2X7.4X90

92192-1265

1
Out of stock

92192A

TUBE,3.2X7.4X80

92192-2727

1

$9.92

In stock

92192B

TUBE,3.2X7.4X125

92192-2729

1

$9.92

In stock

92200

WASHER,PILOT AIR SCREW

92200-1564

1
Out of stock

92200A

WASHER

92200-3807

1
Out of stock

220

1

$1.73

In stock
