2017 Kawasaki Z900 ABS Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2017 Kawasaki Z900 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

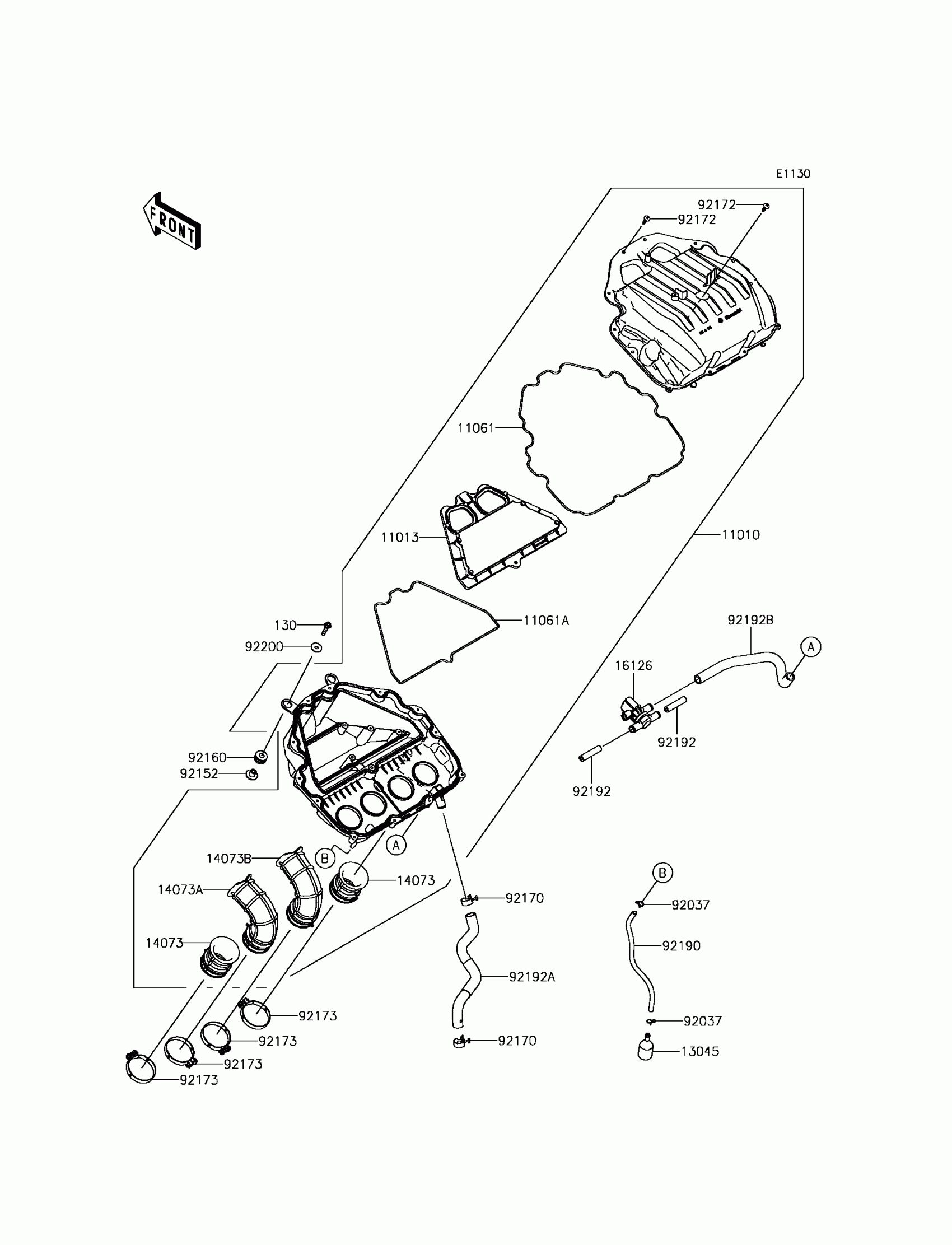

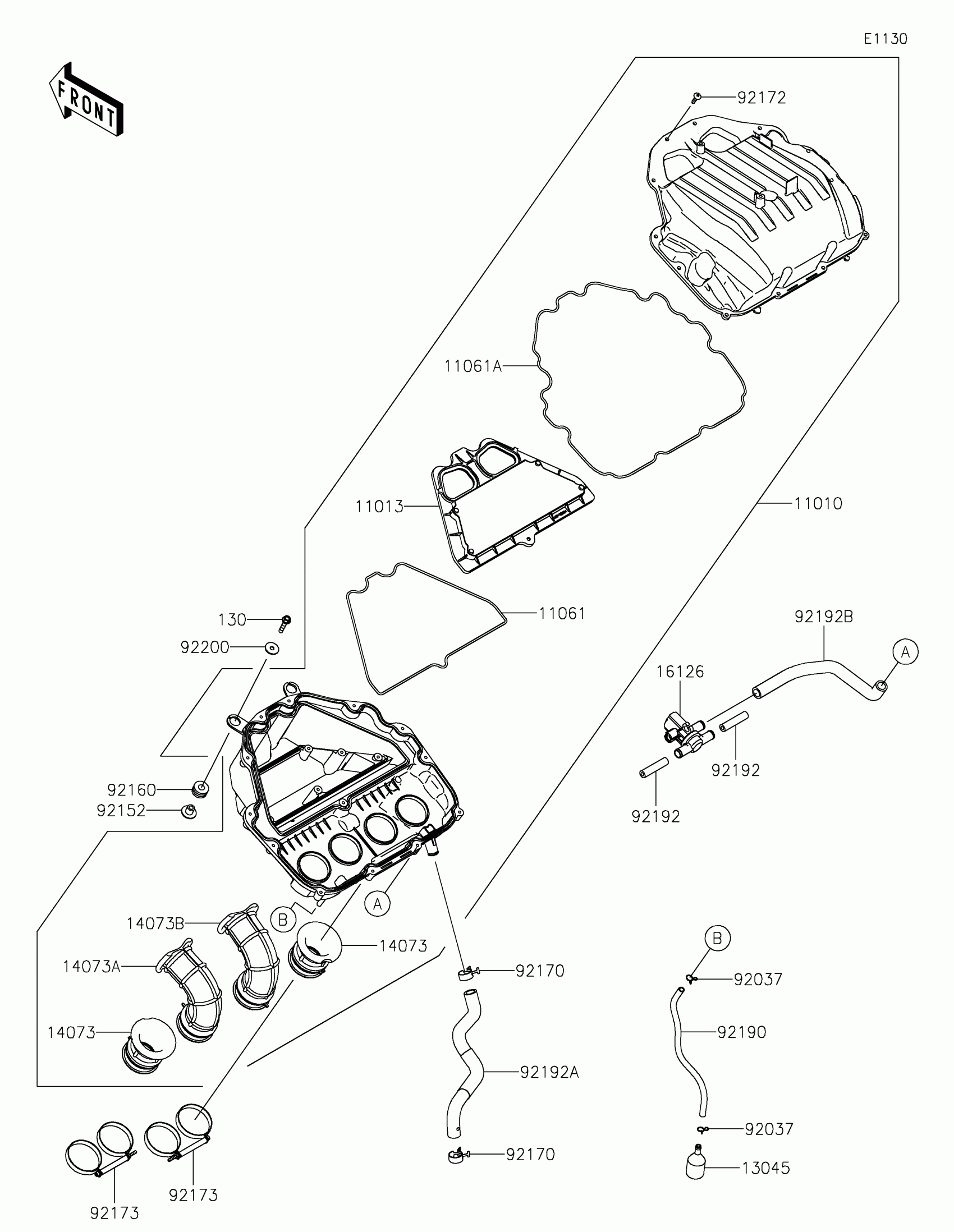

2017 Kawasaki Z900 ABS Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X30

130BB0630

1

$3.52

In stock

11010

FILTER-ASSY-AIR

11010-0858

1

$352.64

In stock

11013

ELEMENT-AIR FILTER

11013-0760

1

$59.21

In stock

11061

GASKET,CASE

11061-1215

1

$9.42

In stock

11061A

GASKET,ELEMENT

11061-1216

1

$5.97

In stock

13045

RECEIVER-OIL

13045-1057

1

$7.79

In stock

14073

DUCT,#1,#4

14073-0852

1

$24.07

In stock

14073A

DUCT,#2

14073-0853

1

$41.85

In stock

14073B

DUCT,#3

14073-0854

1

$41.85

In stock

16126

VALVE,AIR SWITCHING

16126-0038

1

$193.92

In stock

92037

CLAMP

92037-1712

1

$3.97

In stock

92152

1

$4.47

In stock

92160

DAMPER

92160-1162

1

$3.97

In stock

92170

CLAMP

92170-1060

1

$7.93

In stock

92172

SCREW,TAPPING,5X20

92172-0483

1
Out of stock

92173

CLAMP,58MM

92173-0927

1

$13.63

In stock

92190

TUBE,6X9X300

92190-1253

1

$4.85

In stock

92192

TUBE,HEAD ASV

92192-0843

1
Out of stock

92192A

TUBE,BLOWBY

92192-1692

1
Out of stock

92192B

TUBE,ASV-A/C

92192-1693

1
Out of stock

92200

WASHER,6.5X22X1.6

92200-1087

1
Out of stock
