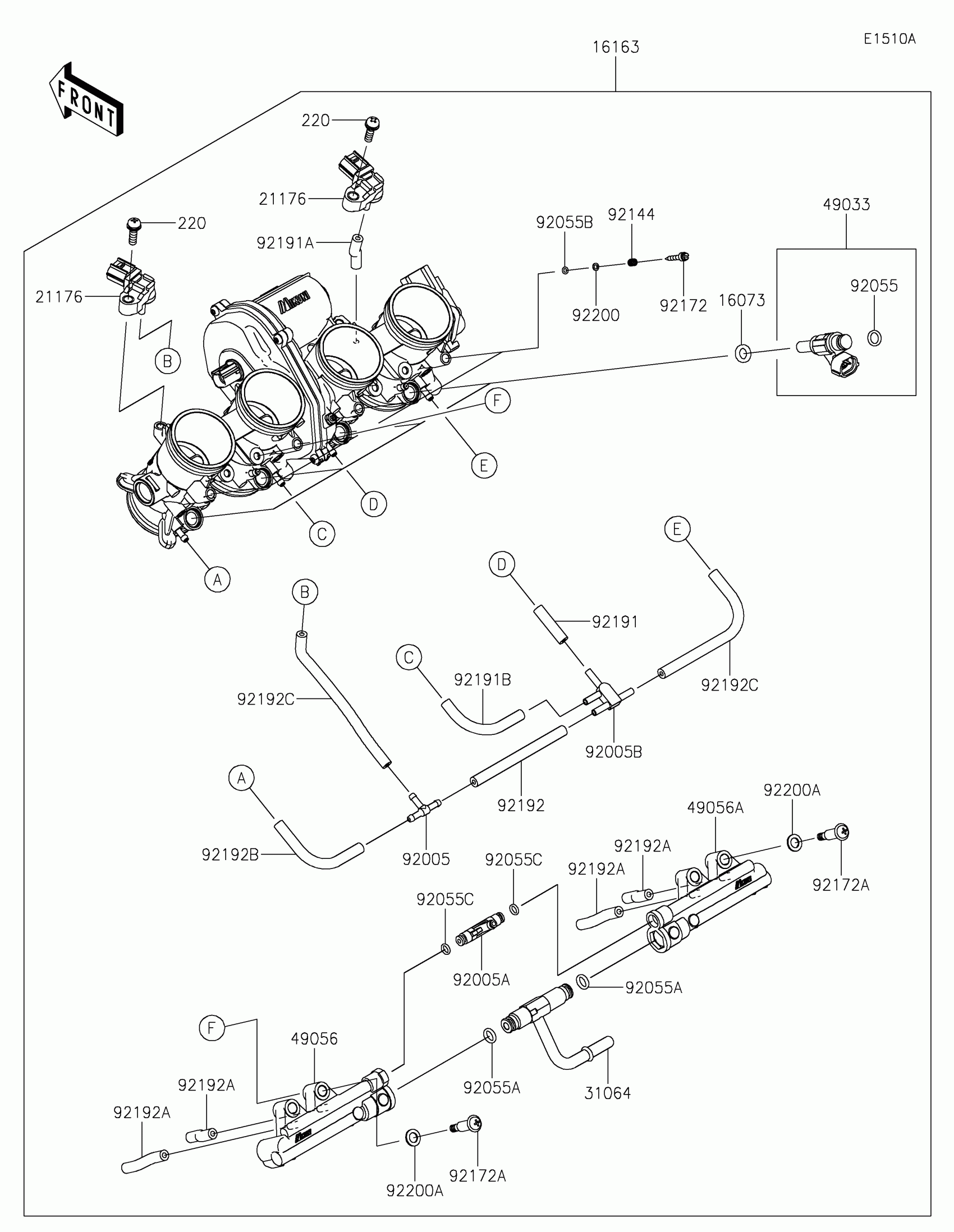

Kawasaki Z900 ABS Throttle(CA) Diagram
#
Description
Price
16073
INSULATOR
16073-0848
$11.51
16163
THROTTLE-ASSY
16163-1322
$1,879.31
21176
SENSOR,PRESSURE
21176-0906
$222.28
31064
PIPE-COMP
31064-0714
$85.93
49033
NOZZLE-INJECTION
49033-0563
$124.66
49056
PIPE-INJECTION,LH
49056-0569
$100.71
49056A
PIPE-INJECTION,RH
49056-0570
$92.07
92005
FITTING
92005-1380
$16.65
92005A
FITTING
92005-1475
$16.15
92005B
FITTING
92005-1476
$14.47
92055
RING-O,INJECTION NOZZLE
92055-0124
$2.97
92055A
RING-O
92055-0761
$7.40
92055B
RING-O,AIR SCREW
92055-1658
$6.00
92055C
RING-O
92055-1758
$14.82
92144
SPRING,THROTTLE STOP SCREW
92144-1674
$5.74
92172
SCREW
92172-0156
$15.20
92172A
SCREW,PIPE INJECTION
92172-0828
$3.02
92191
TUBE,3.2X7.4X30
92191-1550
$2.39
92191A
TUBE,3.2X7.4X40
92191-1551
$2.78
92191B
TUBE,3.2X7.4X70
92191-1552
$4.14
92192
TUBE,3.2X7.4X90
92192-1265
$15.89
92192A
TUBE,3.5X7.5X40
92192-1494
$9.84
92192B
TUBE,3.2X7.4X80
92192-2727
$10.28
92192C
TUBE,3.2X7.4X125
92192-2729
$10.28
92200
WASHER,PILOT AIR SCREW
92200-1564
$2.58
92200A
WASHER
92200-3807
$6.00
220
SCREW-PAN-CROS,5X16
220AA0516
$2.06
