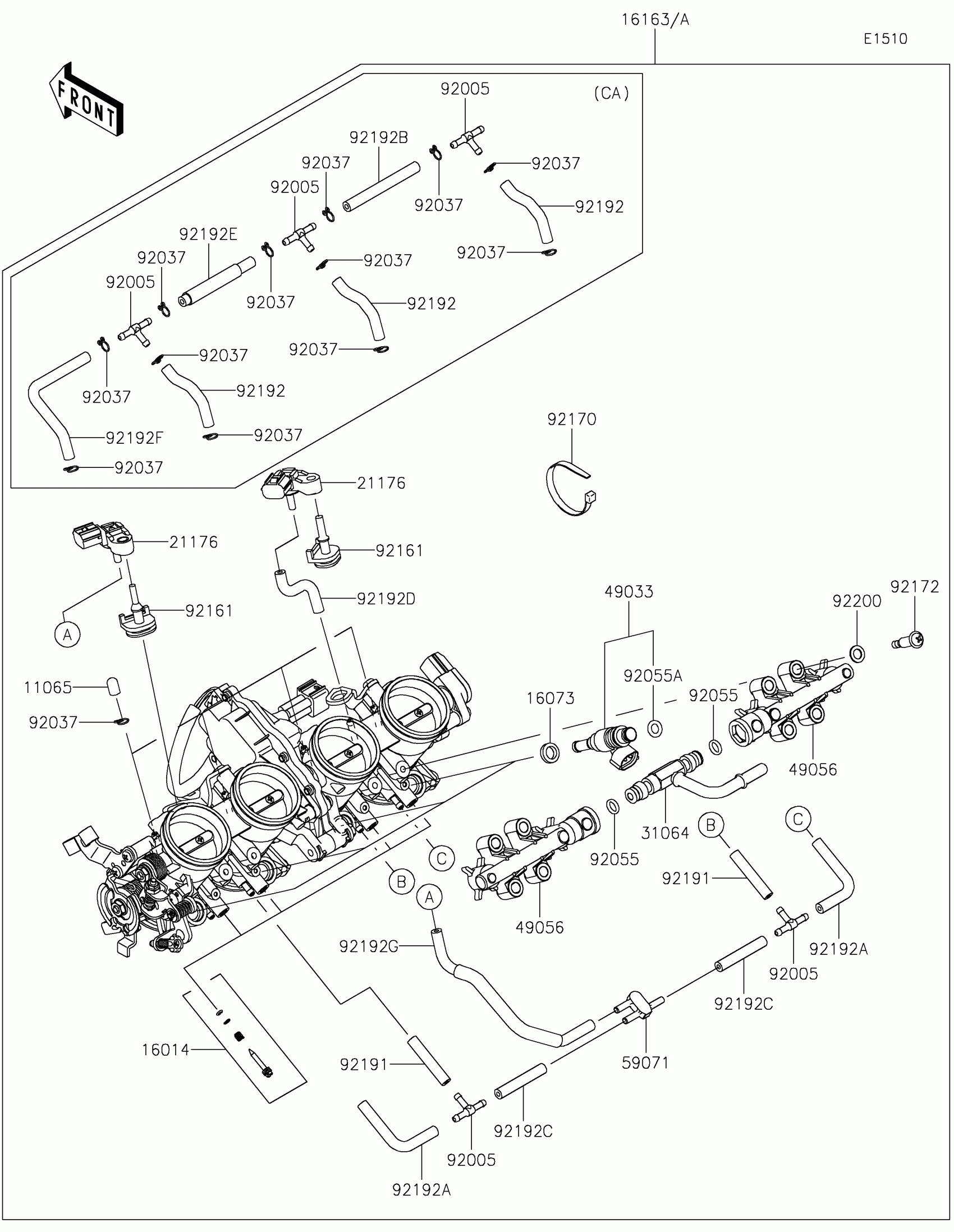

Kawasaki Z900 ABS Throttle Diagram
#
Description
Price
16014
SCREW-PILOT AIR
16014-0017
$27.26
16073
INSULATOR,INJECTER
16073-1123
$9.73
16163A
THROTTLE-ASSY
16163-1204
$1,933.68
21176
SENSOR,PRESSURE
21176-0906
$222.28
31064
PIPE-COMP
31064-0692
$85.93
49033
NOZZLE-INJECTION
49033-0034
$122.38
49056
PIPE-INJECTION
49056-0049
$103.61
59071
JOINT
59071-0022
$17.44
92005
FITTING
92005-1380
$16.65
92037
CLAMP,TUBE
92037-1124
$6.11
92055
RING-O
92055-0761
$7.40
92055A
RING-O,REGULATOR-FUEL
92055-2187
$3.00
92161
DAMPER
92161-0673
$5.54
92170
CLAMP
92170-3749
$3.57
92172
SCREW,PIPE INJECTION
92172-0828
$3.02
92191
TUBE,3.2X7.4X40
92191-1551
$2.78
92192
TUBE,3.5X7.5X55
92192-1349
$13.73
92192A
TUBE,3.2X7.4X75
92192-1446
$11.40
92192B
TUBE,3.5X7.5X70
92192-1447
$13.73
92192C
TUBE,3.2X7.4X45
92192-1617
$7.52
92192D
TUBE,3.2X7.4X55
92192-1802
$11.19
92192E
TUBE,3.5X7.5X70
92192-1803
$13.73
92192F
TUBE,3.5X7.5X115
92192-1804
$24.31
92192G
TUBE,3.2X7.4X175
92192-1805
$26.91
92200
WASHER
92200-3807
$6.00
11065
CAP
11065-0072
$7.20
16163
THROTTLE-ASSY
16163-1203
$1,933.68
92005
FITTING
92005-1380
$16.65
92037
CLAMP,TUBE
92037-1124
$6.11
