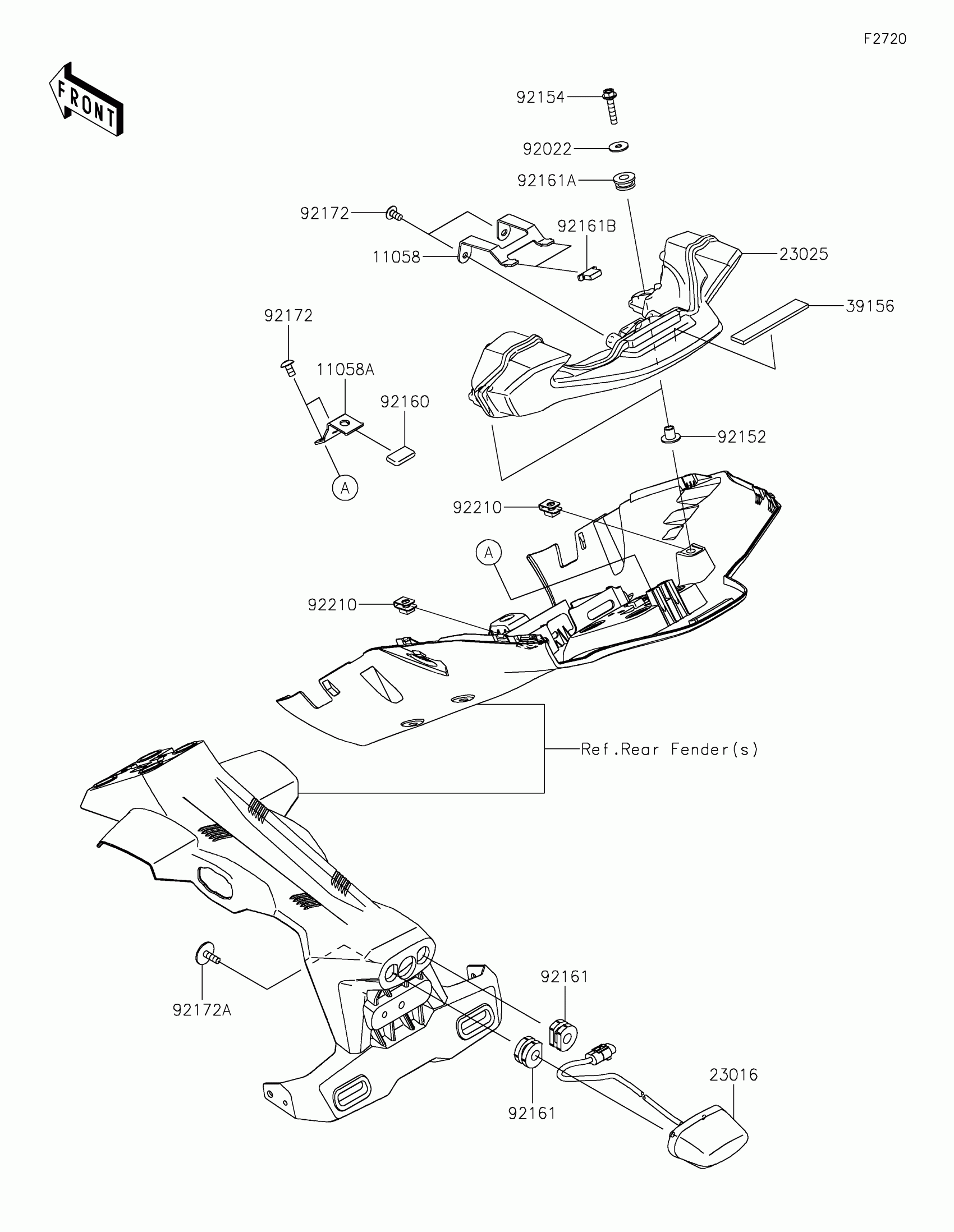

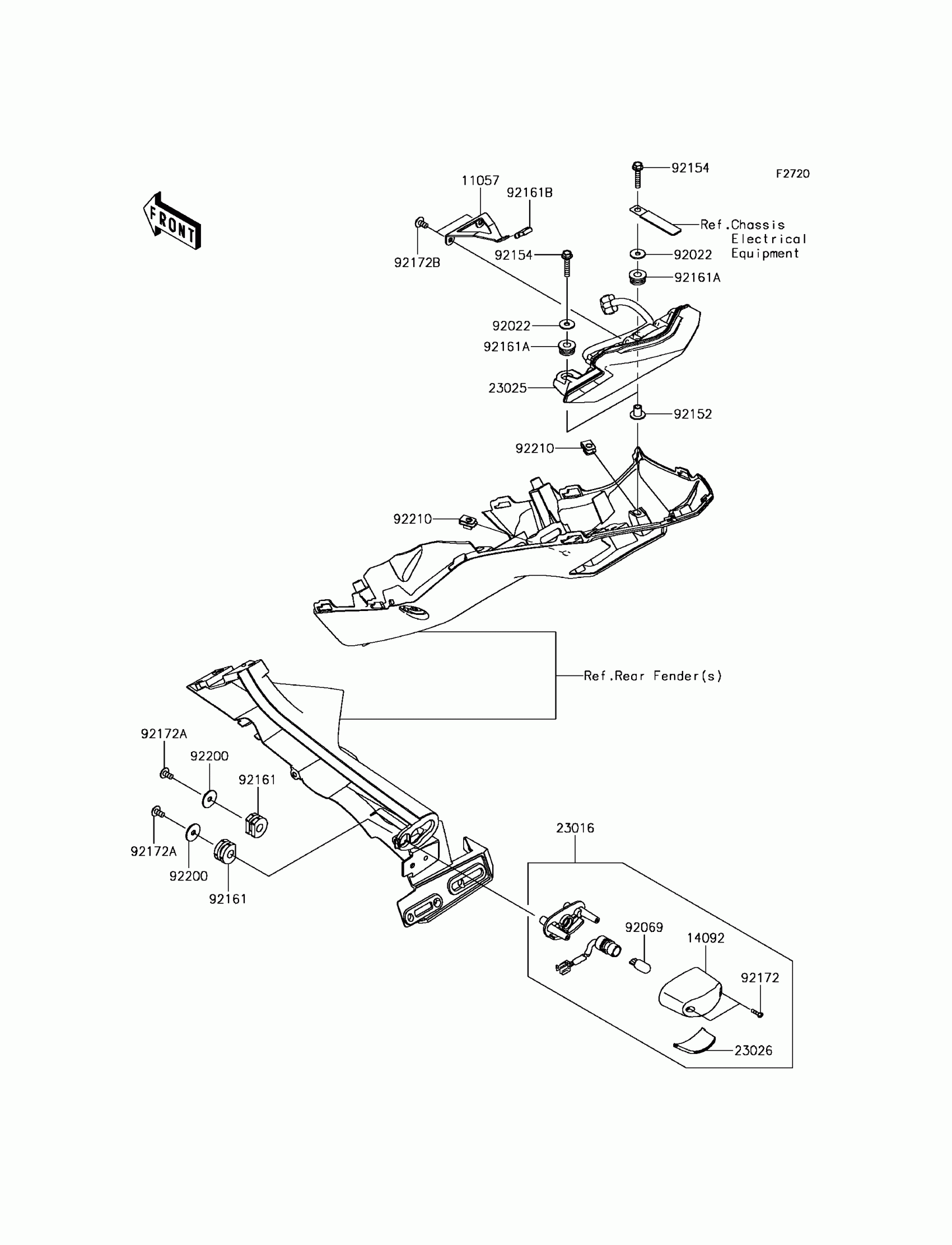

Kawasaki Z900 ABS Taillight(s) Diagram

Description

Price

11058

BRACKET,TAIL LAMP,FR

11058-1602

$5.09

11058A

BRACKET,TAIL LAMP,RR

11058-1603

$2.46

23016

LAMP-ASSY,LICENSE,LED

23016-0639

$65.84

23025

LAMP-TAIL,LED

23025-0404

$274.64

39156

PAD,15X76X3

39156-1928

$1.02

92022

WASHER,5.2X16X1.2

92022-263

$1.66

92152

COLLAR

92152-1592

$3.02

92154

BOLT,FLANGED,5X25

92154-0846

$1.19

92160

DAMPER

92160-1190

$4.08

92161

DAMPER

92161-0776

$5.54

92161A

DAMPER,8X18X8.1

92161-1369

$1.63

92161B

DAMPER

92161-1917

$1.71

92172

SCREW,5X10

92172-0864

$1.34

92172A

SCREW,TAPTITE,5X16

92172-1427

$3.19

92210

NUT,PLATE,5MM

92210-0935

$1.97
