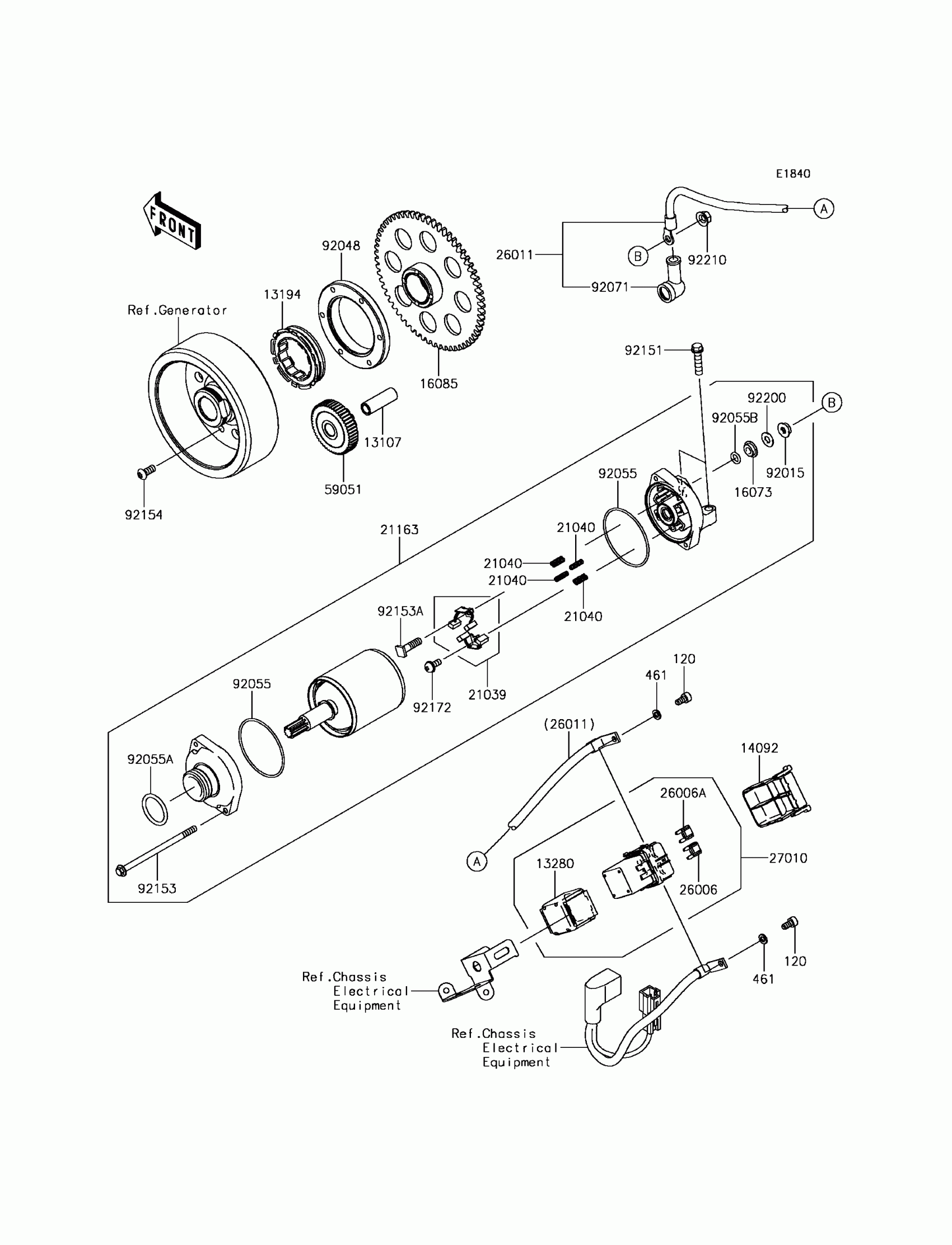

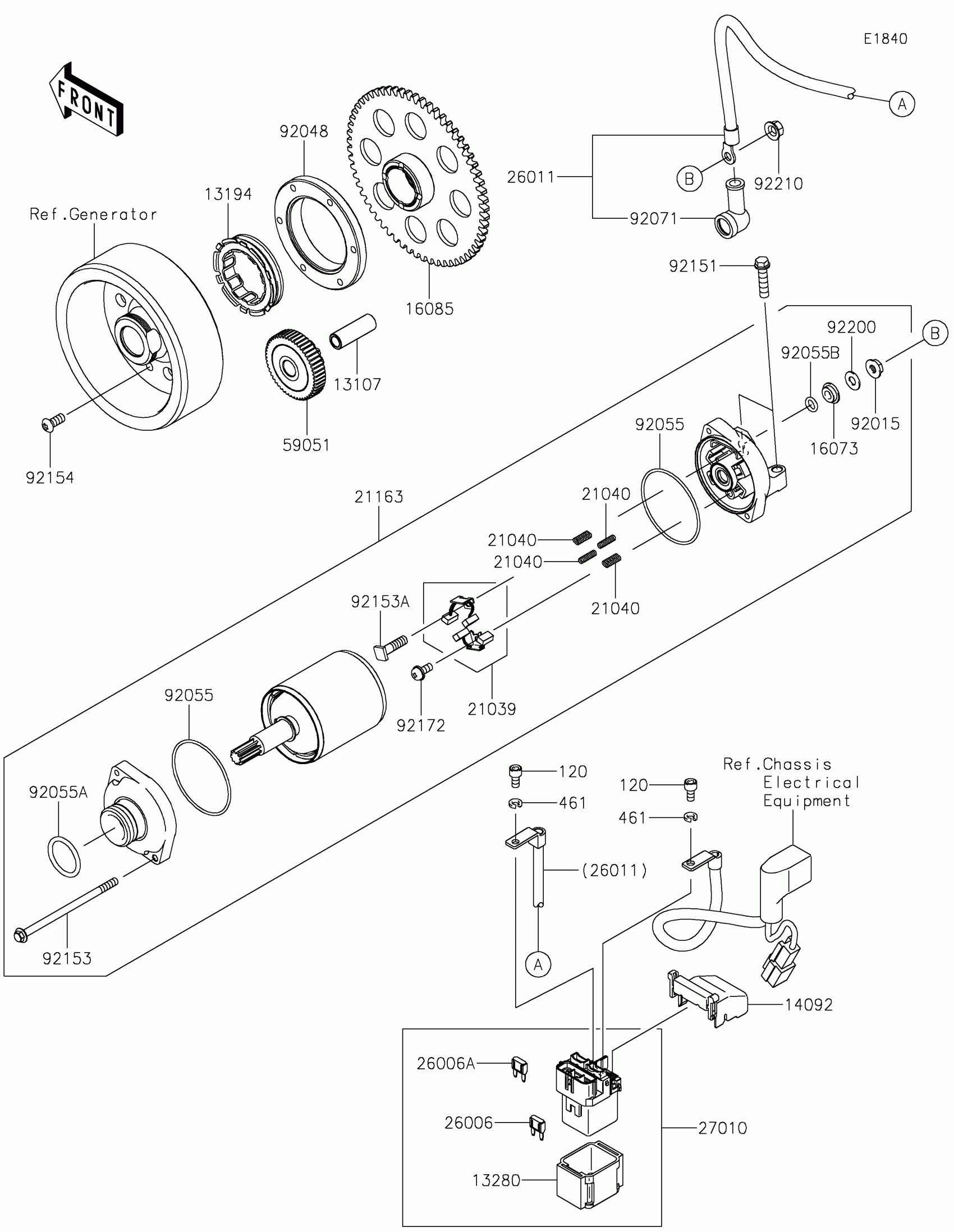

Kawasaki Z900 ABS Starter Motor Diagram
#
Description
Price
13107
SHAFT,IDLER GEAR
13107-1377
$6.22
13194
CLUTCH-ONEWAY
13194-1096
$106.12
13280
HOLDER,MAGNETIC SWITCH
13280-0814
$11.88
14092
COVER
14092-0109
$9.50
16073
INSULATOR
16073-0053
$11.93
16085
GEAR,CLUTCH ONEWAY
16085-0609
$125.33
21039
BRUSH,CARBON
21039-0004
$117.72
21040
SPRING-BRUSH
21040-0003
$9.79
21163
STARTER-ELECTRIC
21163-0770
$605.62
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
$6.12
26006A
FUSE,MINI BLADE,30A,GREEN
26006-1080
$4.87
26011
WIRE-LEAD
26011-2480
$37.12
27010
SWITCH
27010-0770
$108.75
59051
GEAR-SPUR,IDLER
59051-0762
$93.61
92015
NUT,STARTER MOTOR
92015-1476
$4.31
92048
RACE
92048-0018
$63.92
92055
RING-O
92055-0136
$7.75
92055A
RING-O
92055-1276
$9.91
92055B
RING-O,4.5X2.0
92055-1370
$4.69
92071
GROMMET
92071-0024
$10.21
92151
BOLT,FLANGED-SMALL,6X25
92151-1930
$2.80
92153
BOLT
92153-1850
$11.93
92153A
BOLT
92153-1866
$4.65
92154
BOLT,TORX,6X14
92154-2448
$1.17
92172
SCREW
92172-0334
$4.65
92200
WASHER
92200-0386
$4.65
92210
NUT,6MM
92210-0188
$2.15
120
BOLT-SOCKET,5X10
120CB0510
$1.64
461
WASHER-SPRING,5MM
461DB0500
$1.50
