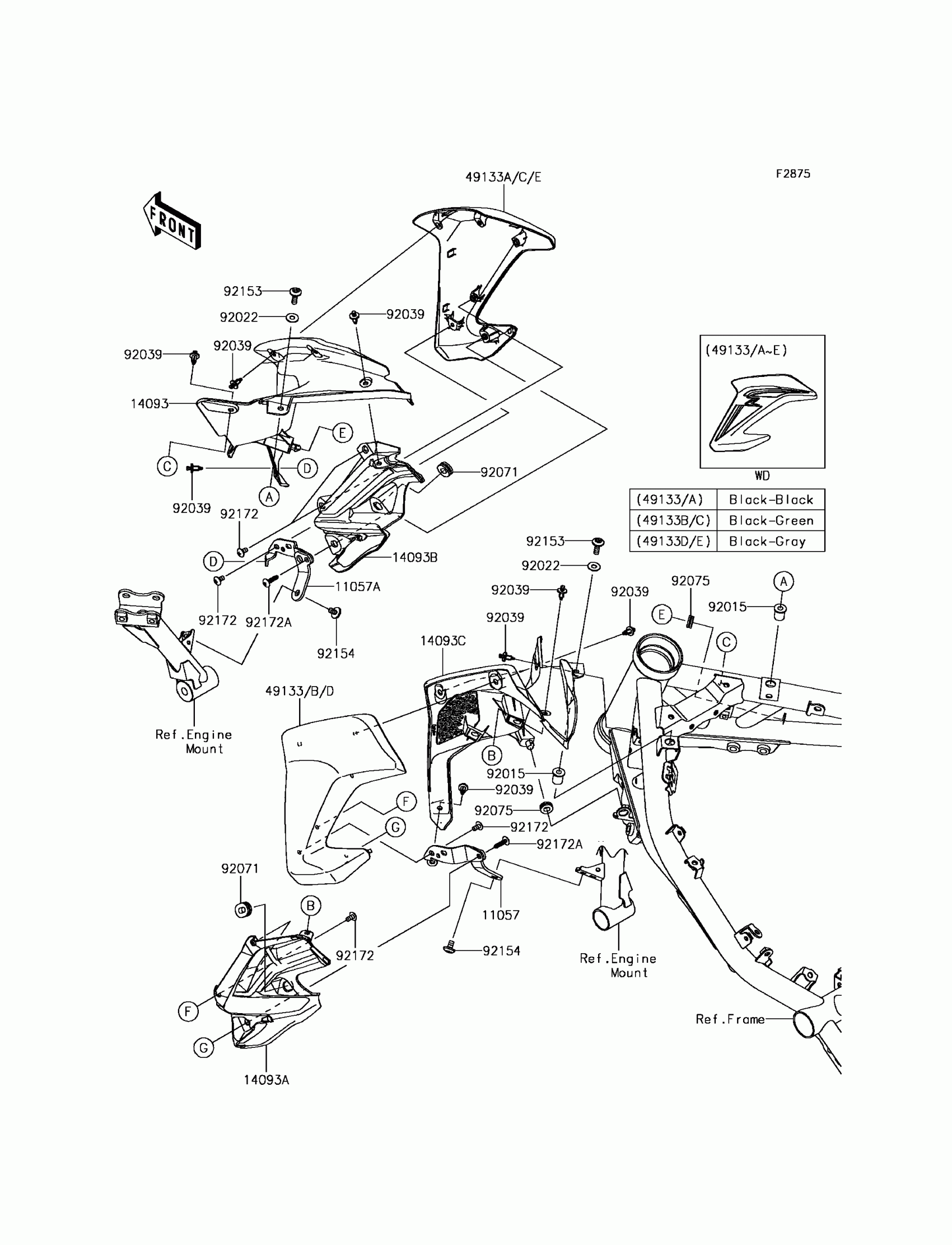

Find the part on the Shroud diagram for your 2017 Kawasaki Z900 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Kawasaki Z900 ABS Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,SHROUD,LH

11057-0254

1

$17.53

In stock

11057A

BRACKET,SHROUD,RH

11057-0255

1

$17.53

In stock

14093

COVER,INNER,RH,FR

14093-0506

1

$36.53

In stock

14093A

COVER,INNER,LH,RR

14093-0507

1

$19.71

In stock

14093B

COVER,INNER,RH,RR

14093-0508

1

$19.71

In stock

14093C

COVER,INNER,LH,FR

14093-0638

1

$36.53

In stock

49133

SHROUD,LH,M.S.BLACK

49133-5269-660

1

$222.30

In stock

49133A

SHROUD,RH,M.S.BLACK

49133-5270-660

1

$222.30

In stock

49133D

SHROUD,LH,M.S.BLACK

49133-5273-660

1

$222.30

In stock

49133E

SHROUD,RH,M.S.BLACK

49133-5274-660

1

$222.30

In stock

92015

NUT

92015-1700

1

$6.82

In stock

92022

WASHER,6.5X16X1.0

92022-1654

1

$2.92

In stock

92039

RIVET

92039-0068

1

$2.42

In stock

92071

GROMMET,11X23X7

92071-0762

1

$1.27

In stock

92075

DAMPER

92075-161

1

$3.72

In stock

92153

BOLT,6X18

92153-0816

1
Out of stock

92154

BOLT,SOCKET,6X10

92154-2667

1

$1.10

In stock

92172

SCREW,5X10

92172-0864

1

$1.20

In stock

92172A

SCREW,TAPPING,5X20

92172-1159

1

$1.27

In stock

49133B

SHROUD,LH,M.S.BLACK

49133-5271-660

1
Out of stock

49133C

SHROUD,RH,M.S.BLACK

49133-5272-660

1

$206.41

In stock
