2017 Kawasaki Z900 ABS Radiator Diagram

← All diagrams

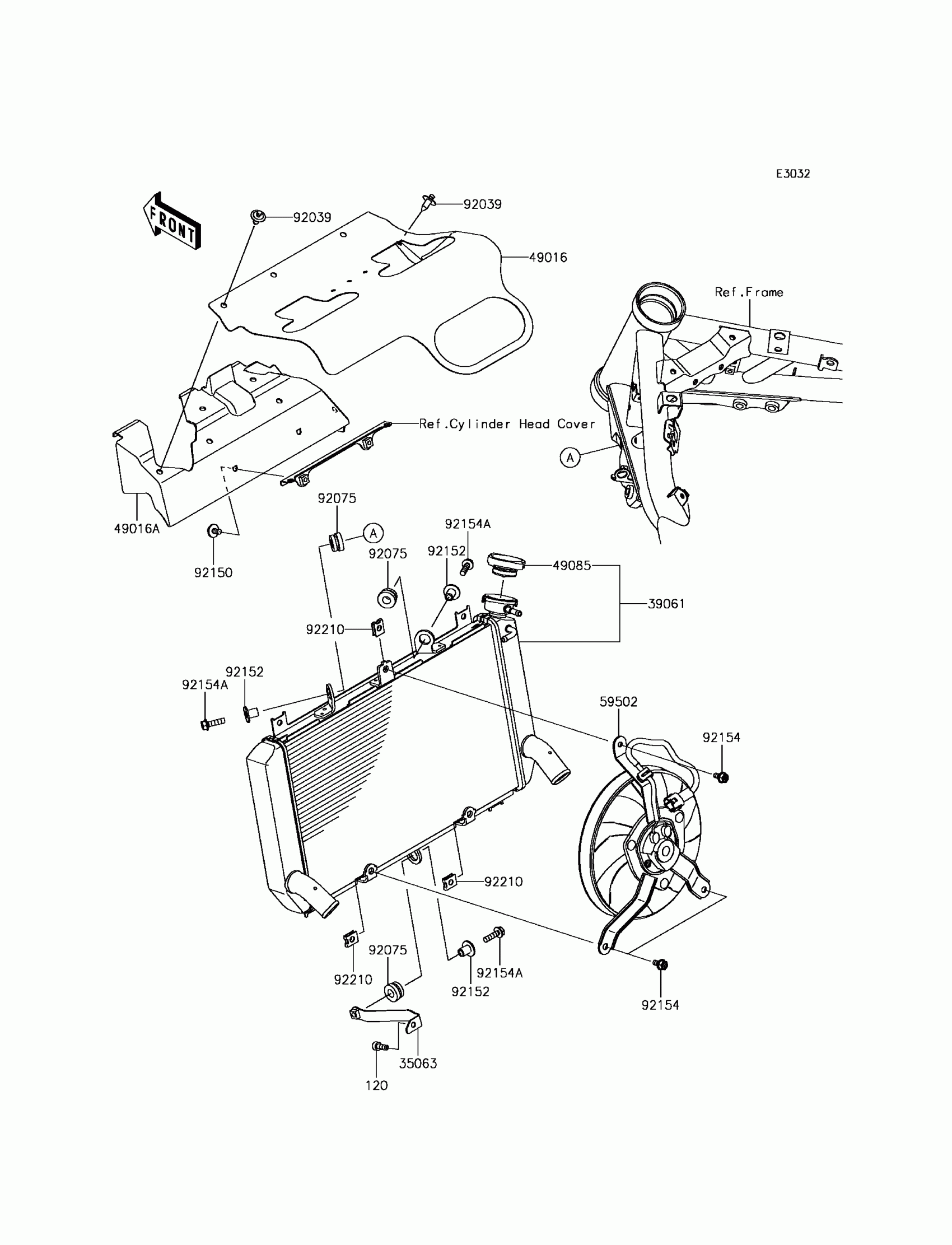

Find the part on the Radiator diagram for your 2017 Kawasaki Z900 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Kawasaki Z900 ABS Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X16

120CA0616

1

$2.05

In stock

35063

STAY

35063-1364

1

$4.42

In stock

39061

RADIATOR-ASSY

39061-0745

1

$847.01

In stock

49016

COVER-SEAL,HEAT

49016-0638

1

$54.55

In stock

49016A

COVER-SEAL,HEAT

49016-0639

1

$26.39

In stock

49085

CAP-ASSY-PRESSURE

49085-0006

1

$45.73

In stock

59502

FAN-ASSY

59502-0614

1

$810.90

In stock

92039

RIVET

92039-1289

1

$2.29

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92150

BOLT,6X12

92150-1891

1

$3.53

In stock

92152

COLLAR

92152-0667

1

$5.87

In stock

92154

BOLT

92154-1429

1

$3.75

In stock

92154A

BOLT,FLANGED,6X22

92154-2673

1

$2.46

In stock

92210

NUT

92210-1323

1
Out of stock
