2019 Kawasaki Z900 ABS Seat Cover Diagram

← All diagrams

Find the part on the Seat Cover diagram for your 2019 Kawasaki Z900 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

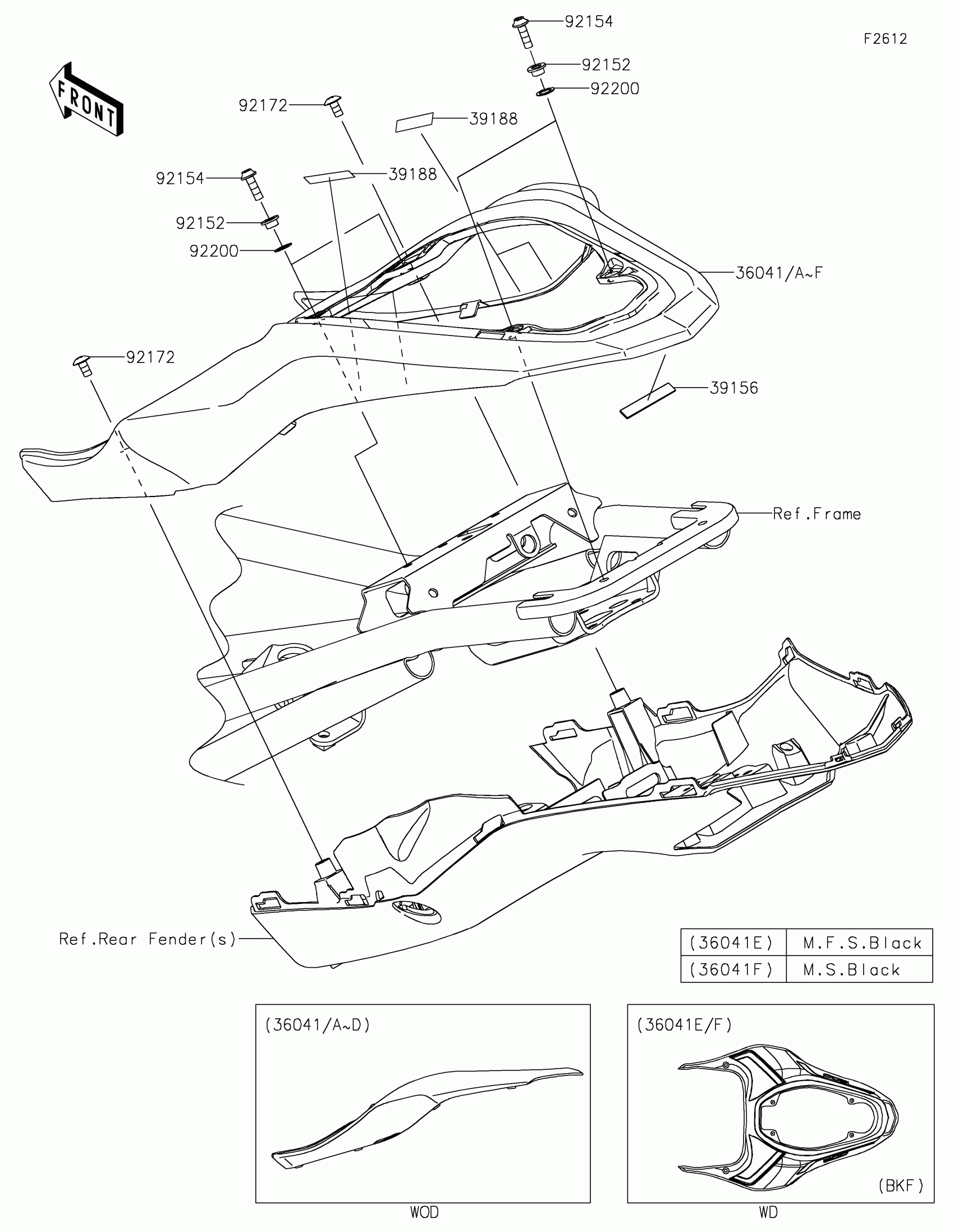

2019 Kawasaki Z900 ABS Seat Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36041

COVER-TAIL,M.M.GRAY,WOD

36041-5264-25X

1

$216.58

In stock

36041E

COVER-TAIL,M.F.S.BLACK

36041-5354-739

1

$413.51

In stock

36041F

COVER-TAIL,M.S.BLACK

36041-5360-660

1
Out of stock

39156

PAD,7X44X1

39156-2181

1

$0.69

In stock

39188

TAPE,8X35

39188-0564

1

$1.27

In stock

92152

COLLAR,5.6X8X5

92152-2339

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1

$2.25

In stock

92172

SCREW,5X10

92172-1194

1

$1.20

In stock

92200

WASHER,8.2X12X0.5

92200-1887

1
Out of stock
