2017 Kawasaki Z900 ABS Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2017 Kawasaki Z900 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

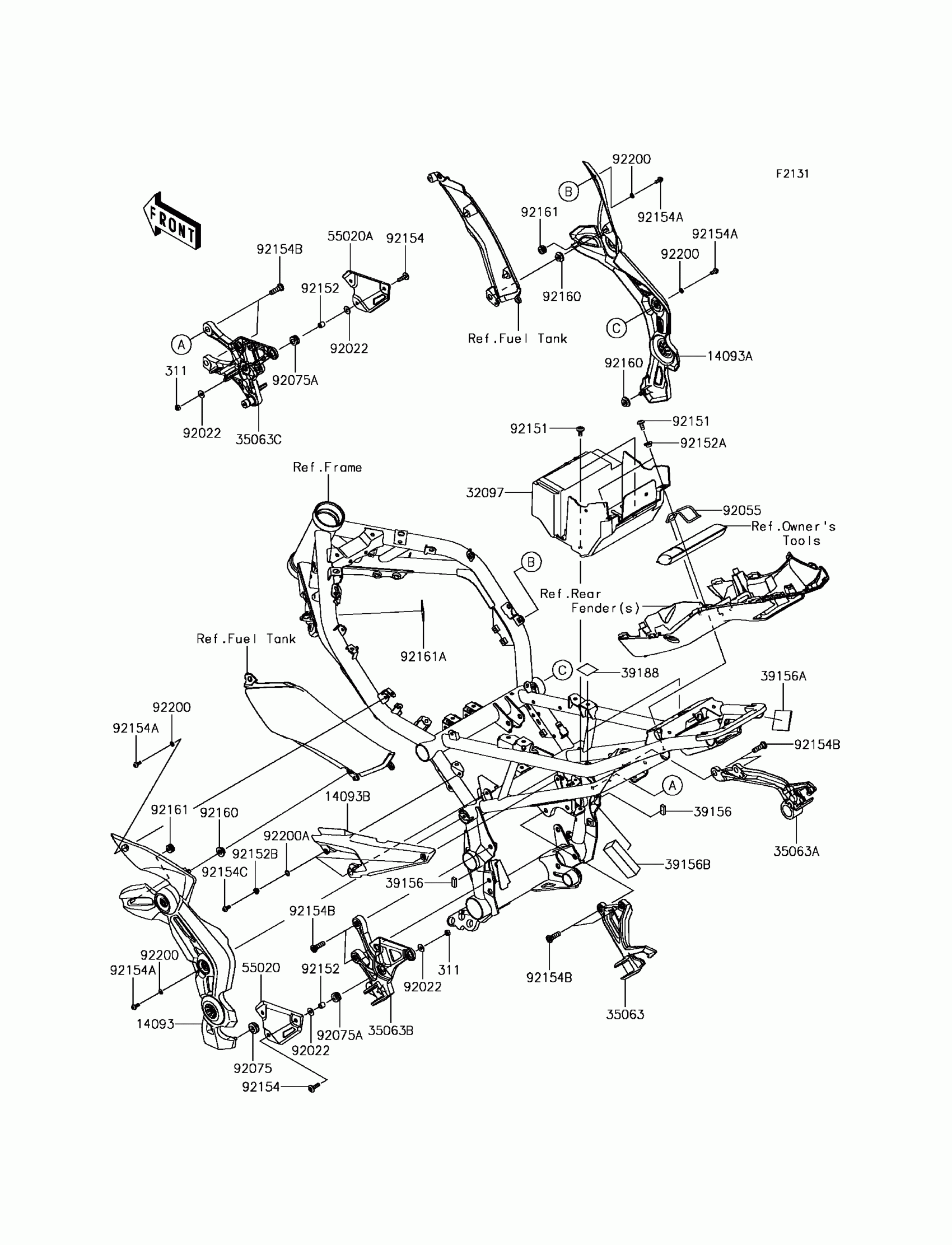

2017 Kawasaki Z900 ABS Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

311

NUT-HEX,6MM

311AA0600

1
Out of stock

14093

COVER,PIVOT,LH,B.SILVER

14093-0509-54N

1
Out of stock

14093A

COVER,PIVOT,RH,B.SILVER

14093-0510-54N

1
Out of stock

14093B

COVER,HARNESS,LH

14093-0511

1
Out of stock

32097

CASE-BATTERY

32097-0045

1
Out of stock

35063

STAY,STEP,RR,LH,F.S.BLACK

35063-1362-18R

1
Out of stock

35063A

STAY,STEP,RR,RH,F.S.BLACK

35063-1363-18R

1
Out of stock

35063B

STAY,STEP,FR,LH,F.S.BLACK

35063-1399-18R

1
Out of stock

35063C

STAY,STEP,FR,RH,F.S.BLACK

35063-1400-18R

1
Out of stock

39156

PAD,8X20X5

39156-2176

1
Out of stock

39156A

PAD,40X60X2

39156-2177

1
Out of stock

39156B

PAD,25X80X20

39156-2217

1
Out of stock

39188

TAPE,30X30

39188-0566

1
Out of stock

55020

GUARD,HEEL,LH

55020-1962

1
Out of stock

55020A

GUARD,HEEL,RH

55020-1963

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1093

1
Out of stock

92055

RING-O,62.6X3.5

92055-0873

1
Out of stock

92075

DAMPER

92075-1067

1
Out of stock

92075A

DAMPER

92075-1409

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92152

COLLAR,6.3X9.5X9.2

92152-2280

1
Out of stock

92152A

COLLAR,6.5X10X6.4

92152-2287

1
Out of stock

92152B

COLLAR,5.7X8.5X4.5

92152-2354

1
Out of stock

92154

BOLT,SOCKET,6X20

92154-0918

1
Out of stock

92154A

BOLT,SOCKET,5X12

92154-1421

1
Out of stock

92154B

BOLT,SOCKET,8X28

92154-2334

1
Out of stock

92154C

BOLT,SOCKET,5X12,MEC

92154-2678

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER

92161-0864

1
Out of stock

92161A

DAMPER,25X40,T1.0

92161-1432

1
Out of stock

92200

WASHER,5.2X10X0.5

92200-1730

1
Out of stock

92200A

WASHER,8.8X11.5X0.5

92200-1888

1
Out of stock
