Description

Price

13272

PLATE

13272-4452

$49.70

32046

BRACKET-SEAT

32046-0498

$52.84

53003

LEATHER,BLACK

53003-0715-MA

$76.11

53003A

LEATHER,RR SEAT,BLACK

53003-0716-MA

$68.10

53066

SEAT-ASSY,FR,LOW,BLACK

53066-0936-MA

$188.22

53066A

SEAT-ASSY,RR,BLACK+BLK

53066-0938-12Y

$166.75

92075

DAMPER

92075-277

$2.84

92152

COLLAR

92152-2616

$3.04

92154

BOLT,FLANGED,6X20

92154-0776

$2.32

92161

DAMPER,SEAT BRACKET,FR

92161-1865

$2.70

92161A

DAMPER,20X90X15

92161-1867

$5.88

92161B

DAMPER,12X28X21

92161-1913

$4.41

92161C

DAMPER,14X30X22

92161-1969

$7.34

92161D

DAMPER,14X30X14.5

92161-1970

$7.43

92161E

DAMPER

92161-2250

$1.37

92161F

DAMPER

92161-2308

$1.83

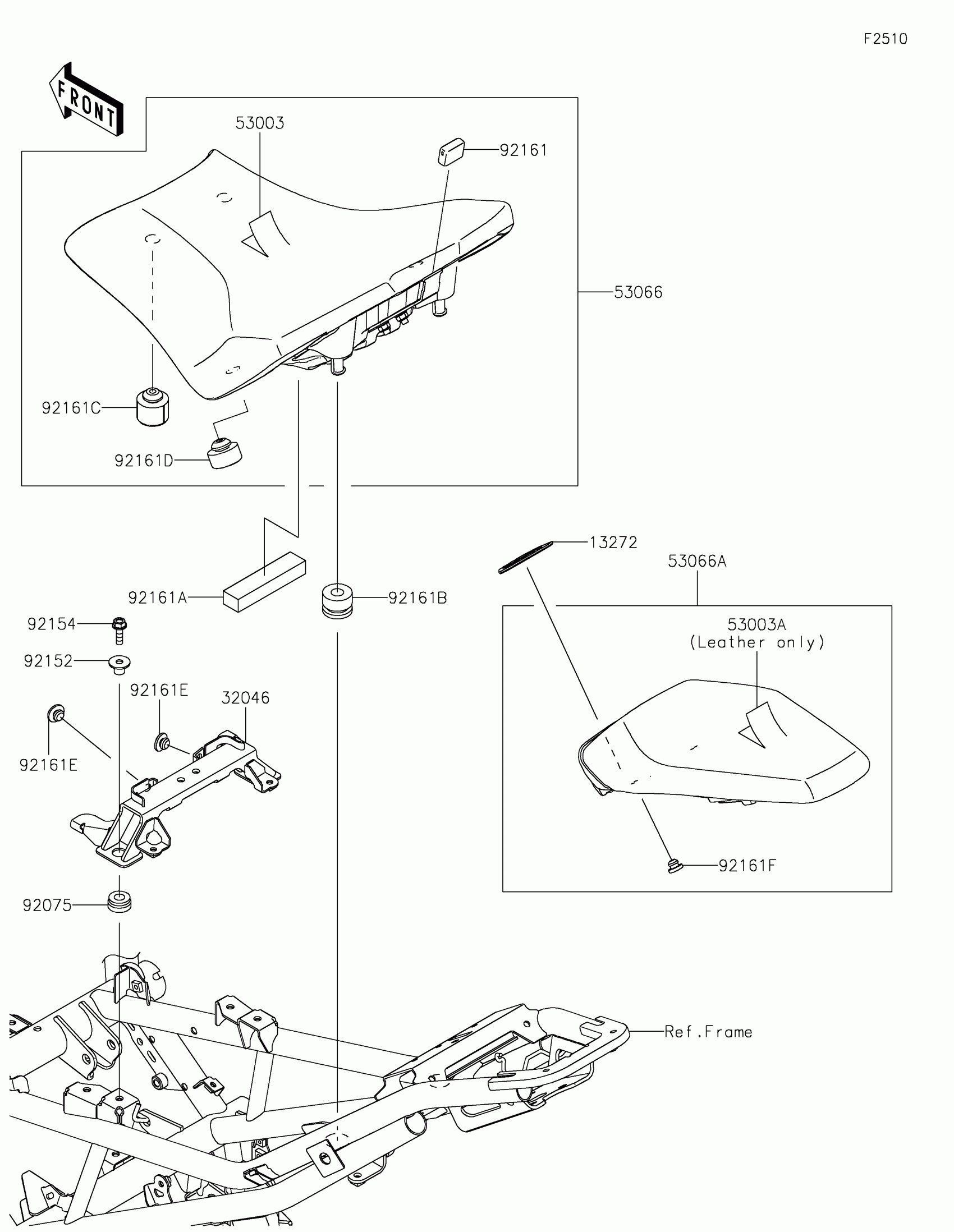

Kawasaki Z900 ABS Seat Diagram

PLATE

BRACKET-SEAT

LEATHER,BLACK

LEATHER,RR SEAT,BLACK

SEAT-ASSY,FR,LOW,BLACK

SEAT-ASSY,RR,BLACK+BLK

DAMPER

COLLAR

BOLT,FLANGED,6X20

DAMPER,SEAT BRACKET,FR

DAMPER,20X90X15

DAMPER,12X28X21

DAMPER,14X30X22

DAMPER,14X30X14.5

DAMPER

DAMPER
