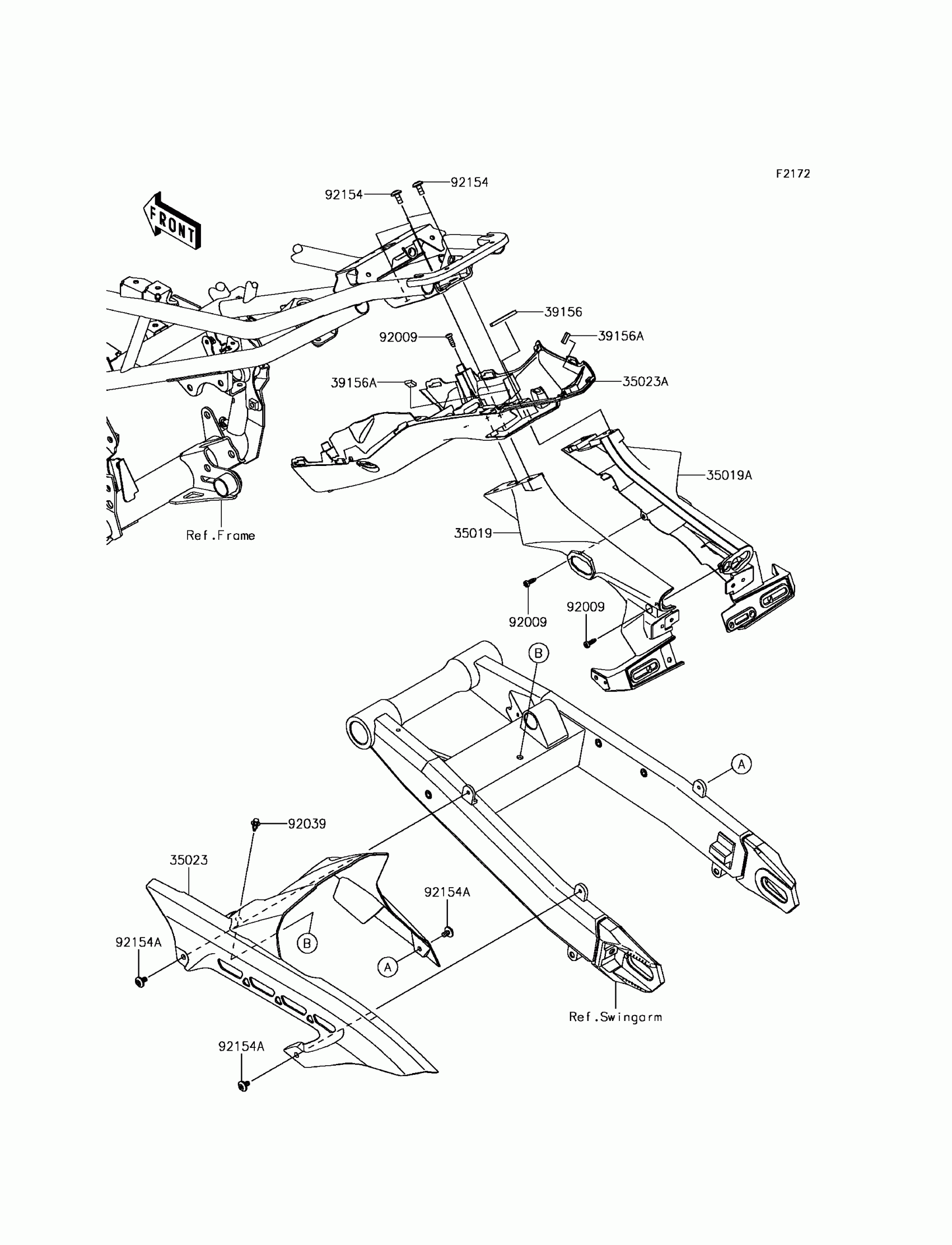

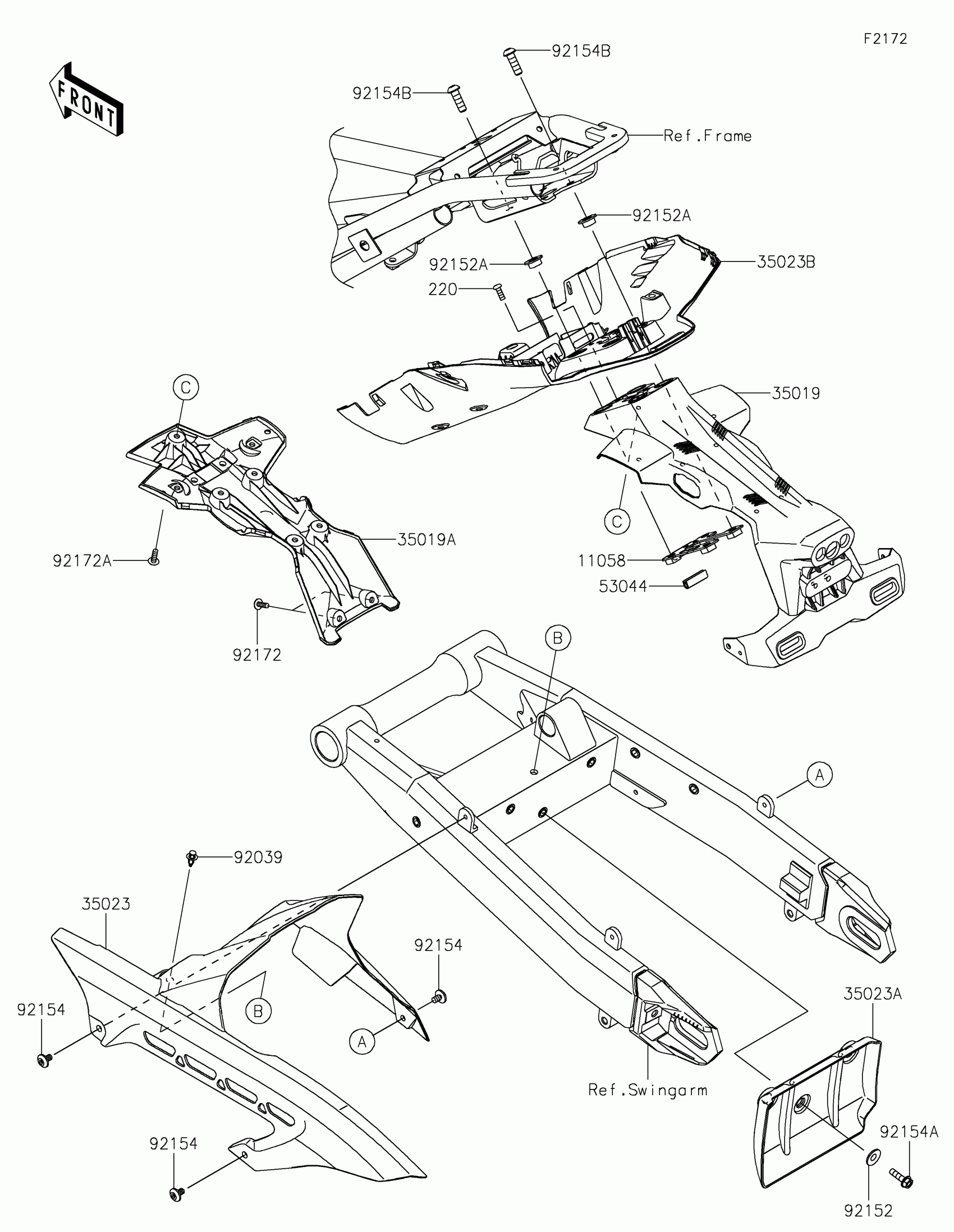

Kawasaki Z900 ABS Rear Fender(s) Diagram

Description

Price

11058

BRACKET,FLAP

11058-1601

$10.14

35019

FLAP,UPP

35019-0702

$47.40

35019A

FLAP,LWR

35019-0703

$32.85

35023

FENDER-REAR,INNER

35023-0421

$54.29

35023A

FENDER-REAR,INNER,LWR

35023-0432

$34.64

35023B

FENDER-REAR

35023-0511

$38.09

53044

TRIM,9X6.5X30

53044-0632

$4.45

92039

RIVET

92039-0086

$5.54

92152

COLLAR,6.8X20X4.6

92152-2432

$4.69

92152A

COLLAR

92152-2959

$9.95

92154

BOLT,SOCKET,6X10

92154-2667

$1.17

92154A

BOLT,FLANGED,6X22

92154-4287

$3.86

92154B

BOLT,SOCKET,8X25

92154-4432

$3.74

92172

SCREW,TAPPING,5X14

92172-0265

$1.34

92172A

SCREW,TAPPING,5X16

92172-1685

$2.33

220

SCREW-PAN-CROS,5X14

220AB0514

$1.81
