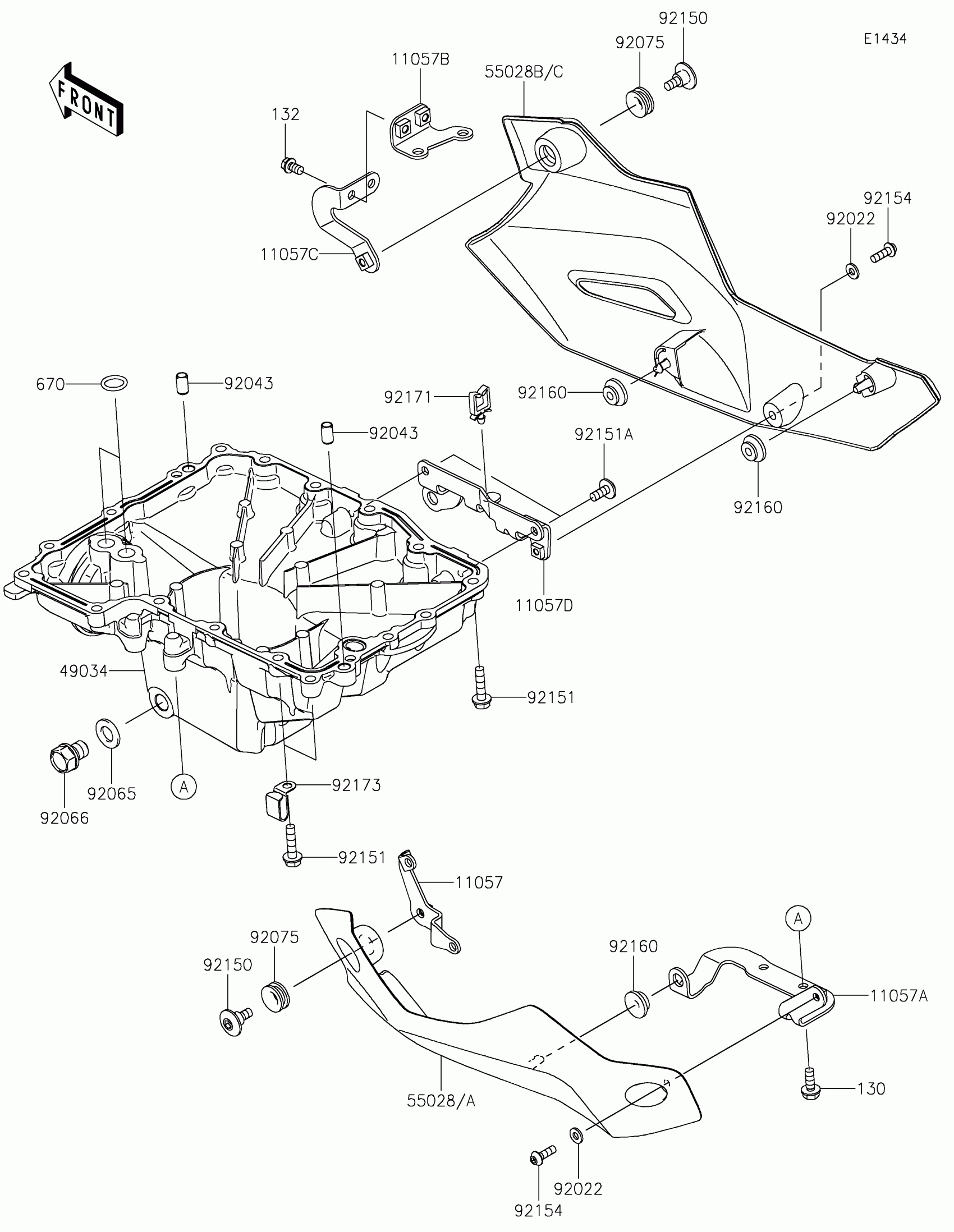

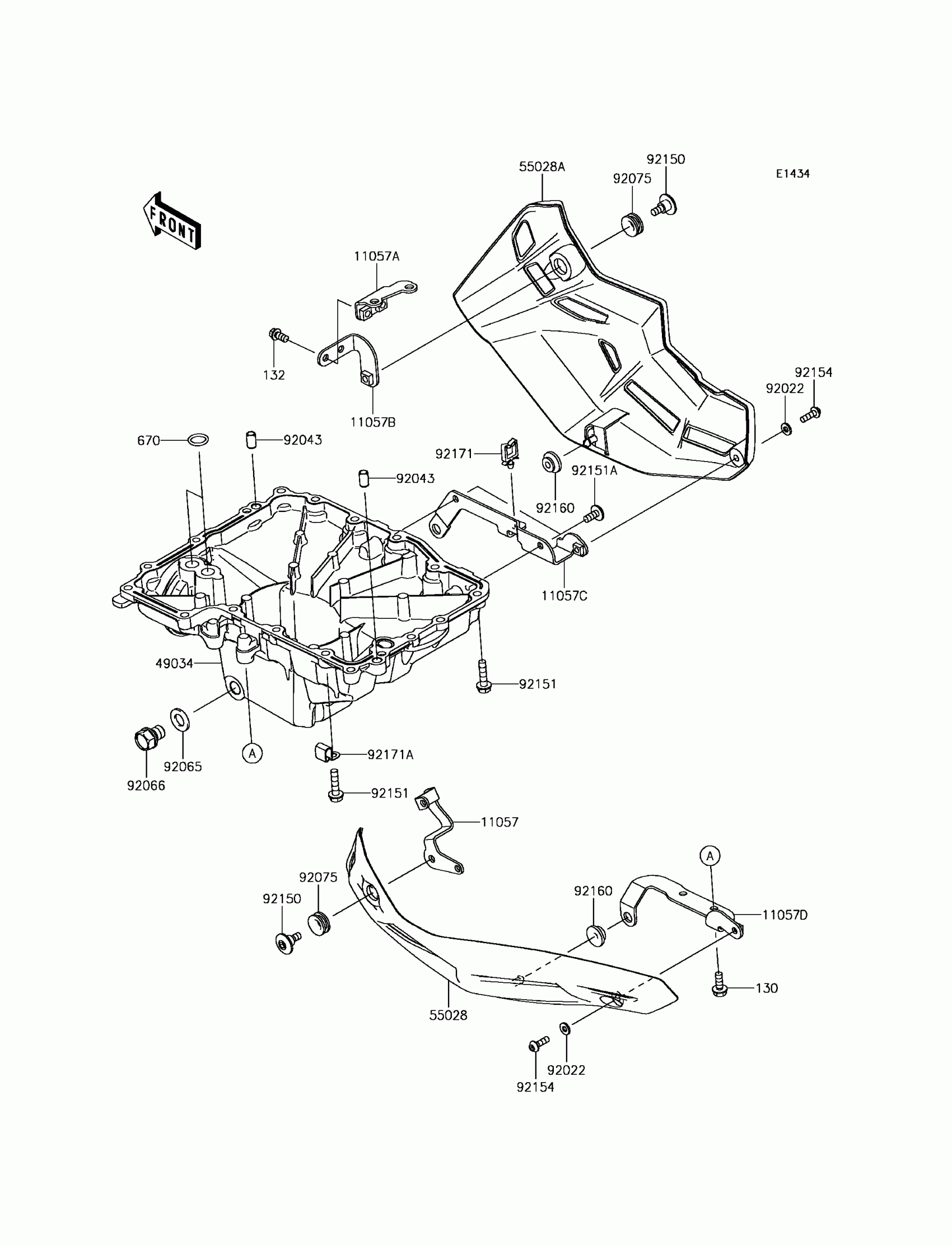

Kawasaki Z900 ABS Oil Pan Diagram
#
Description
Price
11057
BRACKET,FR,LH
11057-2705
$4.85
11057A
BRACKET,OIL PAN,LH
11057-2706
$7.51
11057B
BRACKET,CRANKCASE
11057-2707
$5.57
11057C
BRACKET,FR,RH
11057-2708
$5.57
11057D
BRACKET,OIL PAN,RH
11057-2709
$9.00
49034
PAN-OIL
49034-0578
$218.99
55028
COWLING,LWR,LH,M.S.BLACK
55028-0708-660
$157.17
55028B
COWLING,LWR,RH,M.S.BLACK
55028-0709-660
$157.17
92022
WASHER,NYLON,5.3X11.5X1.5
92022-1521
$3.92
92043
PIN,6.2X8X14
92043-1263
$0.43
92065
GASKET,12X22X2
92065-097
$0.74
92066
PLUG,12X15
92066-0079
$6.02
92075
DAMPER
92075-1634
$4.69
92150
BOLT,SOCKET,6MM
92150-1154
$7.84
92151
BOLT,FLANGED,6X25
92151-1225
$2.46
92151A
BOLT,SOCKET,6X14
92151-1654
$1.83
92154
BOLT,SOCKET,5X16
92154-0287
$2.41
92160
DAMPER
92160-1613
$3.74
92171
CLAMP
92171-0290
$3.73
92173
CLAMP
92173-0082
$6.22
130
BOLT-FLANGED,6X16
130CC0616
$1.94
132
BOLT-FLANGED-SMALL
132BC0610
$1.97
670
O RING,14MM
670D2014
$5.52
