2017 Kawasaki Z900 ABS Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2017 Kawasaki Z900 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

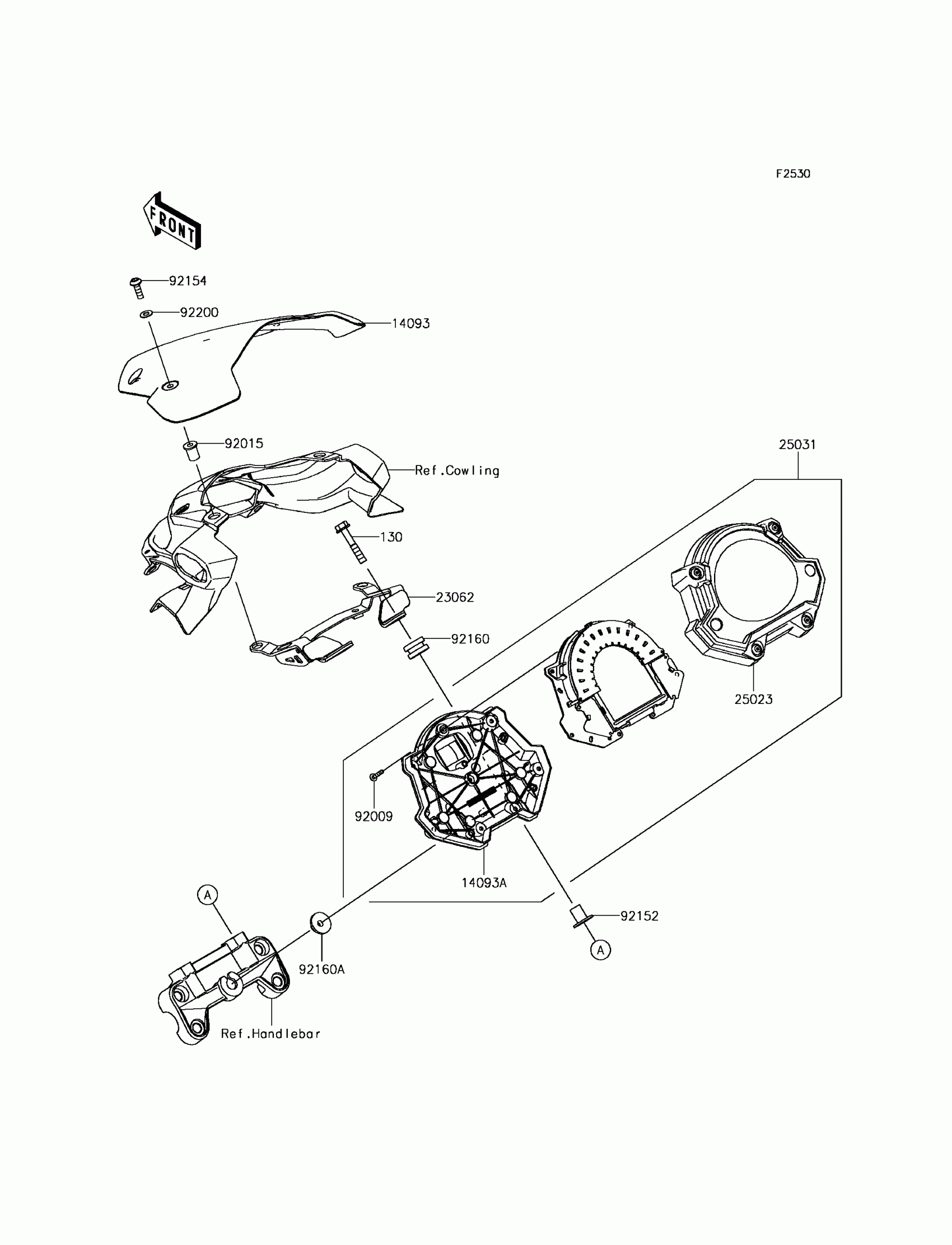

2017 Kawasaki Z900 ABS Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X35

130BB0635

1

$4.90

In stock

14093

COVER,METER

14093-0512

1

$57.71

In stock

14093A

COVER,LWR CASE

14093-0526

1

$122.82

In stock

23062

BRACKET-COMP

23062-0928

1

$29.50

In stock

25023

COVER-METER CASE

25023-0128

1

$222.31

In stock

25031

1

$934.29

In stock

92009

SCREW,TAPPING,3X16

92009-1391

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92152

COLLAR

92152-0604

1

$6.90

In stock

92154

BOLT,SOCKET,5X16

92154-0026

1

$2.10

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92160A

DAMPER

92160-1613

1

$2.97

In stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock
