2017 Kawasaki Z900 ABS Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2017 Kawasaki Z900 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

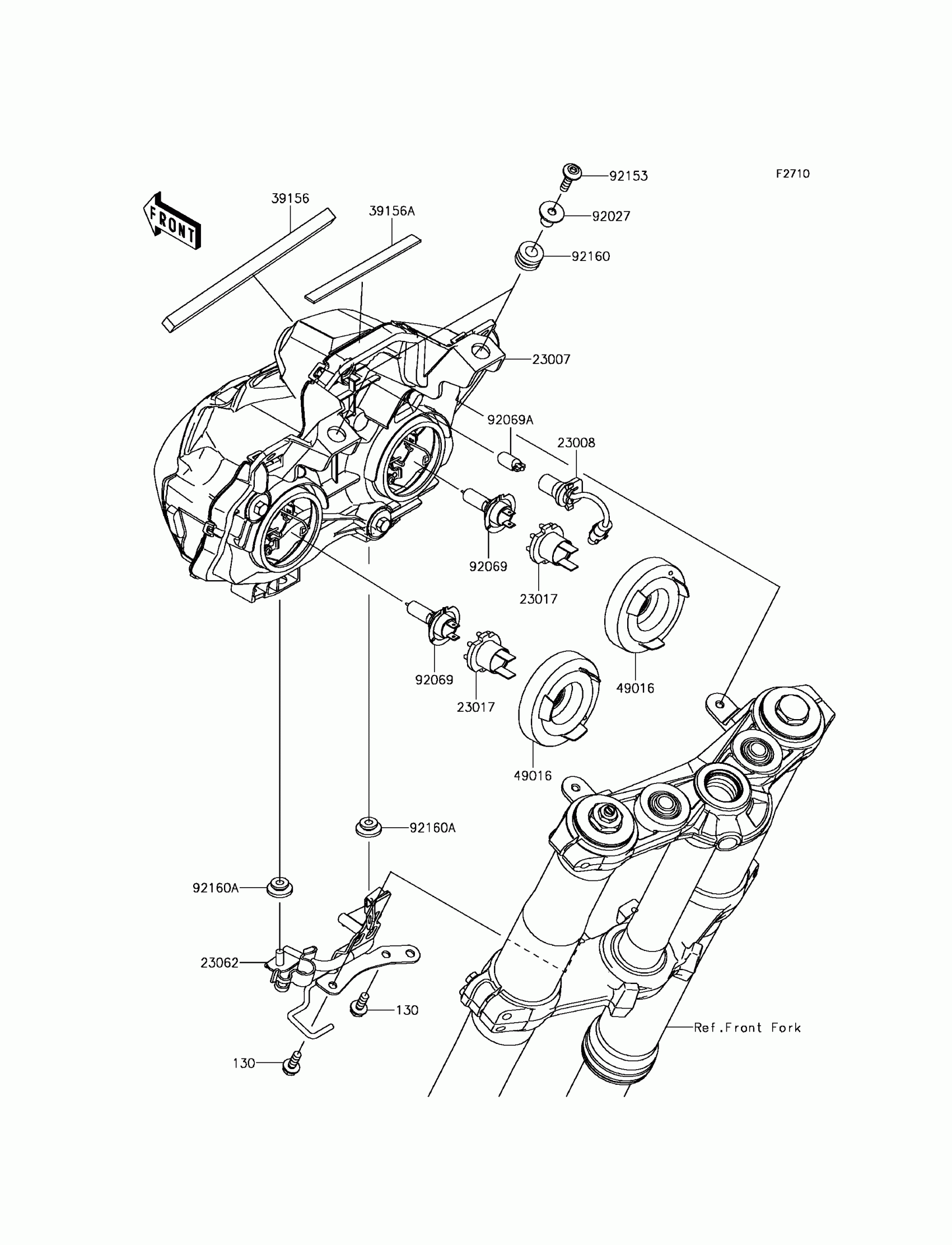

2017 Kawasaki Z900 ABS Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130BB0616

1

$1.73

In stock

23007

LENS-COMP

23007-0210

1

$586.30

In stock

23008

SOCKET-ASSY

23008-0181

1

$84.48

In stock

23017

SOCKET,HEAD LAMP

23017-1067

1

$92.23

In stock

23062

BRACKET-COMP

23062-0958

1

$48.42

In stock

39156

PAD,10X190X10

39156-2156

1

$1.34

In stock

39156A

PAD,10X120X2

39156-2196

1

$0.95

In stock

49016

COVER-SEAL

49016-0642

1

$16.14

In stock

92027

COLLAR,L=14.1

92027-1920

1

$5.45

In stock

92069

BULB,12V 55W,H7

92069-0053

1

$39.00

In stock

92069A

BULB,12V 5W

92069-1016

1

$5.16

In stock

92153

BOLT,SOCKET,6X22

92153-0574

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92160A

DAMPER

92160-1613

1

$2.97

In stock
