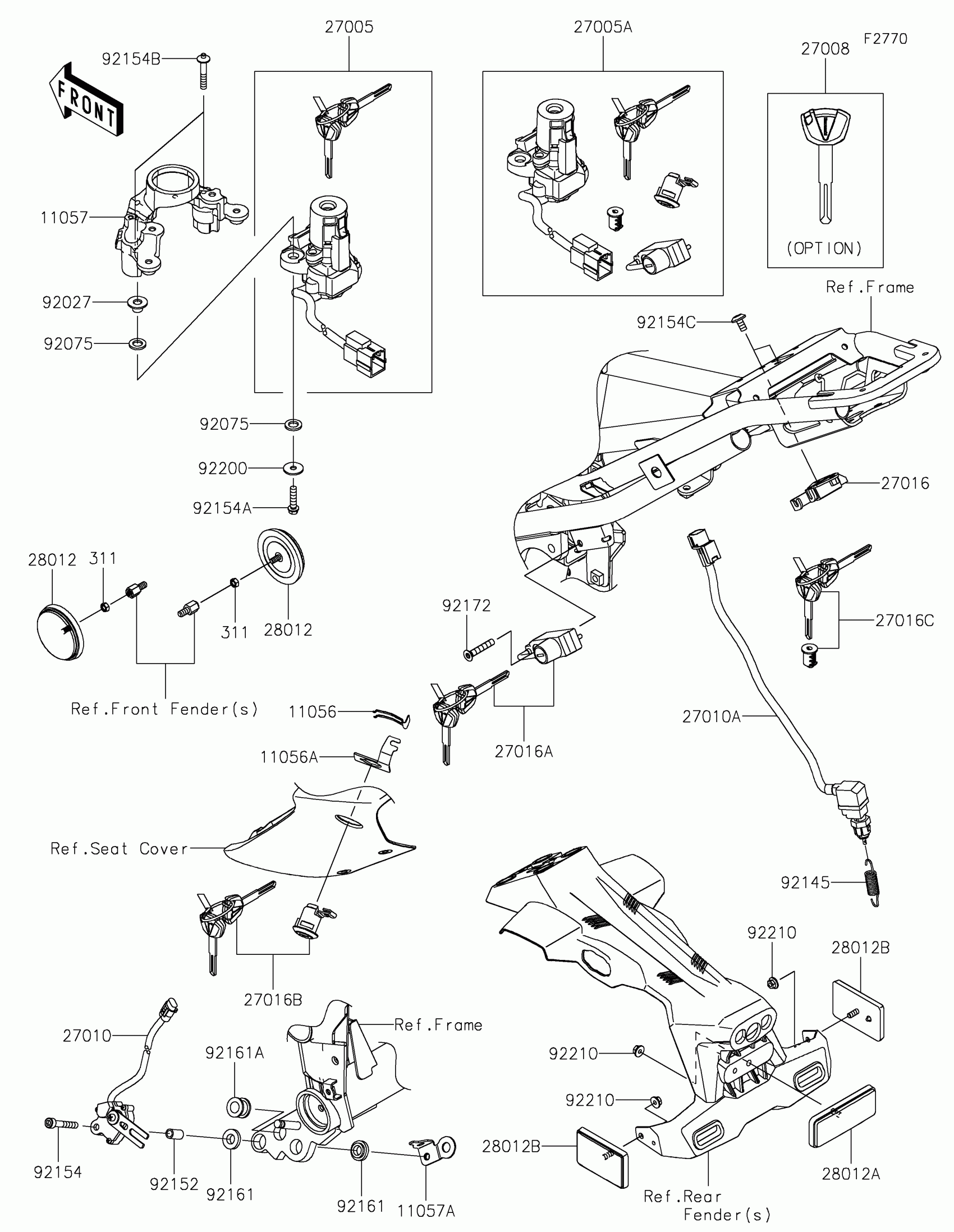

Kawasaki Z900 ABS Ignition Switch/Locks/Reflectors Diagram

Description

Price

311

NUT-HEX,5MM

311AB0500

$0.43

11056

BRACKET,CLASP

11056-0238

$6.00

11056A

BRACKET,SEAT LOCK

11056-2119

$4.41

11057

BRACKET,IG. SWITCH

11057-0251

$69.76

11057A

BRACKET

11057-0319

$1.42

21007

ROTOR,LOCK,TANK CAP

21007-5077

$123.53

27005

SWITCH-ASSY-IGNITION

27005-0613

$179.84

27008

KEY-LOCK,BLANK

27008-0596

$21.89

27010

SWITCH,SIDE STAND

27010-0722

$115.66

27010A

SWITCH,REAR BRAKE

27010-0847

$33.01

27016

LOCK-ASSY,SEAT STRIKER

27016-0008

$14.90

27016A

LOCK-ASSY,SEAT

27016-5386

$90.37

27048

SWITCH-ASSY

27048-5095

$490.05

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$24.14

28012A

REFLECTOR-REFLEX

28012-1077

$23.25

28012B

REFLECTOR-REFLEX

28012-1088

$22.46

92027

COLLAR

92027-1045

$5.52

92075

DAMPER

92075-1564

$5.48

92145

SPRING,REAR BRAKE

92145-0946

$5.01

92152

COLLAR,6.5X9.5X17

92152-2274

$2.44

92154

BOLT,SOCKET,6X40

92154-0505

$1.63

92154A

BOLT,FLANGED,6X25

92154-2154

$3.02

92154B

BOLT,E TYPE TORX,6X35

92154-2207

$3.57

92154C

BOLT,SOCKET,6X12

92154-2355

$1.94

92161

DAMPER

92161-0117

$2.90

92161A

DAMPER

92161-0118

$2.90

92200

WASHER,6X20X1.6

92200-0780

$1.19

92210

NUT,FLANGED,5MM

92210-0007

$2.70
