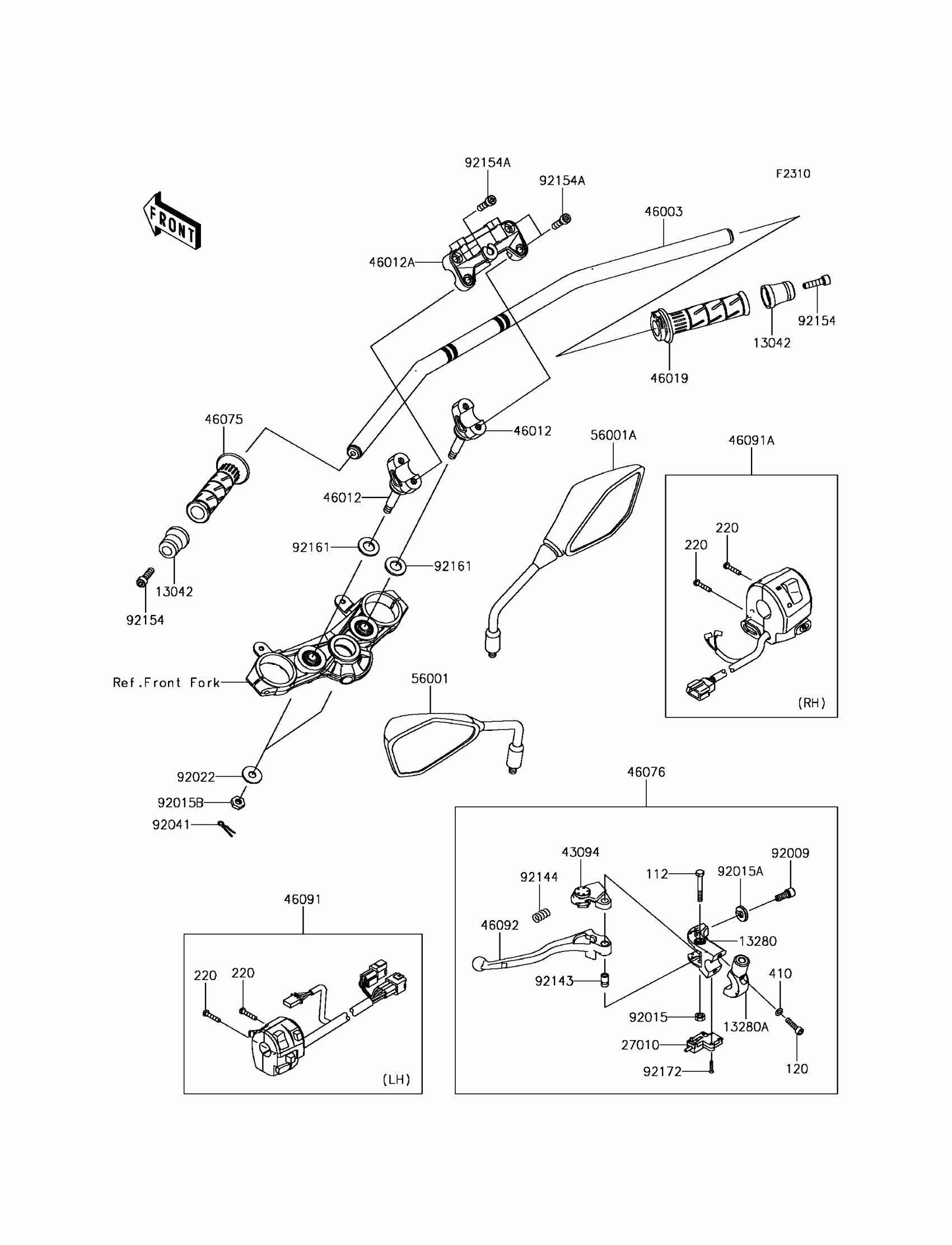

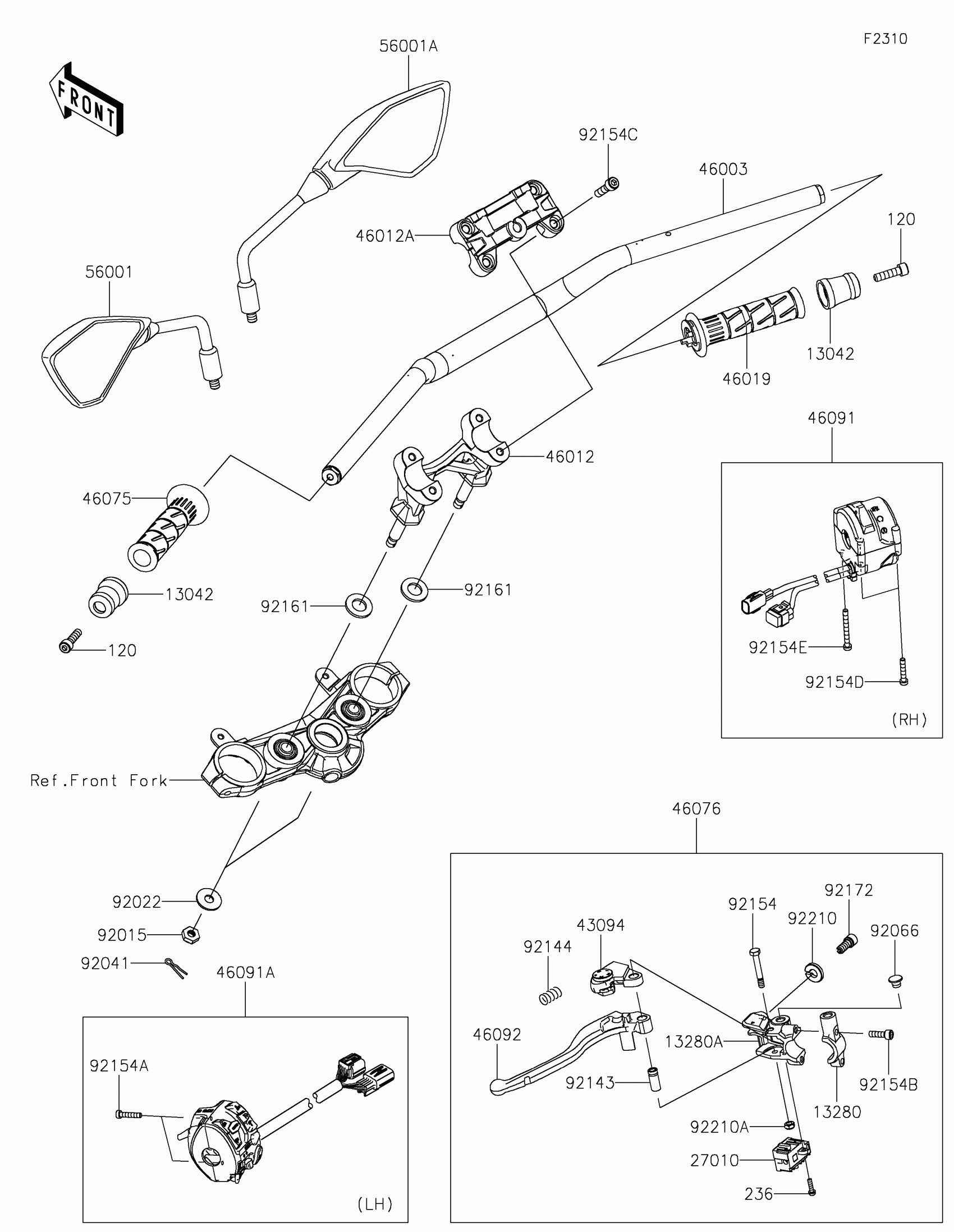

Kawasaki Z900 ABS Handlebar Diagram

#

Description
Price

112

BOLT-UPSET,6X45

112BB0645

$3.29

120

BOLT-SOCKET,6X25

120CB0625

$1.81

220

SCREW-PAN-CROS,5X25

220AB0525

$2.66

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.68

13042

WEIGHT,HANDLE

13042-0741

$40.07

13280

HOLDER,CLUTCH LEVER

13280-0306

$47.37

13280A

HOLDER,CLUTCH LEVER

13280-0307

$32.56

27010

SWITCH,CLUTCH

27010-0849

$25.31

43094

ADJUSTER

43094-0009

$40.53

46003

HANDLE,F.S.BLACK

46003-0673-18R

$184.40

46012

HOLDER-HANDLE,LWR,F.S.BLACK

46012-0376-18R

$66.12

46012A

HOLDER-HANDLE,UPP,F.S.BLACK

46012-0377-18R

$74.12

46019

GRIP-ASSY,THROTTLE

46019-0060

$29.02

46075

GRIP,HANDLE,LH

46075-0564

$16.11

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0122

$98.38

46091

HOUSING-ASSY-CONTROL,LH

46091-0344

$188.61

46091A

HOUSING-ASSY-CONTROL,RH

46091-0345

$146.70

46092

LEVER-GRIP,CLUTCH

46092-0569

$20.78

56001

MIRROR-ASSY,LH

56001-0299

$69.91

56001A

MIRROR-ASSY,RH

56001-0300

$79.98

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92015B

NUT,LOCK,10MM

92015-1962

$4.59

92022

WASHER,10.2X28X2

92022-1088

$3.57

92041

COTTER,8MM

92041-1060

$3.15

92143

COLLAR

92143-1379

$7.25

92144

SPRING

92144-1467

$4.88

92154

BOLT,SOCKET,8X30

92154-0440

$2.84

92154A

BOLT,SOCKET,8X30

92154-2683

$2.82

92161

DAMPER

92161-0037

$1.36

92172

SCREW,3X16

92172-0183

$1.57
