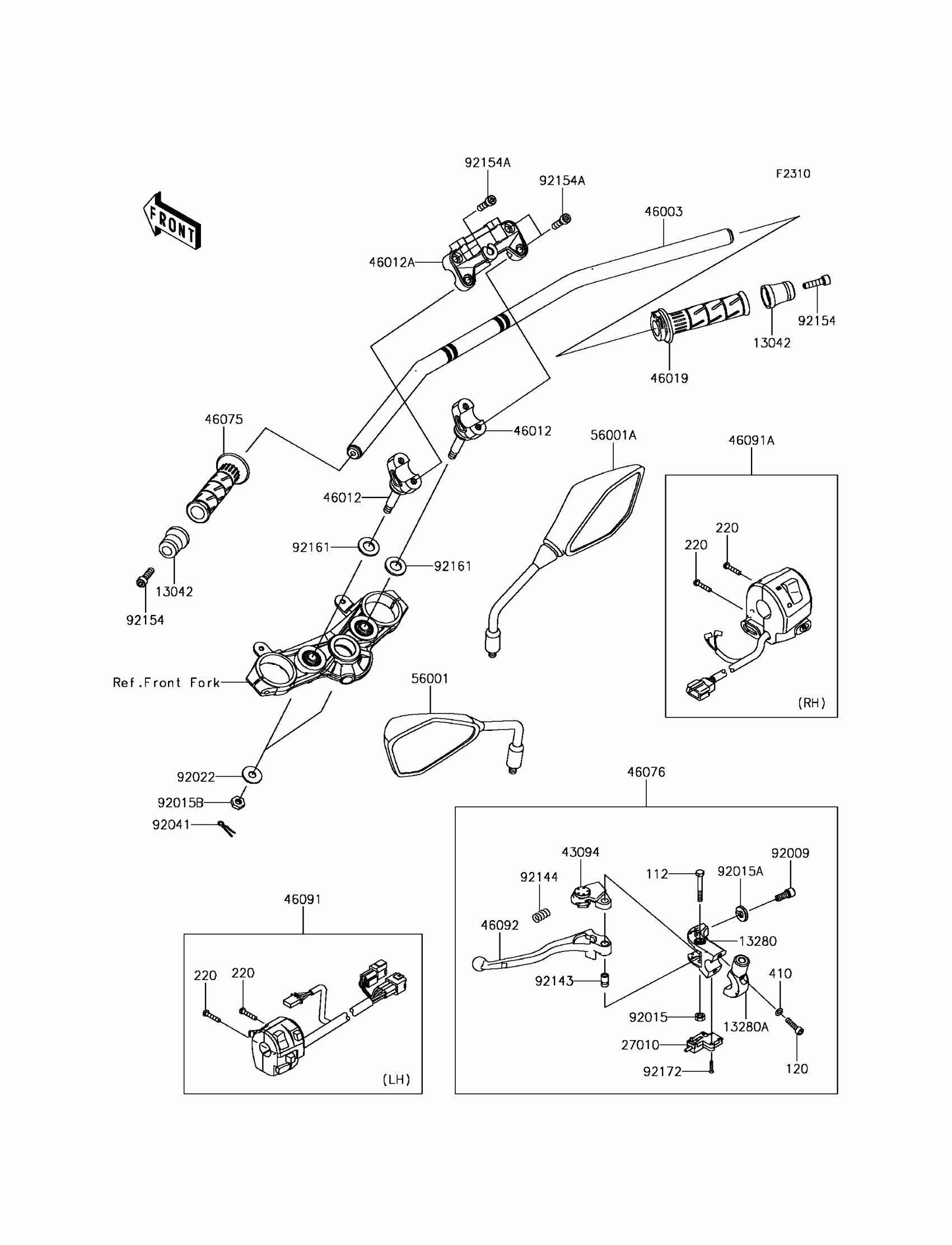

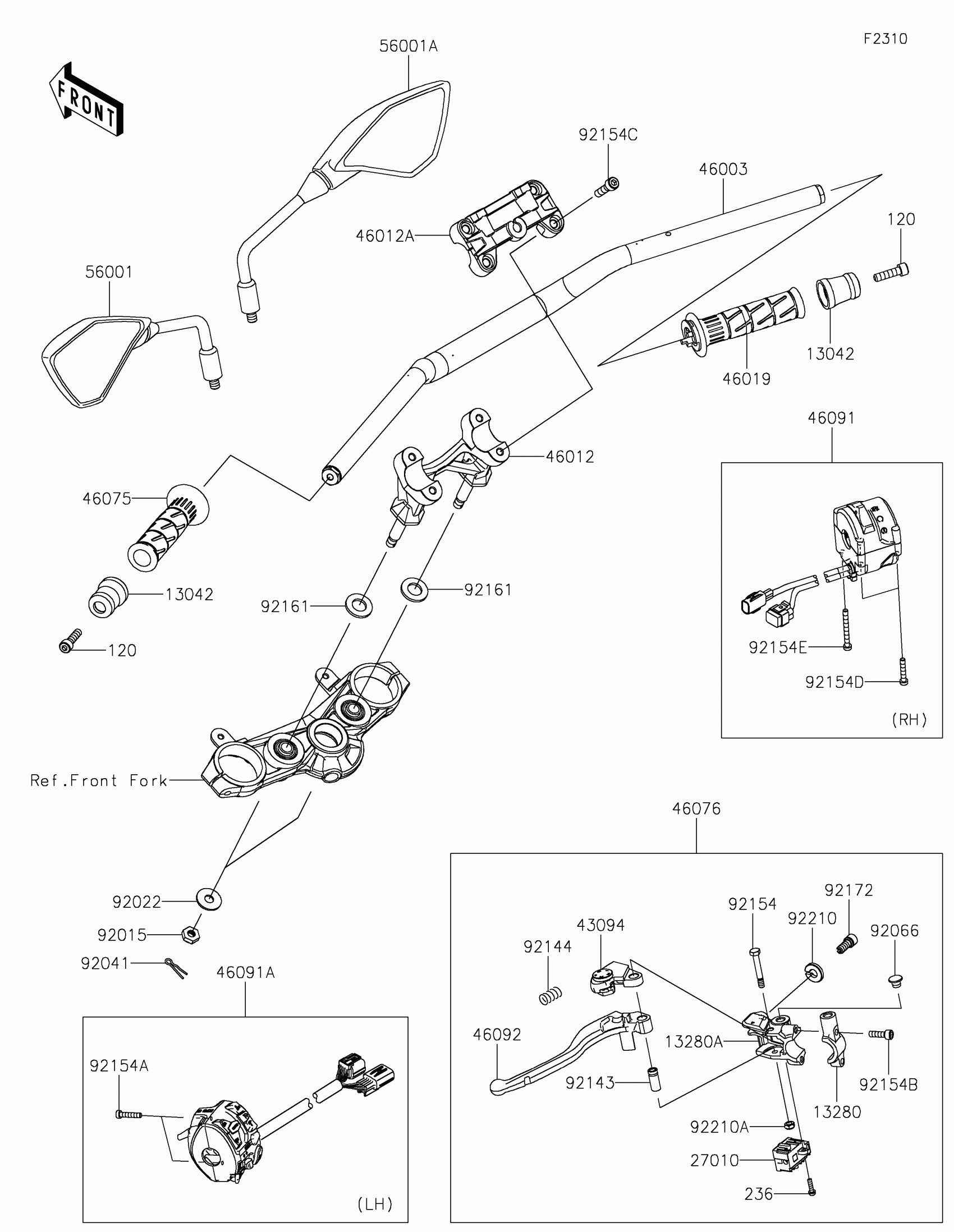

Kawasaki Z900 ABS Handlebar Diagram
#
Description
Price
13042
WEIGHT,HANDLE
13042-5024
$34.84
13280
HOLDER,CLUTCH LEVER
13280-0772
$29.60
13280A
HOLDER
13280-0926
$51.40
27010
SWITCH,CLUTCH
27010-0925
$59.39
43094
ADJUSTER
43094-0008
$36.12
46003
HANDLE,FAT BAR
46003-0848
$351.83
46012
HOLDER-HANDLE,LWR,F.S.BLACK
46012-0429-18R
$169.53
46012A
HOLDER-HANDLE,UPP,F.S.BLACK
46012-0432-18R
$76.78
46019
GRIP-ASSY,THROTTLE
46019-0080
$38.18
46075
GRIP,HANDLE,LH
46075-0564
$20.01
46076
LEVER-ASSY-GRIP,CLUTCH
46076-0201
$92.96
46091
HOUSING-ASSY-CONTROL,RH
46091-0659
$236.40
46091A
HOUSING-ASSY-CONTROL,LH
46091-0660
$421.78
46092
LEVER-GRIP,CLUTCH
46092-0575
$19.70
56001
MIRROR-ASSY,LH
56001-0466
$75.81
56001A
MIRROR-ASSY,RH
56001-0467
$75.81
92015
NUT,LOCK,10MM
92015-1962
$6.11
92022
WASHER,10.2X28X2
92022-1088
$4.69
92041
COTTER,8MM
92041-1060
$3.57
92066
PLUG,9.5X8,POLYETHYLENE
92066-1077
$4.65
92143
COLLAR
92143-1379
$9.51
92144
SPRING
92144-1467
$6.51
92154
BOLT
92154-2318
$7.89
92154A
BOLT,SOCKET,5X25
92154-2596
$3.90
92154B
BOLT,SOCKET,6X20
92154-2644
$3.90
92154C
BOLT,SOCKET,8X30
92154-2683
$3.71
92154D
BOLT,5X30
92154-3921
$3.90
92154E
BOLT,5X50
92154-3922
$3.90
92161
DAMPER
92161-0037
$1.86
92172
SCREW
92172-1138
$6.63
92210
NUT
92210-1519
$10.37
92210A
NUT,LOCK,6MM
92210-1544
$3.57
120
BOLT-SOCKET,8X30
120CA0830
$2.80
236
SCREW-PAN-WSP-CROS
236AB0416
$10.26
