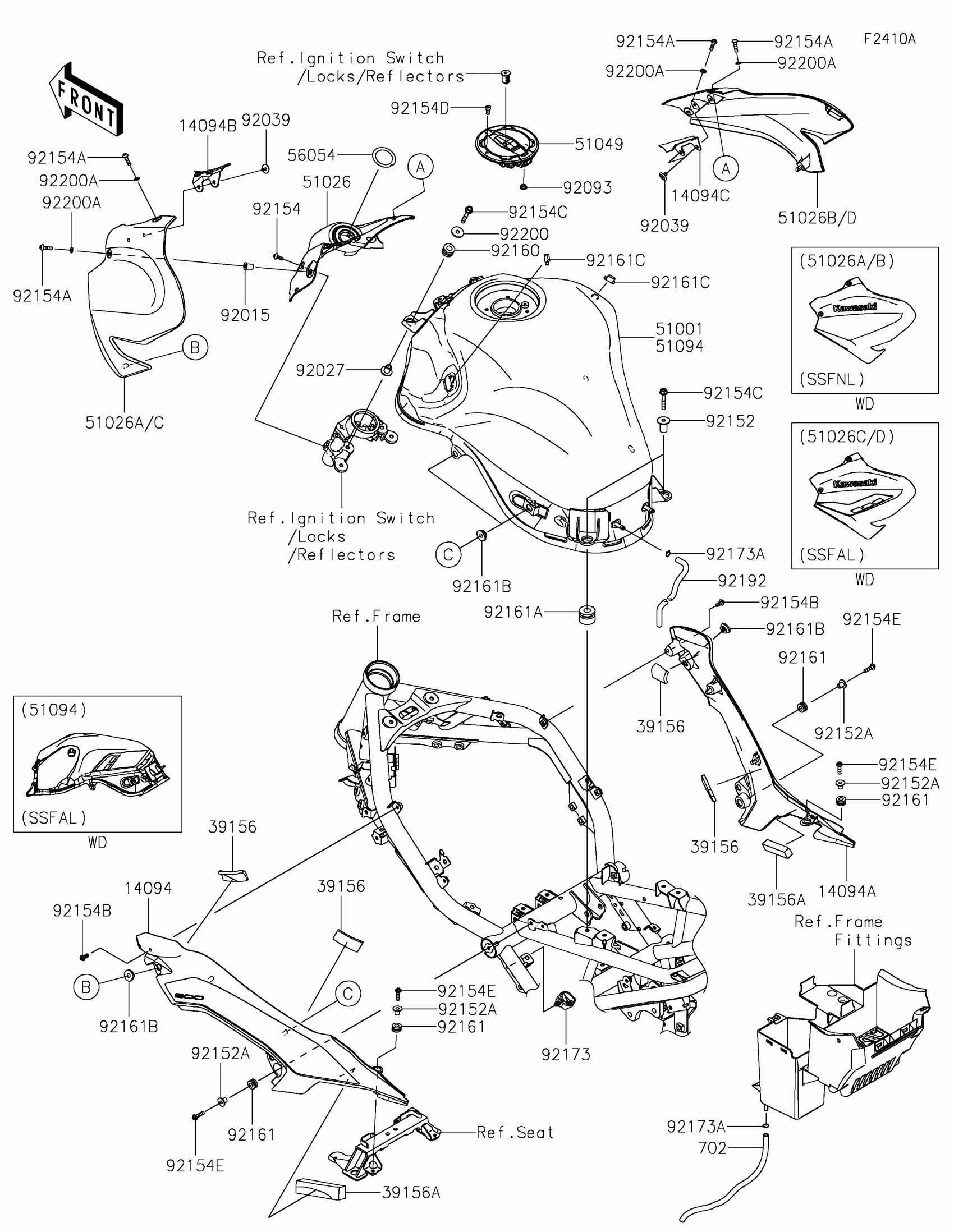

Kawasaki Z900 ABS Fuel Tank(CA) Diagram
#
Description
Price
14094
COVER,KNEE GRIP,LH
14094-0124
$50.21
14094A
COVER,KNEE GRIP,RH
14094-0125
$50.38
14094B
COVER,TANK ORNAMENT,LH
14094-0126
$30.61
14094C
COVER,TANK ORNAMENT,RH
14094-0127
$30.61
39156
PAD,20X50X5
39156-2191
$1.27
39156A
PAD,15X66X10
39156-2215
$2.10
51001
TANK-COMP-FUEL,M.C.GRAY
51001-0941-51A
$949.11
51026
COVER TANK,CNT
51026-0027
$34.77
51026A
COVER TANK,LH,M.S.BLACK
51026-5237-660
$196.20
51026B
COVER TANK,RH,M.S.BLACK
51026-5238-660
$196.20
51049
CAP-TANK,FUEL
51049-0756
$136.31
56054
MARK,IG. SWITCH
56054-2963
$16.77
92015
NUT,WELL,5MM
92015-1757
$7.29
92027
COLLAR,6.5X10X14.1
92027-1183
$5.52
92039
RIVET
92039-0768
$2.75
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
92152
COLLAR,6.3X12X22.6
92152-2252
$3.44
92152A
COLLAR,5.6X8X11.2
92152-2342
$2.70
92154
BOLT,SOCKET,5X12
92154-0917
$4.72
92154A
BOLT,SOCKET,5X18
92154-1945
$1.71
92154B
BOLT,SOCKET,5X12
92154-4289
$0.95
92154C
BOLT-FLANGED,6X35
92154-4290
$0.95
92154D
BOLT-SOCKET,5X12
92154-4291
$1.57
92154E
BOLT,SOCKET,5X20
92154-4301
$2.12
92160
DAMPER,10X20X12
92160-1167
$4.69
92161
DAMPER,8X16X8.6
92161-0685
$6.61
92161A
DAMPER,12X28X21
92161-1468
$4.41
92161B
DAMPER
92161-1810
$1.19
92161C
DAMPER
92161-1917
$1.71
92173
CLAMP
92173-0861
$3.02
92173A
CLAMP,TUBE
92173-2442
$0.51
92192
TUBE,DRAIN
92192-2895
$6.38
92200
WASHER,6.5X22X1.6
92200-1087
$3.94
92200A
WASHER,5.2X10X1
92200-2286
$0.39
702
TUBE-RUBBER,6X9X330
702A06330
$3.74
