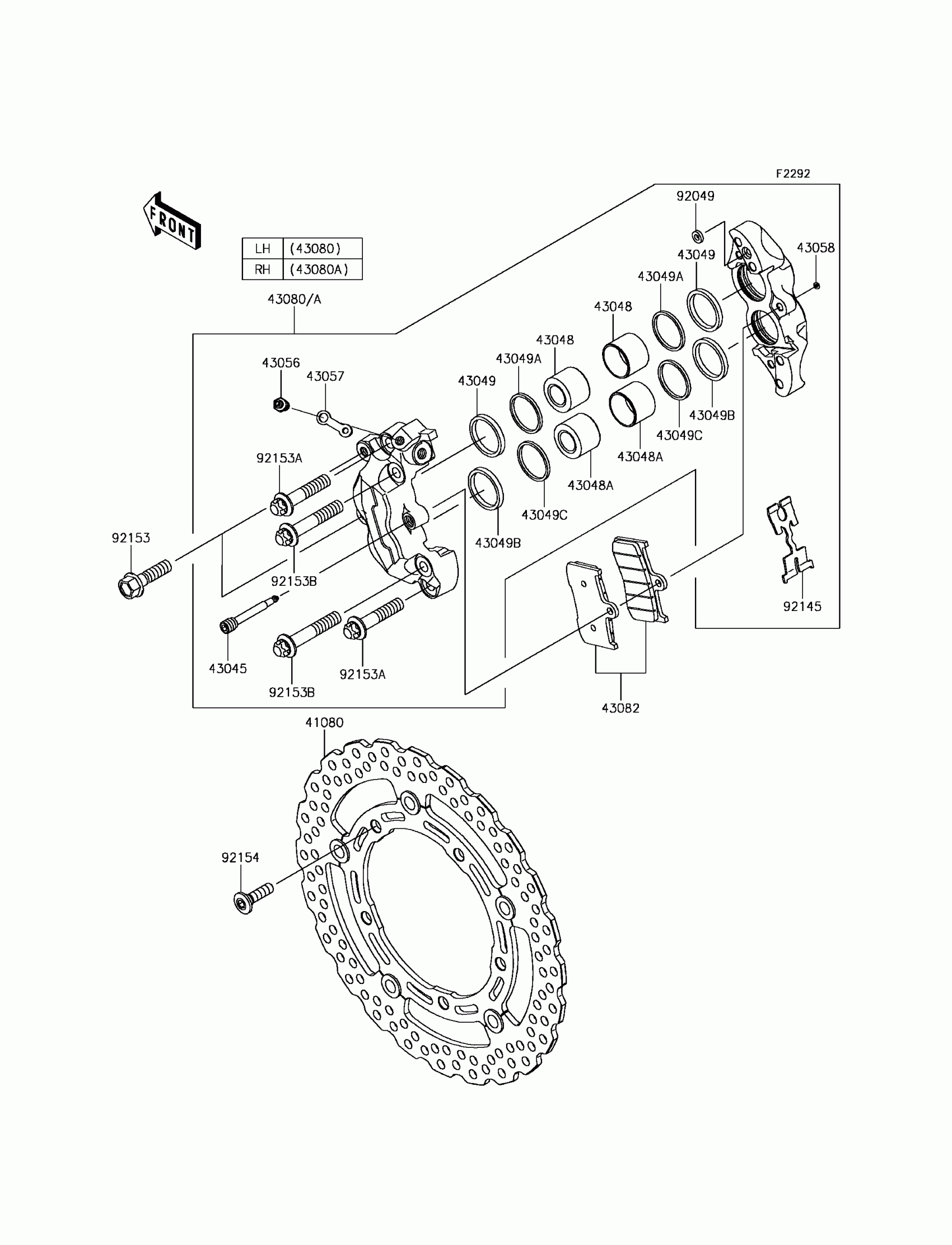

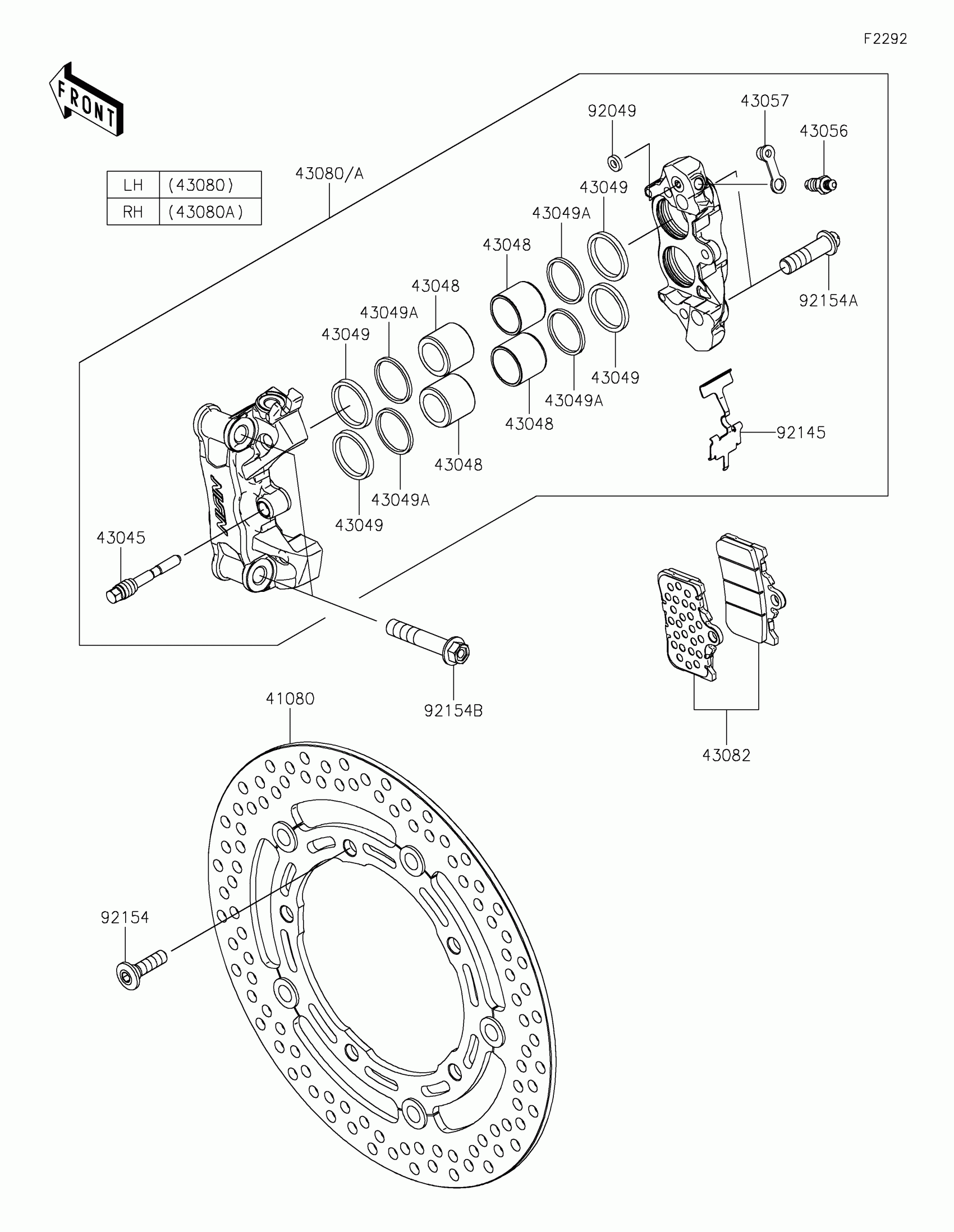

Kawasaki Z900 ABS Front Brake Diagram

Description

Price

41080

DISC,FR,BLACK+SIL

41080-0776-11I

$417.20

43045

SHAFT-CALIPER

43045-0020

$8.93

43048

PISTON-CALIPER

43048-0021

$38.44

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0248-DJ

$373.04

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0249-DJ

$373.04

43082

PAD-ASSY-BRAKE

43082-0222

$82.08

92049

SEAL-OIL

92049-1448

$3.92

92145

SPRING,PAD

92145-2445

$18.16

92154

BOLT,SOCKET,8X30

92154-0844

$4.10

92154A

BOLT,TORX,10X36

92154-7448

$6.05

92154B

BOLT,FLANGED,10X55

92154-7625

$11.35
