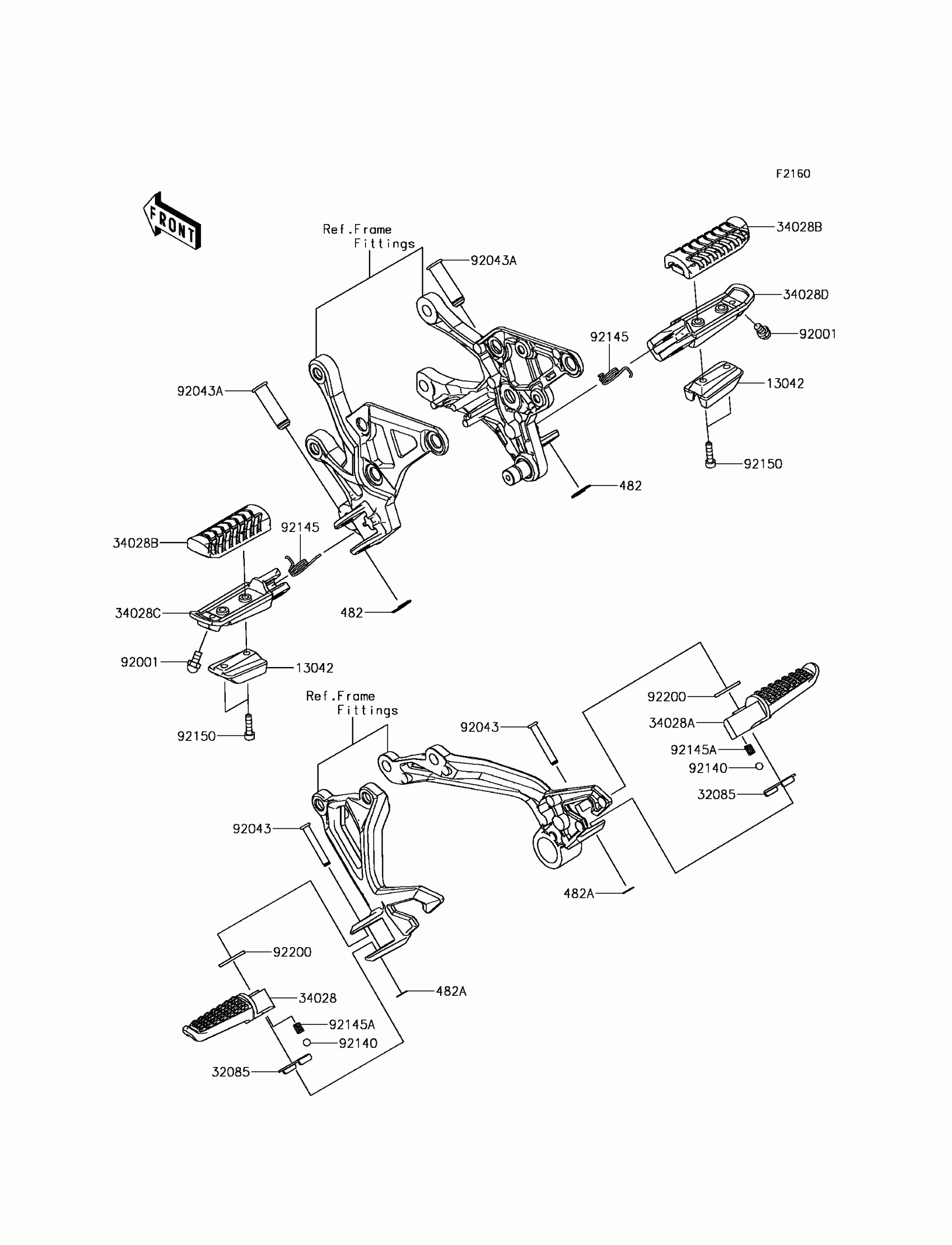

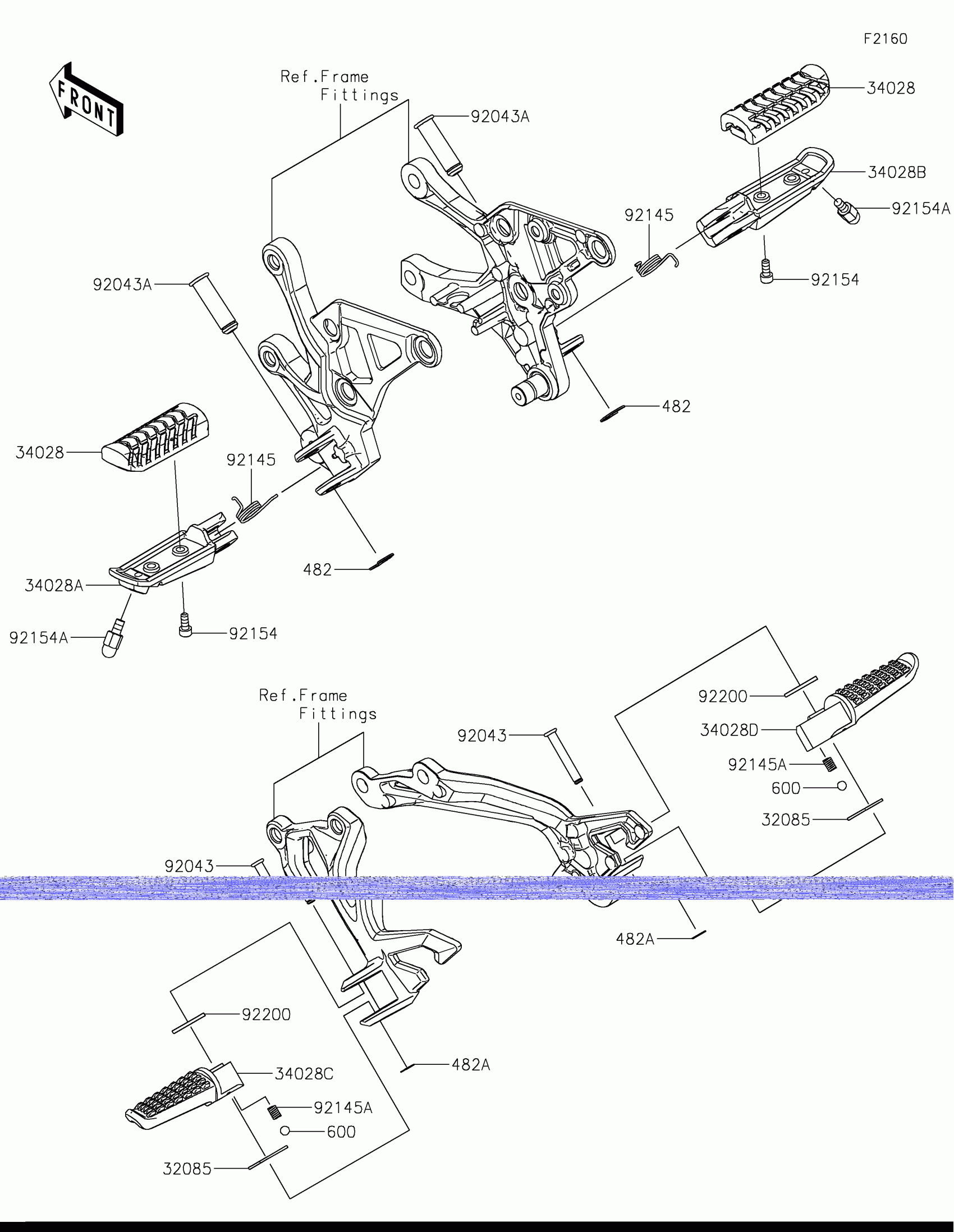

Kawasaki Z900 ABS Footrests Diagram

Description

Price

32085

STOPPER

32085-0801

$0.90

34028

STEP,RUBBER

34028-0349

$22.74

34028A

STEP,FR,LH

34028-0350

$36.60

34028B

STEP,FR,RH

34028-0351

$36.60

34028C

STEP,RR,LH

34028-0366

$70.40

34028D

STEP,RR,RH

34028-0367

$70.40

92043

PIN,6X40

92043-0200

$3.02

92043A

PIN,12X42.5

92043-1746

$6.00

92145

SPRING,STEP RETURN

92145-0723

$3.67

92145A

SPRING

92145-1319

$1.81

92154

BOLT,SOCKET,5X12

92154-0503

$1.63

92154A

BOLT,BANK SENSOR

92154-0838

$5.33

92200

WASHER,16X26X2.3

92200-0043

$7.65

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

482A

CIRCLIP-TYPE-E

482EA5000

$1.34

600

BALL-STEEL,1/4

600A0800

$0.62
